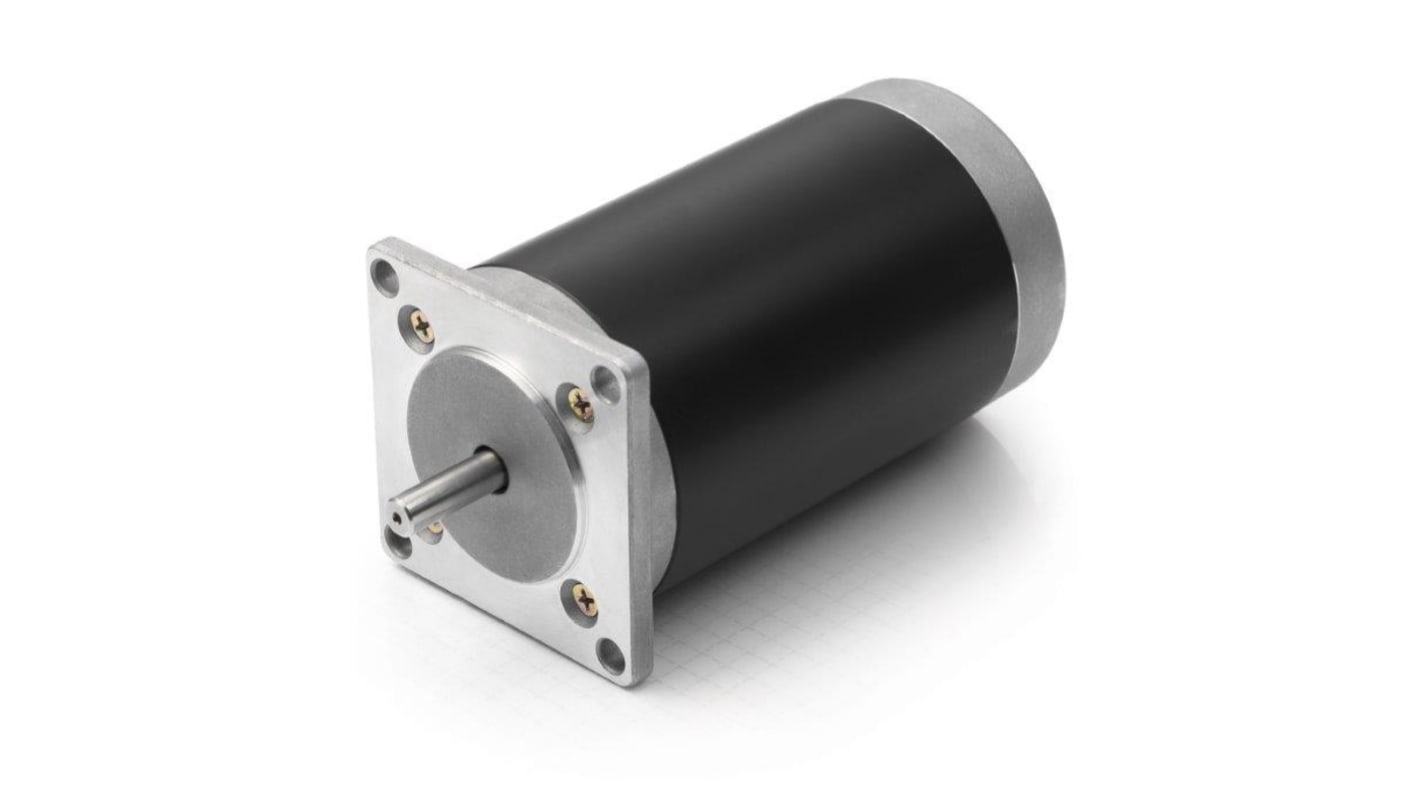

RS PRO Hybrid Stepper Motor, 12 V, 1.8°, 56.4 x 56.4mm Frame, 6.35mm Shaft

RS Stock No.:: 180-5283
Manufacturer:: RS PRO

RS PRO Hybrid Stepper Motor, 12 V, 1.8°, 56.4 x 56.4mm Frame, 6.35mm Shaft

Bulk discount available

Subtotal (1 unit)**

MYR163.44

Temporarily out of stock - back order for despatch 13/12/2025, delivery within 4 working days from despatch date*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR500.00

Units	Per Unit
1 - 4	MYR163.44
5 +	MYR160.17

**price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

RS PRO Hybrid Stepper Motor, 6 V, 1.8°, 56.4 x 56.4mm Frame, 6.35mm Shaft

RS Stock No.: 180-5282

Each

MYR226.33

RS Stock No.:: 180-5283
Manufacturer:: RS PRO

RS PRO Unipolar Hybrid Stepper Motor 1.8°, 12 V

Unipolar hybrid stepper motors from RS PRO are high performance DC motors, perfect for applications requiring precise movement or rotation in steps. They combine characteristics from both VR (variable reluctance) stepper motors and PM (permanent magnet) stepper motors, offering a versatile motor suitable for a range of applications. With RS PRO hybrid stepper motors, high torque can be achieved even with low speeds.

Features and benefits

Hybrid technology combining VR and PM motor characteristics

High torque with low speed

Suitable for a range of applications

Lightweight yet durable design

6 lead configuration

Holding torque: 0.497 Nm

Stepping angle: 1.8°

Rated voltage: 12 V

RS PRO Unipolar Hybrid Stepper Motor Variants

RS PRO 2.38, RS stock no: 180-5284

RS PRO 6V, RS stock no: 180-5282

RS PRO 12 V, RS stock no: 180-5283

The RS PRO Stepper motor are high performance DC motors, perfect for applications requiring precise movement or rotation in steps. They combine characteristics from both VR (variable reluctance) stepper motors and PM (permanent magnet) stepper motors, offering a versatile motor suitable for a range of applications.

Applications

Lightweight yet durable design
6 lead configuration
Hybrid technology combining VR and PM motor characteristics

A stepper motor is a type of DC motor with a shaft that turns in precise steps by dividing full rotations via multiple coils that are organised in phases. Stepper motors are ideal for applications requiring discrete and precise torque or movement. These motors offer a variety of driver modes including wave drive, full step, half step and micro-step and can be operated via stepper controllers. Stepper motors are commonly used in applications such as:

CNC machines

Medical scanners

Printers

Disc drives

Digital cameras

FAQs

What is the stepping rate?

This stepper motor features a 1.8° step angle, equivalent to 200 steps per revolution.

What is the length of the shaft?

The length of the shaft is 19mm.

What is the max radial force?

The max radial force for this model is 75 N (20 MM from front flange).

What is the max axial force?

The max axial force for this model is 15 N.

What is the difference between unipolar and bipolar?

Unipolar stepper motors operate with a single winding with a centre tap per phase. Each section of the winding is switched on for each direction of the magnetic field. Unlike the unipolar stepper motor, the bipolar stepper motor has two leads per phase, neither of which are common.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Stepper Motor Type	Hybrid
	Step Angle	1.8°
	Number Of Wires	6
	Supply Voltage	12 V
	Frame Size	56.4 x 56.4mm
	Shaft Diameter	6.35mm
	Current Rating	420 mA
	Winding Arrangement	Unipolar
	Shaft Length	19mm
	Depth	51mm
	Resistance Per Phase	29Ω

	Select all
	Brand RS PRO
	Stepper Motor Type Hybrid
	Step Angle 1.8°
	Number Of Wires 6
	Supply Voltage 12 V
	Frame Size 56.4 x 56.4mm
	Shaft Diameter 6.35mm
	Current Rating 420 mA
	Winding Arrangement Unipolar
	Shaft Length 19mm
	Depth 51mm
	Resistance Per Phase 29Ω
