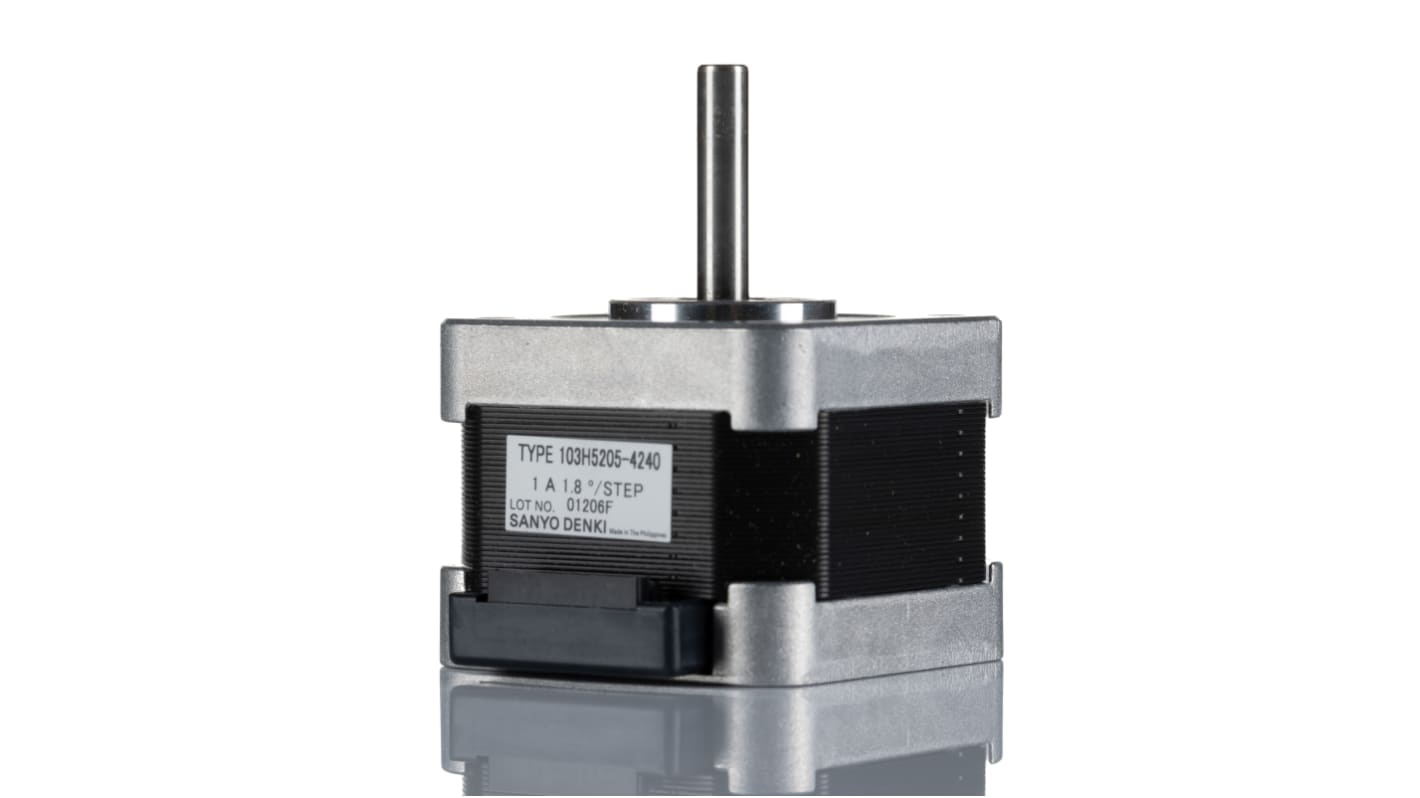

Sanyo Denki 103H5 Series Hybrid, Single Shaft Stepper Motor, 0.265Nm Torque, 24 V, 1.8°, 42 x 42mm Frame, 5mm Shaft
- RS Stock No.:
- 136-6712
- Mfr. Part No.:
- 103H5205-4240
- Manufacturer:
- Sanyo Denki
35 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Price Each
MYR242.45
Units | Per Unit |
|---|---|
| 1 + | MYR242.45 |
- RS Stock No.:
- 136-6712
- Mfr. Part No.:
- 103H5205-4240
- Manufacturer:
- Sanyo Denki
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- PH
Product Details
Sanyo Denki Stepper Motor, 2 Phases, 1A Current Rating - 103H5 Series - 103H5205-4240
Give positioning equipment spot-on precision with this stepper motor from Sanyo Denki. Its small step angle of 1.8° gives you the benefit of close control, ensuring components are placed in just the right spot. For safety, insulation between its winding and frame help to protect you against electric shock. To make installation a breeze, you can mount the motor either vertically or horizontally to suit the needs of your setup.
Features & Benefits
• Light weight of 0.23kg means it places minimal strain on your equipment
• Wide operating temperature range between -10°C and +50°C for use in demanding conditions
• IP40 rating means it's finger-safe and protected against tools and wires larger than 1mm
• Current rating of 1A for use in low-power applications
• Bipolar windings allow for simple rotation in either direction
• Wide operating temperature range between -10°C and +50°C for use in demanding conditions
• IP40 rating means it's finger-safe and protected against tools and wires larger than 1mm
• Current rating of 1A for use in low-power applications
• Bipolar windings allow for simple rotation in either direction
Applications
• Automated assembly lines
• Robotics
• Packaging facilities
• Breweries
• Robotics
• Packaging facilities
• Breweries
What's the holding torque of this stepper motor?
This bipolar winding stepper motor has a high holding torque of 0.265Nm at two-phase energisation, ensuring there's no chance of the motor slipping and losing its position.
Sanyo Denki Stepper Motor
Specifications
Attribute | Value |
|---|---|
| Stepper Motor Type | Hybrid, Single Shaft |
| Step Angle | 1.8° |
| Holding Torque | 0.265Nm |
| Number Of Wires | 6 |
| Supply Voltage | 24 V |
| Frame Size | 42 x 42mm |
| Shaft Diameter | 5mm |
| Current Rating | 1 A |
| Winding Arrangement | Bipolar |
| Shaft Length | 24mm |
| Depth | 42mm |
| Resistance Per Phase | 3.4Ω |
| Standards Met | CE, UL, TUV, RoHS Compliant |
| Series | 103H5 |
