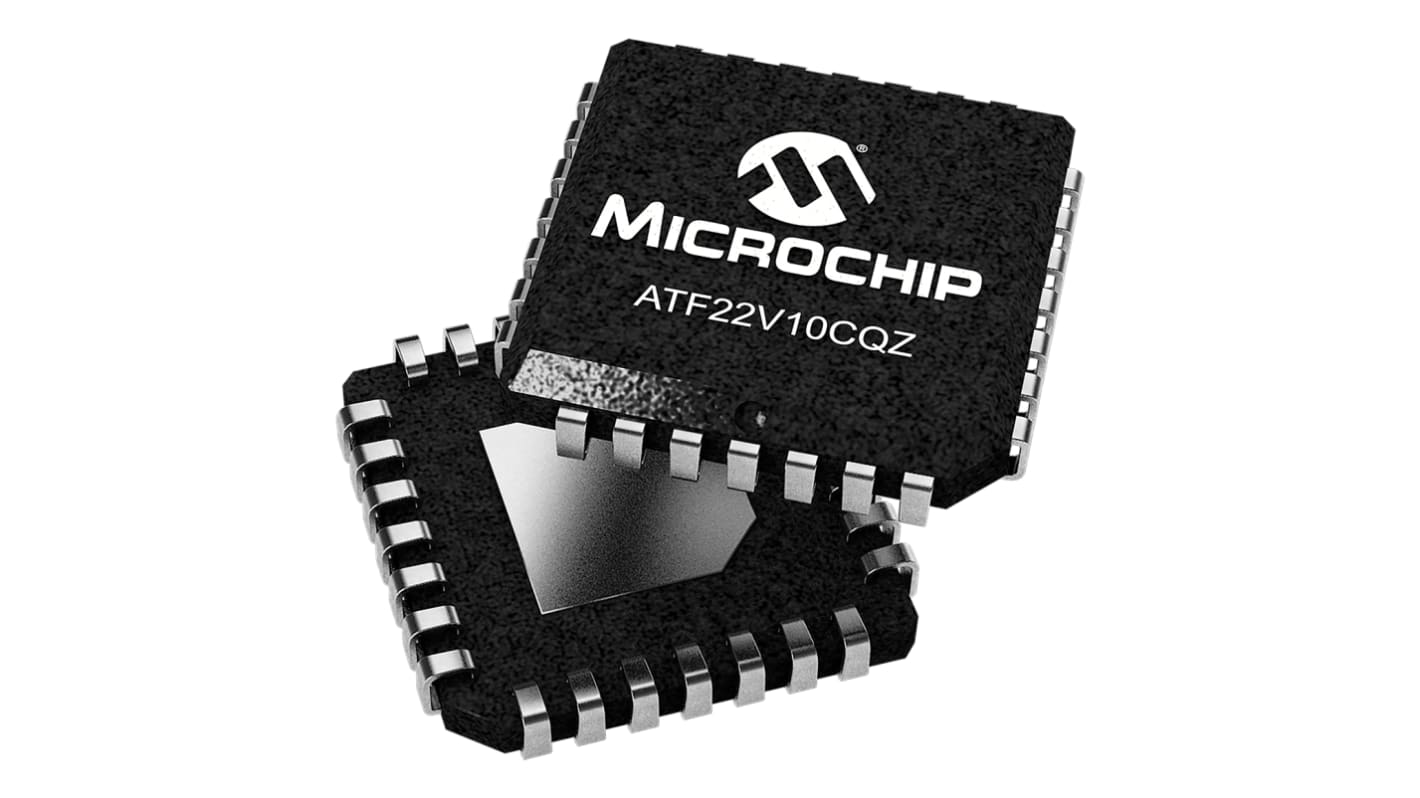

Microchip ATF22V10CQZ-20JU, SPLD Simple Programmable Logic Device ATF22V10C 350 Gates, 10 Macro Cells, 10 I/O, 最低50MHz

RS Stock No.:: 127-8217
Mfr. Part No.:: ATF22V10CQZ-20JU
Manufacturer:: Microchip

Microchip ATF22V10CQZ-20JU, SPLD Simple Programmable Logic Device ATF22V10C 350 Gates, 10 Macro Cells, 10 I/O, 最低50MHz

Bulk discount available

Subtotal (1 pack of 2 units)**

MYR33.84

Temporarily out of stock - back order for despatch 13/10/2025, delivery within 4 working days from despatch date*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR500.00

Units	Per Unit	Per Pack**
2 - 8	MYR16.92	MYR33.84
10 - 22	MYR16.675	MYR33.35
24 - 98	MYR16.335	MYR32.67
100 +	MYR16.01	MYR32.02

**price indicative

RS Stock No.:: 127-8217
Mfr. Part No.:: ATF22V10CQZ-20JU
Manufacturer:: Microchip

Datasheet
ESD Control Selection Guide V1

Attribute	Value
Family Name	ATF22V10C
Number of Gates	350
Number of Macro Cells	10
Number of User I/Os	10
Maximum Internal Frequency	最低50MHz
Re-programmability Support	Yes
Mounting Type	Surface Mount
Package Type	PLCC
Pin Count	28
Maximum Propagation Delay Time	20ns
Fabrication Technology	CMOS, TTL
Dimensions	11.58 x 11.58 x 4.06mm
Height	4.06mm
Maximum Operating Supply Voltage	5 V
Length	11.58mm
Maximum Operating Temperature	+85 °C
Propagation Delay Test Condition	50pF
Width	11.58mm
Minimum Operating Temperature	-40 °C

Microchip ATF22V10CQZ-20JU, SPLD Simple Programmable Logic Device ATF22V10C 350 Gates, 10 Macro Cells, 10 I/O, 最低50MHz

FREE delivery for orders over MYR500.00

Simple Programmable Logic Device, Microchip
