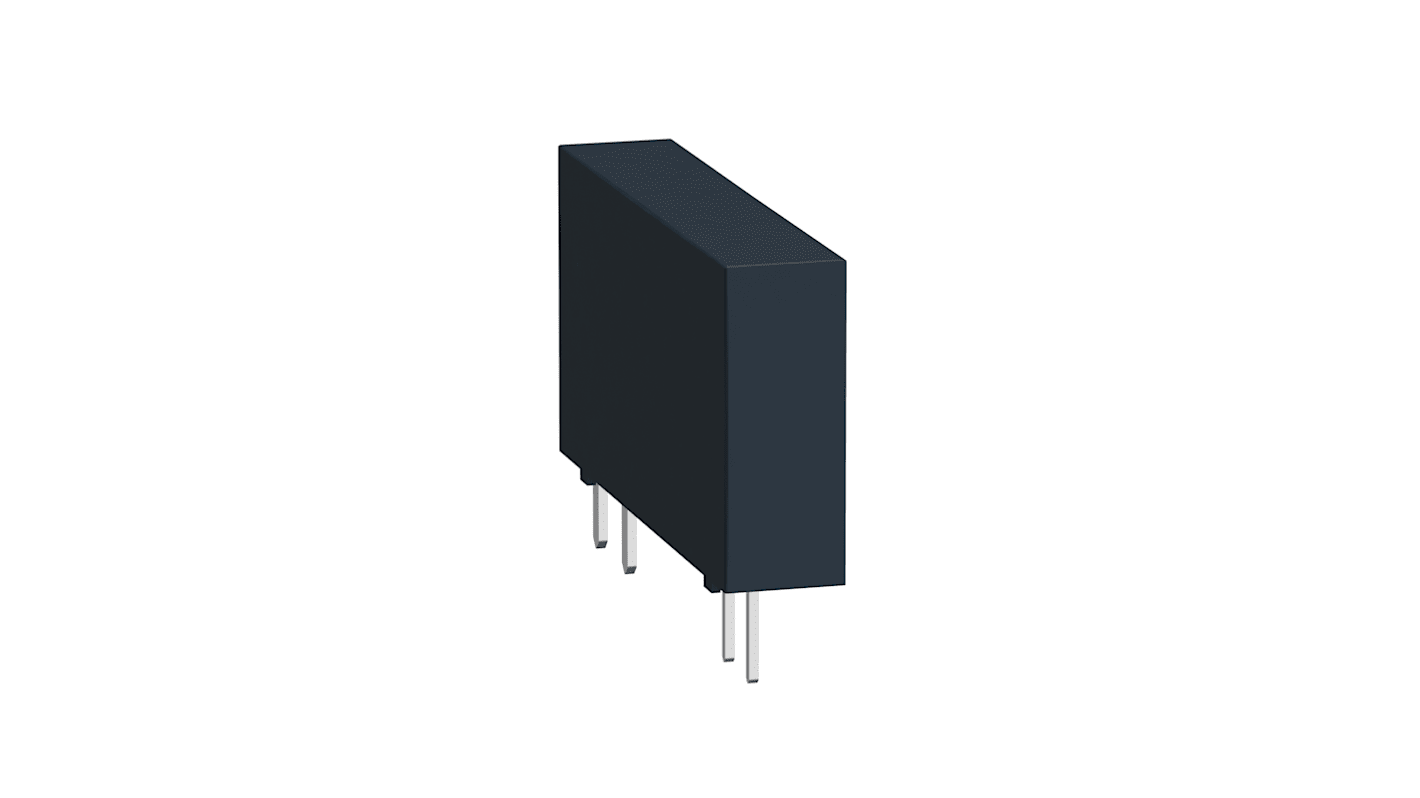

Schneider Electric Harmony Relay Series Solid State Relay, 2 A Load, PCB Mount, 280 V ac Load, 30 V dc Control
- RS Stock No.:
- 922-1815
- Mfr. Part No.:
- SSL1A12BD
- Manufacturer:
- Schneider Electric
54 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR89.22
| Units | Per Unit |
| 1 + | MYR89.22 |
- RS Stock No.:
- 922-1815
- Mfr. Part No.:
- SSL1A12BD
- Manufacturer:
- Schneider Electric
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- MX
Product Details
Schneider Electric Solid State Relay, Single Phase, 15 to 30V DC Control Voltage - SSL Series - SSL1A12BD
Use this solid state relay from Schneider Electric to control the flow of electricity through a circuit. The switch opens to break the current in events such as overheating or short circuits. It's a single-phase type with a wide control voltage range of 15 to 30V DC, meaning it provides a stable flow even if the supply voltage fluctuates. To manage this, it supports resistive loads between 24 and 280V AC. As the relay has no moving parts to experience wear or suffer damage during use, it delivers a reliably long operational service life with minimal chance of failure.
Features & Benefits
• Compact dimensions of 28 (L) x 15 (H) x 5mm (D) to make the best use of space on your panel
• SPNO contact configuration for energy efficiency during downtime
• SPNO contact configuration for energy efficiency during downtime
Applications
• Industrial motors
• Production lines
• Alarm systems
• Production lines
• Alarm systems
What IP rating does this solid state relay have?
The housing has an IP67 rating indicating complete protection against dust and means it can be submerged in 1m of water for 30 minutes.
Schneider Solid State Relays
Specifications
Attribute | Value |
|---|---|
| Maximum Load Current | 2 A |
| Mounting Type | PCB Mount |
| Maximum Load Voltage | 280 V ac |
| Minimum Load Voltage | 24 V ac |
| Maximum Control Voltage | 30 V dc |
| Minimum Control Voltage | 15 V dc |
| Switching Type | AC |
| Control Voltage Range | 15 → 30 V dc |
| Minimum Load Current | 0.07 A |
| Range | Harmony |
| Number of Poles | 1 |
| Terminal Type | PCB Pin |
| Contact Configuration | SPST |
| Output Device | SCR |
| Relay Type | Single Phase |
| Maximum Turn On Time | 1/2 cycle |
| Series | Harmony Relay |
| Load Voltage Range | 24 → 280V ac |
| Dimensions | 28 x 5 x 15mm |
| Better World Product | Yes |
| Better World Verification | Green Premium |
| Standards Met | CE, CSA, UL |
| Special Features | Built-In Diode Protection Circuit & LED Indicator, Mounted on Universal AC/DC Sockets, Slim Interface SSL Relays with PCB Terminals |
| Minimum Operating Temperature | -20°C |
| Operating Temperature Range | -20 → +80°C |
| Length | 28mm |
| Off State Leakage Current | 4 mA |
| Height | 15mm |
| Maximum Operating Temperature | +80°C |
| Capacitance | 1.5pF |
| Depth | 5mm |
