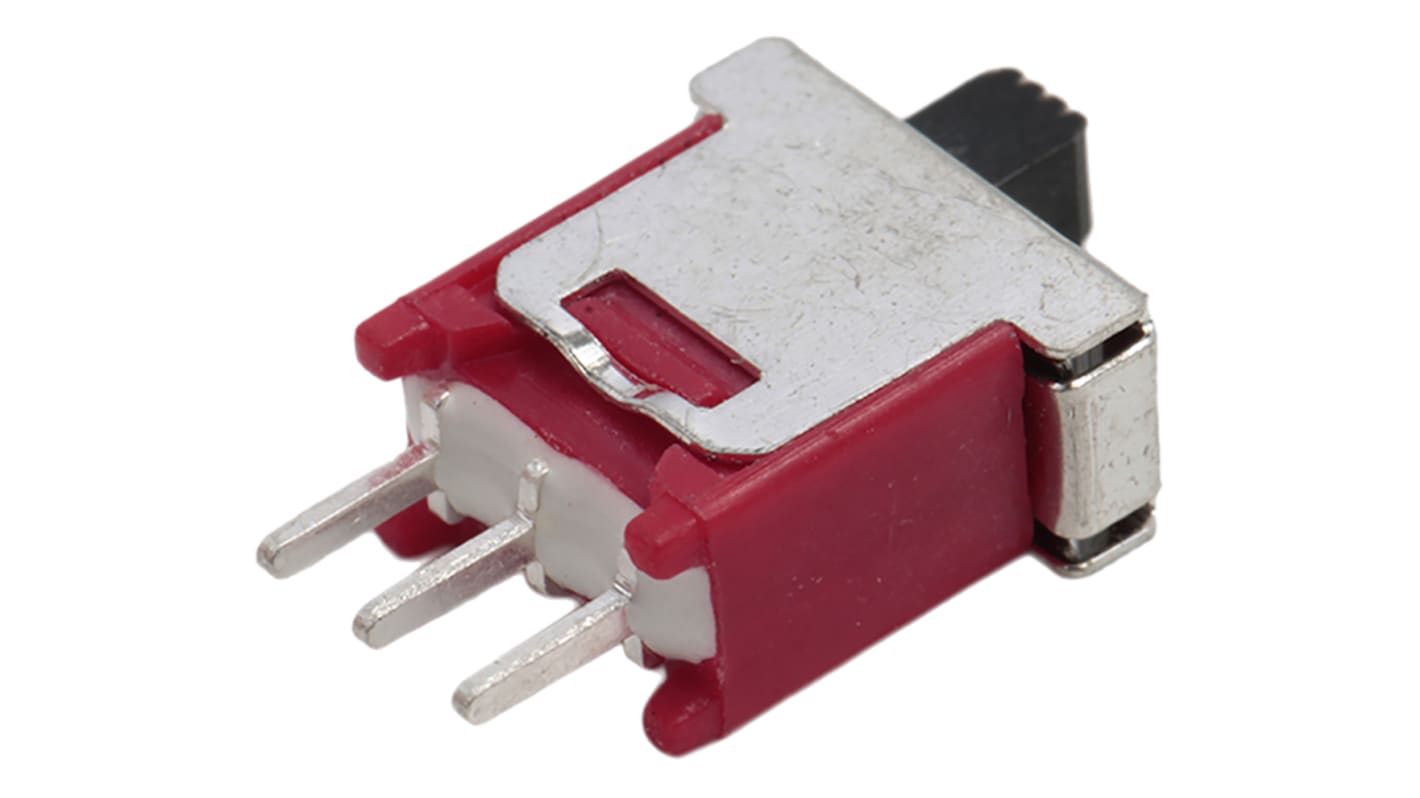

RS PRO PCB Slide Switch SPDT Latching 3 A @ 120 V ac Top
- RS Stock No.:
- 734-7261
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
MYR22.36
FREE delivery for orders over RM 500.00
In Stock
- Plus 69 unit(s) shipping from 19 January 2026
- Plus 113 unit(s) shipping from 26 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | MYR22.36 |
| 5 + | MYR18.39 |
*price indicative
- RS Stock No.:
- 734-7261
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Contact Configuration | Single Pole Double Throw (SPDT) | |
| Mounting Type | PCB | |
| Switch Operation | Latching | |
| Contact Current Rating | 3 A @ 120 V ac | |
| Terminal Type | Through Hole | |
| Actuator Type | Top | |
| Length | 10.16mm | |
| Width | 5.08mm | |
| Depth | 9.2mm | |
| Dimensions | 10.16 x 5.08 x 9.2mm | |
| Contact Resistance | 20mΩ | |
| Voltage Rating | 120V ac | |
| Mechanical Life | 30000Cycles | |
| Contact Material | Silver Plated Copper Alloy | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | +85°C | |
| Actuator Material | Nylon | |
| Operating Temperature Range | -30 → +85°C | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Contact Configuration Single Pole Double Throw (SPDT) | ||
Mounting Type PCB | ||
Switch Operation Latching | ||
Contact Current Rating 3 A @ 120 V ac | ||
Terminal Type Through Hole | ||
Actuator Type Top | ||
Length 10.16mm | ||
Width 5.08mm | ||
Depth 9.2mm | ||
Dimensions 10.16 x 5.08 x 9.2mm | ||
Contact Resistance 20mΩ | ||
Voltage Rating 120V ac | ||
Mechanical Life 30000Cycles | ||
Contact Material Silver Plated Copper Alloy | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +85°C | ||
Actuator Material Nylon | ||
Operating Temperature Range -30 → +85°C | ||
RS - Ultra Miniature Slide Switches
Suitable for wave soldering at 260ºC for 5 seconds
Black nylon actuator, DAP case and tin plated brass housing
Typical applications include PCB control for hand held products, instrumentation, white goods, medical, IT and telecomms equipment
Black nylon actuator, DAP case and tin plated brass housing
Typical applications include PCB control for hand held products, instrumentation, white goods, medical, IT and telecomms equipment
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
