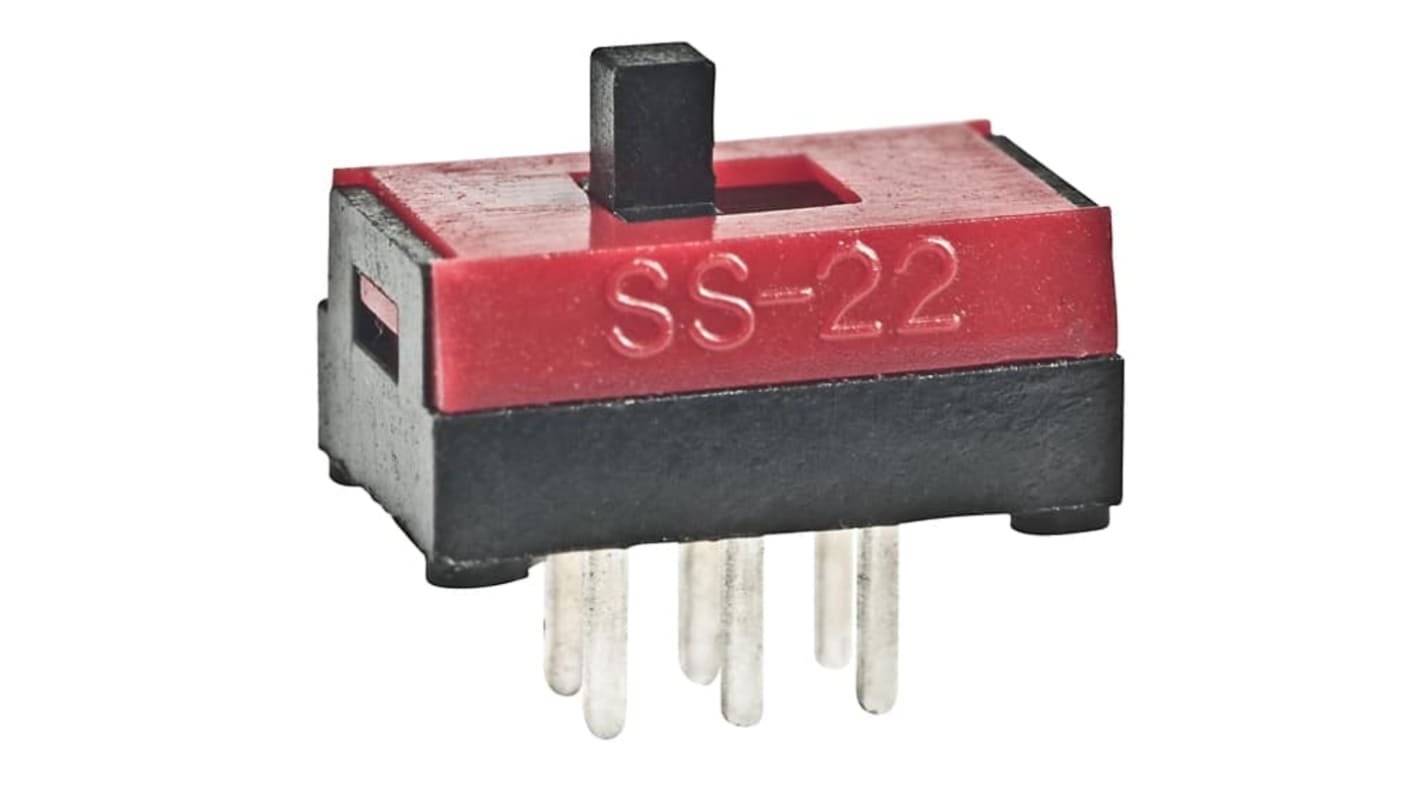

NKK Switches PCB Slide Switch DPDT Latching 100 mA @ 30 V dc Slide
- RS Stock No.:
- 429-0005
- Mfr. Part No.:
- SS-22SBP2
- Manufacturer:
- NKK Switches
19 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR9.85
| Units | Per Unit |
| 1 - 99 | MYR9.85 |
| 100 - 249 | MYR9.56 |
| 250 - 499 | MYR9.17 |
| 500 + | MYR8.92 |
- RS Stock No.:
- 429-0005
- Mfr. Part No.:
- SS-22SBP2
- Manufacturer:
- NKK Switches
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Subminiature Slide Switch SS Series
Operates smoothly
Dual contact with high contact reliability
Self-cleaning by dual side sliding contact mechanism
High ingress protection
Dual contact with high contact reliability
Self-cleaning by dual side sliding contact mechanism
High ingress protection
Note
Solder heat-resistance leave at room temperature for two minutes after soldering. Not completely washable.
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Mounting Type | PCB |
| Switch Operation | Latching |
| Contact Current Rating | 100 mA @ 30 V dc |
| Terminal Type | Through Hole |
| Actuator Type | Slide |
| Contact Resistance | 20mΩ |
| Mechanical Life | 10000Operations |
| Maximum Operating Temperature | +60°C |
| Actuator Material | Polyamide |
| Minimum Operating Temperature | -15°C |
| Operating Temperature Range | -15 → +60°C |
| Contact Material | Silver |
