Sensirion SEK-SVM4x Evaluation Kit for SGP40/41 Air Quality Sensor Evaluation Kit for SHT40, SVM40 sensor module

The Sensirion evaluation kit consists of SVM40 development board which has a SGP40 VOC sensor and SHT40 humidity and temperature sensor with I²C interface and a

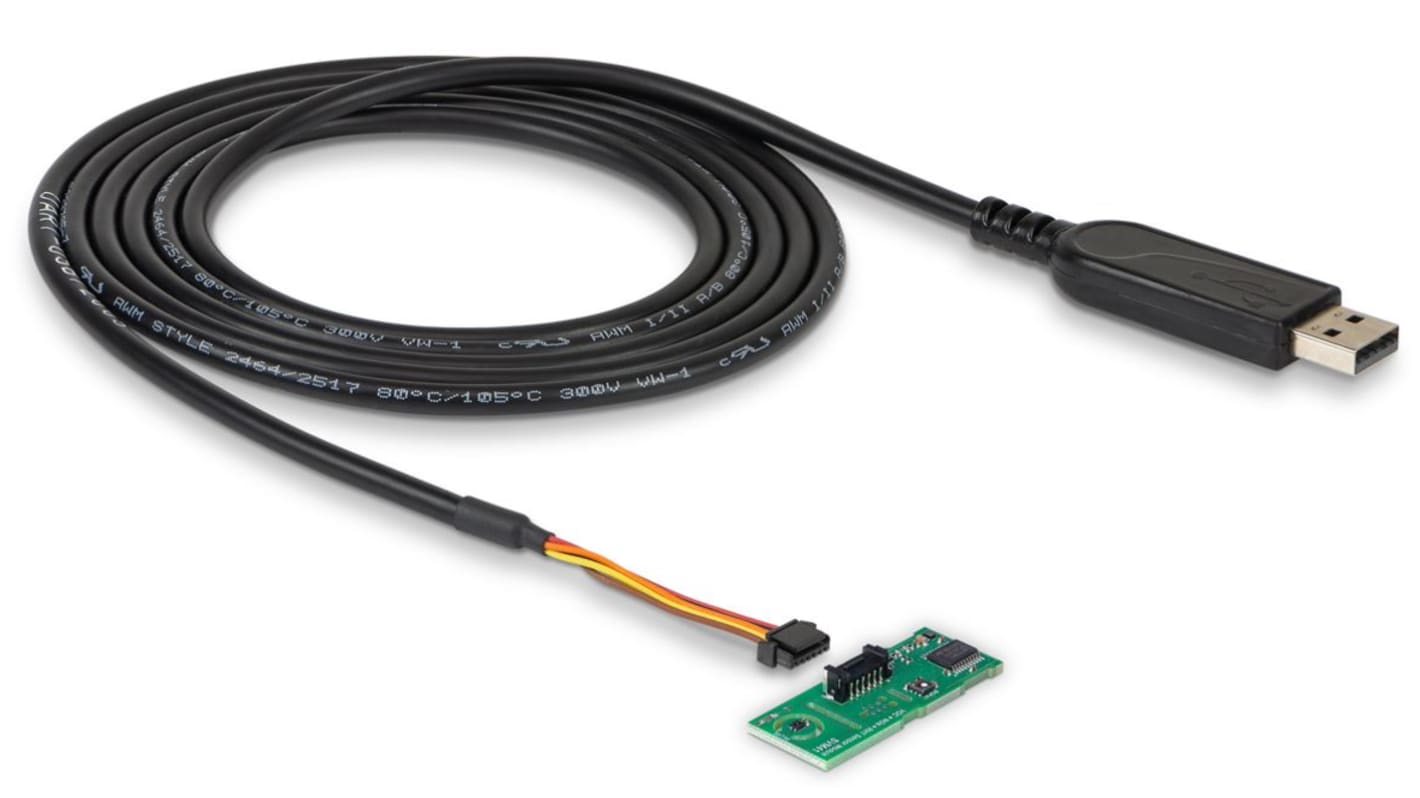

USB-UART cable to connect the SVM40 development board directly to a USB port. Also it has jumper wire set to connect the SVM40 development board to embedded platforms like Arduino, raspberry pi, etc.

SEK-SVM4x Evaluation Kit for SGP40/41
Sensor module equipped with SGP40 and SHT40
Sensor detects MOX, Temperature, Humidity
On-board microcontroller for signal processing
I²C and UART interface with digital output signals
USB-UART cable, jumper wire cable set
Device-to-device variation VOC ±15 VOC Index points or % (the larger)
Device-to-device variation NOx ±50 NOx Index points or % (the larger)
Recommended operating conditions 0 to 90 %RH, -10 to +50 °C
Min/max operating conditions avoid condensating environment 0 to 90 %RH, -20 to +55 °C
Size 39.00 mm x 15.00 mm x 5.5 mm
Supply voltage 3.0–5.5 V
Weight 4.6 g
Supplier device package PCB

USB and jumper wire cable are part of the evaluation kit to easily connect the SVM41 to Control Center and/or embedded platforms (Arduino, Raspi, etc.)
