Vishay 100 V 1 A Rectifier & Schottky Diode Schottky 2-Pin DO-219AB SS1FH10-M3/H
- RS Stock No.:
- 180-8009
- Mfr. Part No.:
- SS1FH10-M3/H
- Manufacturer:
- Vishay

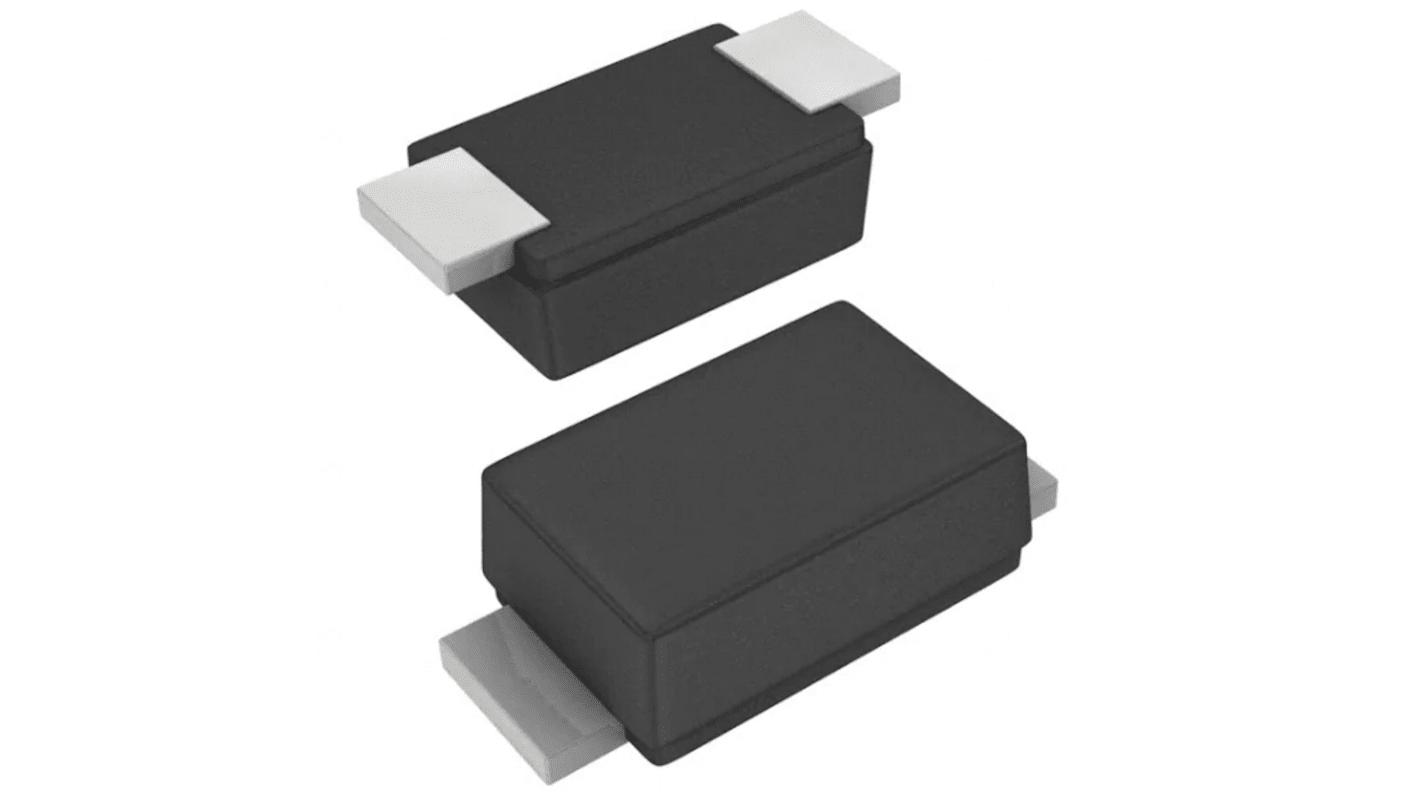

This image is representative of the product range
Bulk discount available
View bulk pricing optionSubtotal (1 pack of 25 units)*
MYR21.875
FREE delivery for orders over RM 500.00
In Stock
- 18,700 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 25 - 725 | MYR0.875 | MYR21.88 |
| 750 - 1475 | MYR0.644 | MYR16.10 |
| 1500 + | MYR0.54 | MYR13.50 |
*price indicative
- RS Stock No.:
- 180-8009
- Mfr. Part No.:
- SS1FH10-M3/H
- Manufacturer:
- Vishay
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Mount Type | Surface | |
| Product Type | Rectifier & Schottky Diode | |
| Package Type | DO-219AB | |
| Maximum Continuous Forward Current If | 1A | |
| Peak Reverse Repetitive Voltage Vrrm | 100V | |
| Diode Configuration | Single | |
| Series | SS1FH10 | |
| Rectifier Type | Schottky | |
| Pin Count | 2 | |
| Peak Reverse Current Ir | 160μA | |
| Maximum Forward Voltage Vf | 0.8V | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 40A | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 175°C | |
| Height | 1.08mm | |
| Length | 3.9mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Mount Type Surface | ||
Product Type Rectifier & Schottky Diode | ||
Package Type DO-219AB | ||
Maximum Continuous Forward Current If 1A | ||
Peak Reverse Repetitive Voltage Vrrm 100V | ||
Diode Configuration Single | ||
Series SS1FH10 | ||
Rectifier Type Schottky | ||
Pin Count 2 | ||
Peak Reverse Current Ir 160μA | ||
Maximum Forward Voltage Vf 0.8V | ||
Peak Non-Repetitive Forward Surge Current Ifsm 40A | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 175°C | ||
Height 1.08mm | ||
Length 3.9mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
Vishay Schottky Rectifier
The Vishay SMF (DO-219AB) surface mount Schottky barrier rectifier has a repetitive reverse voltage of 100VDC and a forward current rating of 1A.
Features and Benefits
• Extremely low forward voltage drop
• Halogen free
• High surge capability
• Ideal for automated placement
• Lead (Pb) free component
• Low leakage current
• Low power losses, high efficiency
• Low profile package
• Meets MSL level 1, per J-STD-020, LF maximum peak of 260°C
• Operating junction temperature ranges between -55°C and 175°C
Applications
• Automotive
• DC/DC converters
• Freewheeling
• Low voltage high frequency inverters
• Polarity protection
Certifications
• AEC-Q101 qualified
• AUTOMOTIVE GRADE available
