STMicroelectronics 45 V 240 A Diode Schottky 4-Pin ISOTOP STPS24045TV
- RS Stock No.:
- 178-1381
- Mfr. Part No.:
- STPS24045TV
- Manufacturer:
- STMicroelectronics

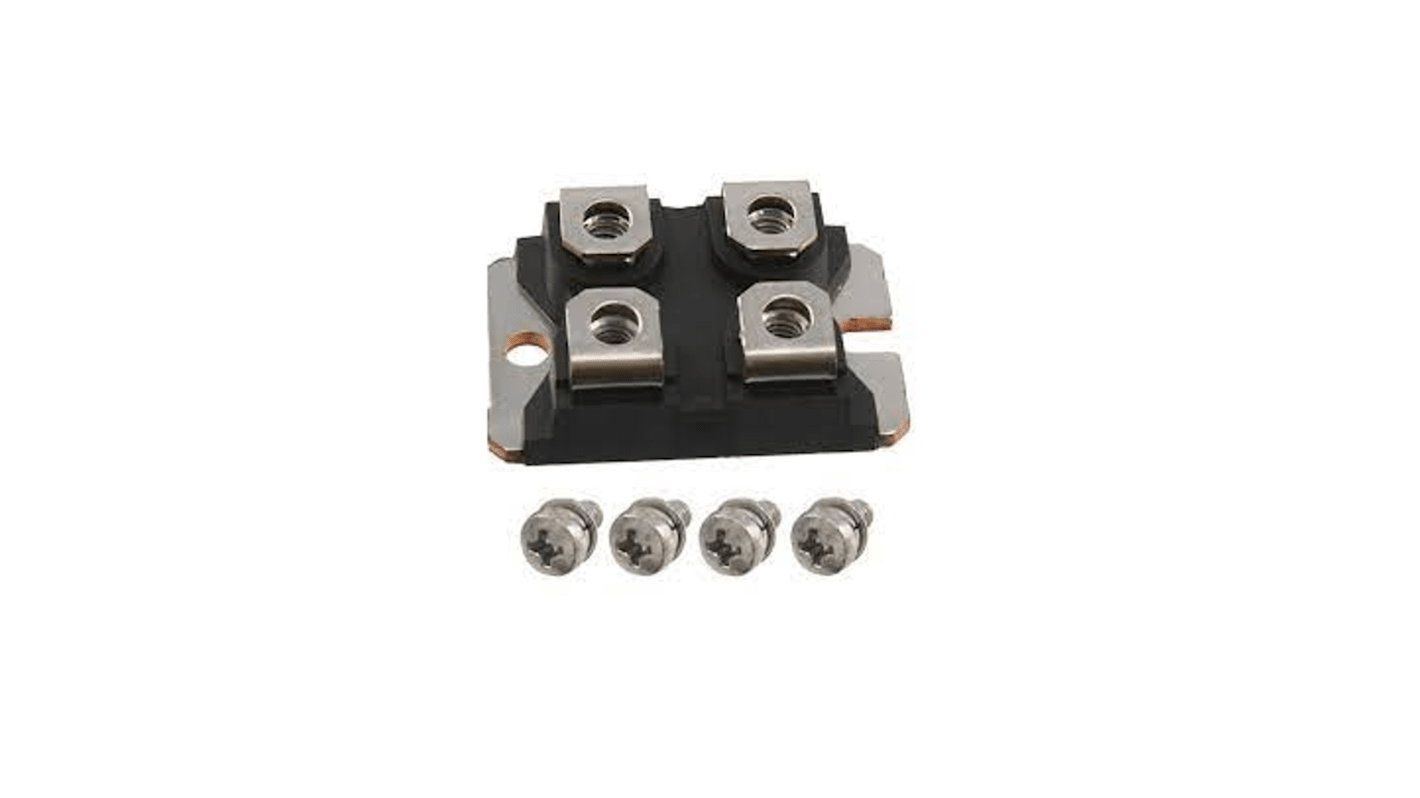

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 10 units)*
MYR1,337.70
FREE delivery for orders over RM 150.00
Temporarily out of stock
- 50 unit(s) shipping from 25 November 2026
- Plus 10 unit(s) shipping from 03 February 2027
- Plus 20 unit(s) shipping from 10 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Tube* |
|---|---|---|
| 10 - 10 | MYR133.77 | MYR1,337.70 |
| 20 - 30 | MYR130.827 | MYR1,308.27 |
| 40 + | MYR128.419 | MYR1,284.19 |
*price indicative
- RS Stock No.:
- 178-1381
- Mfr. Part No.:
- STPS24045TV
- Manufacturer:
- STMicroelectronics
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Mount Type | Panel | |
| Product Type | Diode | |
| Package Type | ISOTOP | |
| Maximum Continuous Forward Current If | 240A | |
| Peak Reverse Repetitive Voltage Vrrm | 45V | |
| Diode Configuration | Isolated | |
| Series | STPS24045 | |
| Rectifier Type | Schottky | |
| Pin Count | 4 | |
| Peak Reverse Current Ir | 300mA | |
| Maximum Forward Voltage Vf | 910mV | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.5kA | |
| Minimum Operating Temperature | -65°C | |
| Maximum Operating Temperature | 150°C | |
| Height | 9.1mm | |
| Standards/Approvals | No | |
| Length | 38.2mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Mount Type Panel | ||
Product Type Diode | ||
Package Type ISOTOP | ||
Maximum Continuous Forward Current If 240A | ||
Peak Reverse Repetitive Voltage Vrrm 45V | ||
Diode Configuration Isolated | ||
Series STPS24045 | ||
Rectifier Type Schottky | ||
Pin Count 4 | ||
Peak Reverse Current Ir 300mA | ||
Maximum Forward Voltage Vf 910mV | ||
Peak Non-Repetitive Forward Surge Current Ifsm 1.5kA | ||
Minimum Operating Temperature -65°C | ||
Maximum Operating Temperature 150°C | ||
Height 9.1mm | ||
Standards/Approvals No | ||
Length 38.2mm | ||
Automotive Standard No | ||
The STMicroelectronics dual power Schottky rectifier suited for switched mode power supply and high frequency DC to DC converters. It used packaged in ISOTOP, this device is especially intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.
Avalanche capability specified
Low thermal resistance
Very small conduction losses
