ON Semiconductor Schottky Barrier Diodes

This ON Semiconductor Schottky power rectifier employs the Schottky barrier principle using a barrier metal to create the best forward voltage drop−reverse current exchange. Suitable for low voltage, high-frequency rectification as well as a freewheeling and polarity protection diode in a range of surface mount applications wherever a more compact size and weight are key.

• Pb-Free
• Designed for Optimal Automated Board Assembly
• Stress protection guarding
• Epoxy Moulded Case
• Lightweight 11.7mg package

Standards

Products with NSV-, SBR- or S-prefixed Manufacturer Part Nos are AEC-Q101 automotive qualified.

Units	Per Unit	Per Reel**
3000 - 3000	MYR0.147	MYR441.00
6000 - 9000	MYR0.144	MYR432.00
12000 +	MYR0.141	MYR423.00

Select all	Attribute	Value
	Brand	onsemi
	Mounting Type	Surface Mount
	Package Type	SOT-23
	Maximum Continuous Forward Current	120mA
	Peak Reverse Repetitive Voltage	40V
	Diode Configuration	Common Anode
	Rectifier Type	Schottky Diode
	Diode Type	Schottky
	Pin Count	3
	Maximum Forward Voltage Drop	380mV
	Number of Elements per Chip	2
	Diode Technology	Schottky Barrier
	Peak Non-Repetitive Forward Surge Current	600mA

	Select all
	Brand onsemi
	Mounting Type Surface Mount
	Package Type SOT-23
	Maximum Continuous Forward Current 120mA
	Peak Reverse Repetitive Voltage 40V
	Diode Configuration Common Anode
	Rectifier Type Schottky Diode
	Diode Type Schottky
	Pin Count 3
	Maximum Forward Voltage Drop 380mV
	Number of Elements per Chip 2
	Diode Technology Schottky Barrier
	Peak Non-Repetitive Forward Surge Current 600mA

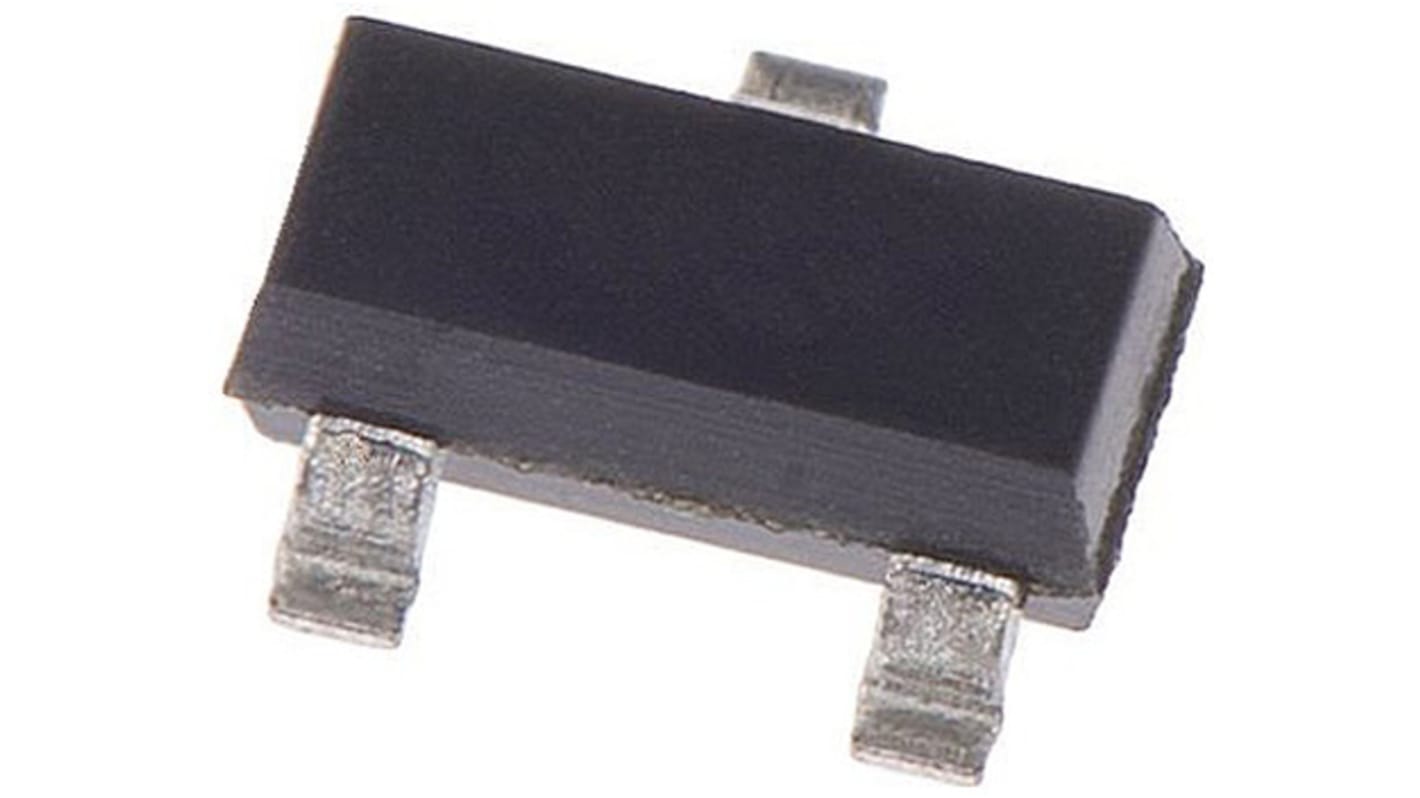

onsemi 40V 120mA, Dual Schottky Diode, 3-Pin SOT-23 BAS40-06LT1G

FREE delivery for orders over MYR500.00

ON Semiconductor Schottky Barrier Diodes

Standards

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
