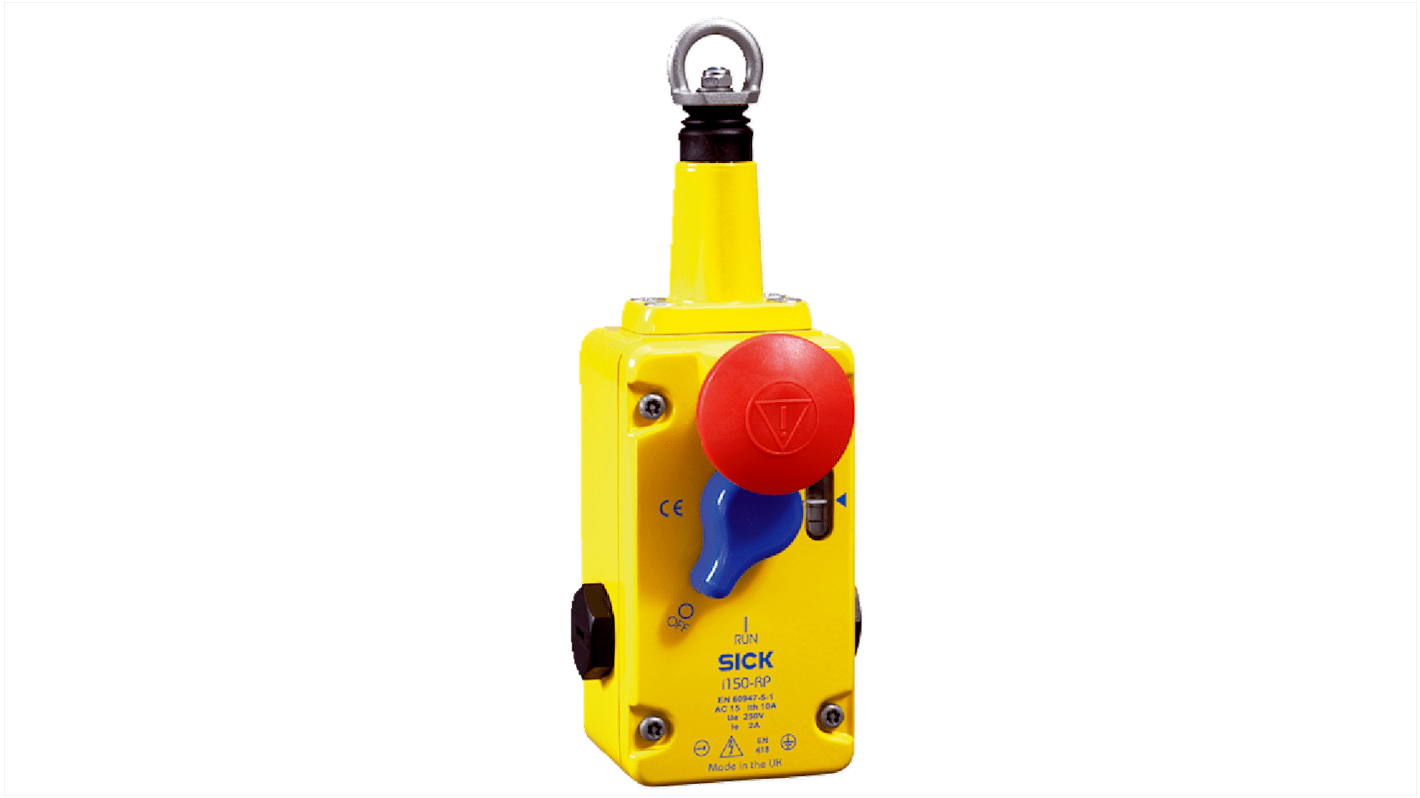

SICK I150 Rope Pull Switch 203 mm, 3 NC/1 NO

RS Stock No.:: 285-9587
Mfr. Part No.:: I150-RP313 / 6024883
Manufacturer:: SICK

Subtotal (1 unit)*

MYR1,380.79

FREE delivery for orders over RM 150.00

In Stock

1 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR1,380.79

*price indicative

RS Stock No.:: 285-9587
Mfr. Part No.:: I150-RP313 / 6024883
Manufacturer:: SICK

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SICK
	Product Type	Rope Pull Switch
	Contact Configuration	3 NC/1 NO
	IP Rating	IP65
	Series	I150
	Minimum Operating Temperature	-25°C
	Contact Current	3A
	Contact DC Voltage	24V dc
	Contact AC Voltage	240V ac
	Maximum Operating Temperature	80°C
	Housing Material	Metal
	Depth	69mm
	Width	85mm
	Standards/Approvals	China RoHS, cULus, EU DoC, IEC, UKCA
	Length	203mm
	Hazardous Area Certification	No
	Conduit Entry	M20
	Mechanical Life	106Cycles

	Select all
	Brand SICK
	Product Type Rope Pull Switch
	Contact Configuration 3 NC/1 NO
	IP Rating IP65
	Series I150
	Minimum Operating Temperature -25°C
	Contact Current 3A
	Contact DC Voltage 24V dc
	Contact AC Voltage 240V ac
	Maximum Operating Temperature 80°C
	Housing Material Metal
	Depth 69mm
	Width 85mm
	Standards/Approvals China RoHS, cULus, EU DoC, IEC, UKCA
	Length 203mm
	Hazardous Area Certification No
	Conduit Entry M20
	Mechanical Life 106Cycles

Datasheet - i150-RP313

COO (Country of Origin):: DO

SICK I150 Series Rope Pull Switch, 203mm Length, Metal Housing - I150-RP313 / 6024883

This rope pull switch is a manually operated safety device designed to stop machinery by pulling a rope up to 75m long. It is intended for industrial safety applications where a linear actuator along a rope line provides a Rapid stop command. The enclosure is rated to IP65 for protection against dust and water ingress and is suitable for environments with ambient temperatures from -25°C to +80°C.

Features and Benefits:

• 3NC/1NO contacts provide distinct safety signalling capability
• 3A rated current supports 240V AC switching requirements
• Die-cast lightweight metal housing delivers robust mounting options
• Mechanical life 1x10^6 switching cycles enables prolonged service
• M20 cable gland permits standard conduit entry installation

Applications

• Suitable for emergency stop lines on conveyor systems
• Ideal for long-span rope actuation up to 75m
• Used with safety logic units for monitored stop functions
• Can be used for perimeter guarding of production lines
• Suitable for retrofit where metal-housed stops are required

How is fault detection handled for this device?

The switch lacks internal fault detection, so connected safety logic must detect faults.

What electrical ratings support control wiring choices?

It supports AC-15/DC-13 usage with 3A at 240V AC and 2A at 24V DC switching.

What environmental conditions can it withstand?

The unit operates and is stored between -25°C and +80°C and meets IP65 enclosure protection.

What wiring and conductor sizes are compatible?

Connection is via three M20 cable glands accepting conductors up to 1.5mm².

What switching principle and minimum switching thresholds apply?

It uses a slow-action switching element with switching voltage ≥5V DC and minimum switching current 5mA.
