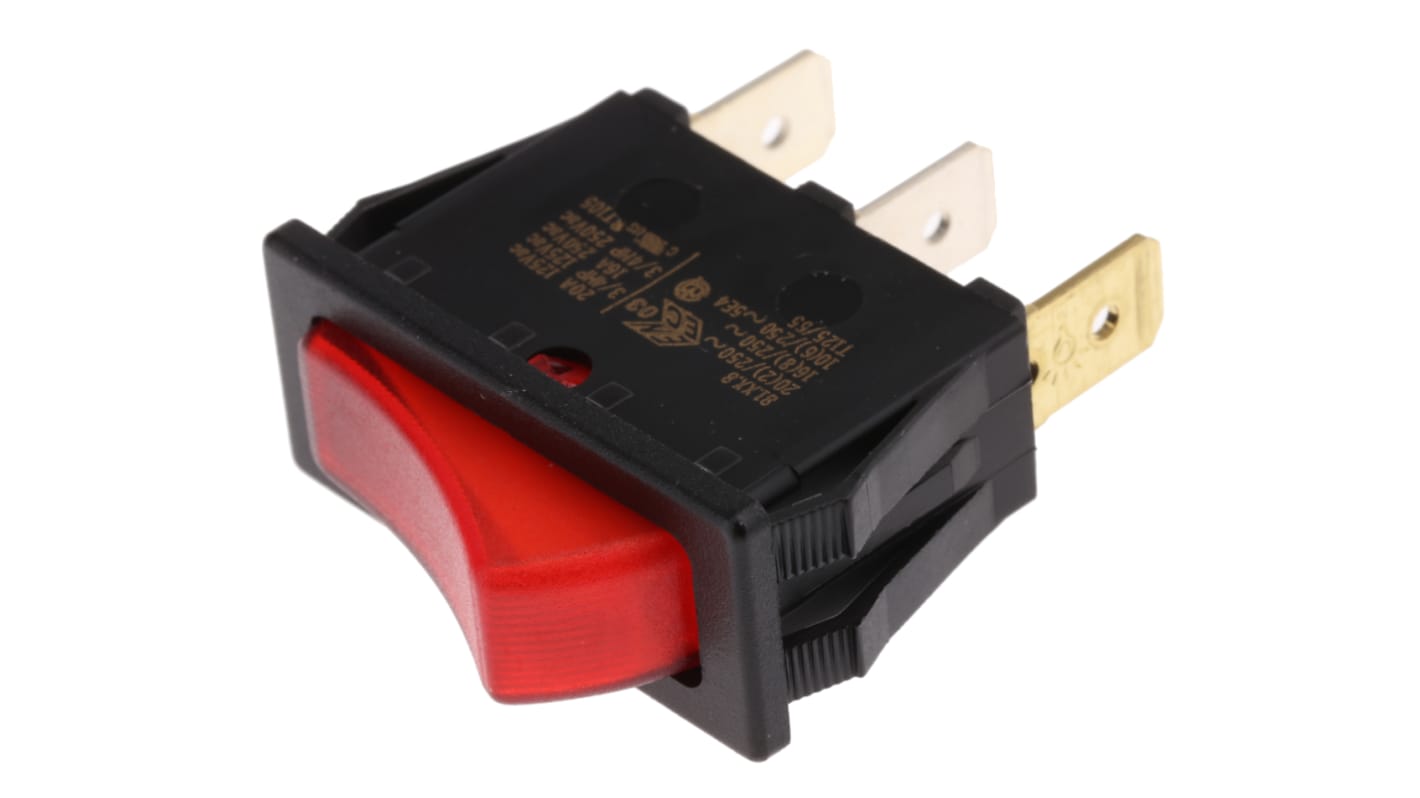

Molveno Illuminated SPST, On-Off Rocker Switch Panel Mount
- RS Stock No.:
- 793-2480
- Mfr. Part No.:
- SX8111681G000000
- Manufacturer:
- Molveno
Subtotal (1 unit)*
MYR9.46
FREE delivery for orders over RM 500.00
In Stock
- 579 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR9.46 |
*price indicative
- RS Stock No.:
- 793-2480
- Mfr. Part No.:
- SX8111681G000000
- Manufacturer:
- Molveno
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molveno | |
| Contact Configuration | Single Pole Single Throw (SPST) | |
| Switch Operation | On-Off | |
| Panel Cut Out Width | 11mm | |
| Panel Cut Out Height | 30mm | |
| Contact Current Rating | 20 A @ 250 V ac | |
| Illuminated | Yes | |
| Actuator Colour | Red | |
| Mounting Type | Panel Mount | |
| Terminal Type | Quick Connect | |
| Actuator Shape | Rectangular | |
| AC Voltage Rating | 250V | |
| Panel Cut Out Size | 30 x 11mm | |
| Operating Temperature Range | Maximum of +125°C | |
| Mechanical Life | 50000Operations | |
| Maximum Operating Temperature | +125°C | |
| Case Material | Plastic | |
| Select all | ||
|---|---|---|
Brand Molveno | ||
Contact Configuration Single Pole Single Throw (SPST) | ||
Switch Operation On-Off | ||
Panel Cut Out Width 11mm | ||
Panel Cut Out Height 30mm | ||
Contact Current Rating 20 A @ 250 V ac | ||
Illuminated Yes | ||
Actuator Colour Red | ||
Mounting Type Panel Mount | ||
Terminal Type Quick Connect | ||
Actuator Shape Rectangular | ||
AC Voltage Rating 250V | ||
Panel Cut Out Size 30 x 11mm | ||
Operating Temperature Range Maximum of +125°C | ||
Mechanical Life 50000Operations | ||
Maximum Operating Temperature +125°C | ||
Case Material Plastic | ||
- COO (Country of Origin):
- IT
Molveno SX81 Series Rocker Switches
Single pole illuminated and non illuminated SX81 Series switches from Molveno. Typical applications include refrigerators and gardening equipment. For the SX81 waterproof IP54 cover see stock number 7932503
Life 50000 cycles
Panel cut out 30 mm x 11 mm
Panel cut out 30 mm x 11 mm
