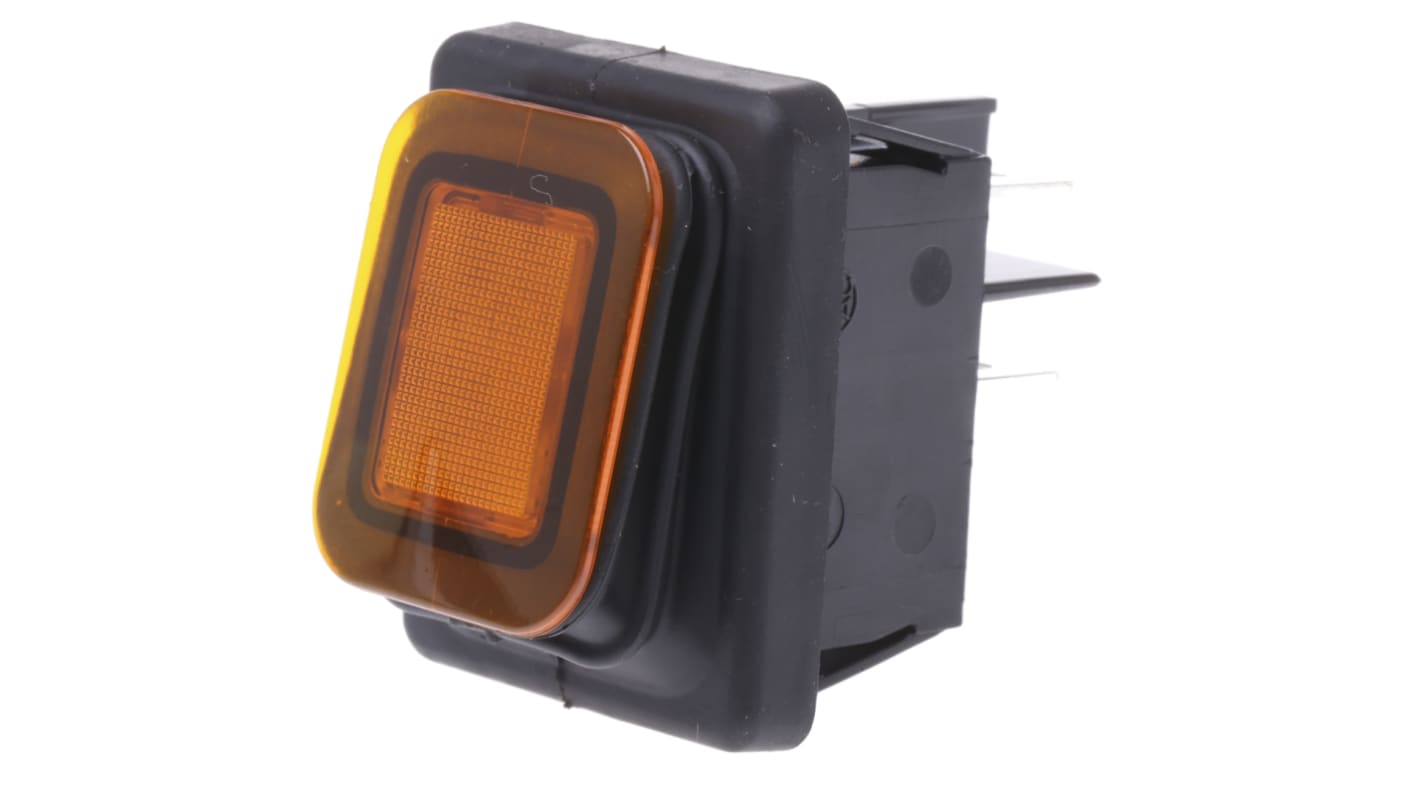

Molveno Illuminated DPST, On-Off Rocker Switch Panel Mount
- RS Stock No.:
- 456-1688
- Mfr. Part No.:
- DPST AMBER ILLUM ROCKER SWITCH, IP65
- Manufacturer:
- Molveno
5 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
18 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR36.61
| Units | Per Unit |
| 1 - 49 | MYR36.61 |
| 50 - 99 | MYR35.84 |
| 100 - 249 | MYR34.73 |
| 250 - 499 | MYR33.89 |
| 500 + | MYR33.16 |
- RS Stock No.:
- 456-1688
- Mfr. Part No.:
- DPST AMBER ILLUM ROCKER SWITCH, IP65
- Manufacturer:
- Molveno
Technical data sheets
Legislation and Compliance
Product Details
Luminescent Actuator
Highly visual, luminescent red, green and amber rocker switches
Neon illumination
IP65 rated with bellows actuator seal
Suitable for applications exposed to dust and splashes of water such as steam cleaners, vacuum cleaners, portable equipment, machine tools and laboratory equipment
6.3 x 0.8mm terminal blades
Panel Cut-out 30.6 x 22.0
Neon illumination
IP65 rated with bellows actuator seal
Suitable for applications exposed to dust and splashes of water such as steam cleaners, vacuum cleaners, portable equipment, machine tools and laboratory equipment
6.3 x 0.8mm terminal blades
Panel Cut-out 30.6 x 22.0
Approvals
UL; CSA; ENEC
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | Double Pole Single Throw (DPST) |
| Switch Operation | On-Off |
| Panel Cut Out Width | 30.8mm |
| Panel Cut Out Height | 22mm |
| Contact Current Rating | 16 A @ 250 V ac |
| Illuminated | Yes |
| Actuator Colour | Amber |
| Mounting Type | Panel Mount |
| IP Rating | IP65 |
| Terminal Type | Quick Connect |
| Actuator Shape | Rectangular |
| AC Voltage Rating | 250V |
| Panel Cut Out Size | 22 x 30.8mm |
| Maximum Operating Temperature | +55°C |
| Operating Temperature Range | Maximum of +55°C |
| Mechanical Life | >300000Operations |
