Select all	Attribute	Value
	Brand	ZF
	Contact Configuration	Single Pole Single Throw (SPST)
	Switch Operation	On-Off
	Panel Cut Out Width	13mm
	Panel Cut Out Height	19.4mm
	Contact Current Rating	20 A @ 14 V dc
	Illuminated	Yes
	Actuator Colour	Green
	Mounting Type	Panel Mount
	IP Rating	IP65
	Terminal Type	Quick Connect
	Actuator Shape	Rectangular
	AC Voltage Rating	125 V, 250V
	Panel Cut Out Size	19.4 x 13mm
	DC Voltage Rating	14 V, 28V
	Case Material	Nylon 66
	Maximum Operating Temperature	+85°C
	Contact Resistance	50mΩ
	Contact Material	Silver Alloy
	Mechanical Life	100000Operations
	Operating Temperature Range	-25 → +85°C
	Minimum Operating Temperature	-25°C

	Select all
	Brand ZF
	Contact Configuration Single Pole Single Throw (SPST)
	Switch Operation On-Off
	Panel Cut Out Width 13mm
	Panel Cut Out Height 19.4mm
	Contact Current Rating 20 A @ 14 V dc
	Illuminated Yes
	Actuator Colour Green
	Mounting Type Panel Mount
	IP Rating IP65
	Terminal Type Quick Connect
	Actuator Shape Rectangular
	AC Voltage Rating 125 V, 250V
	Panel Cut Out Size 19.4 x 13mm
	DC Voltage Rating 14 V, 28V
	Case Material Nylon 66
	Maximum Operating Temperature +85°C
	Contact Resistance 50mΩ
	Contact Material Silver Alloy
	Mechanical Life 100000Operations
	Operating Temperature Range -25 → +85°C
	Minimum Operating Temperature -25°C

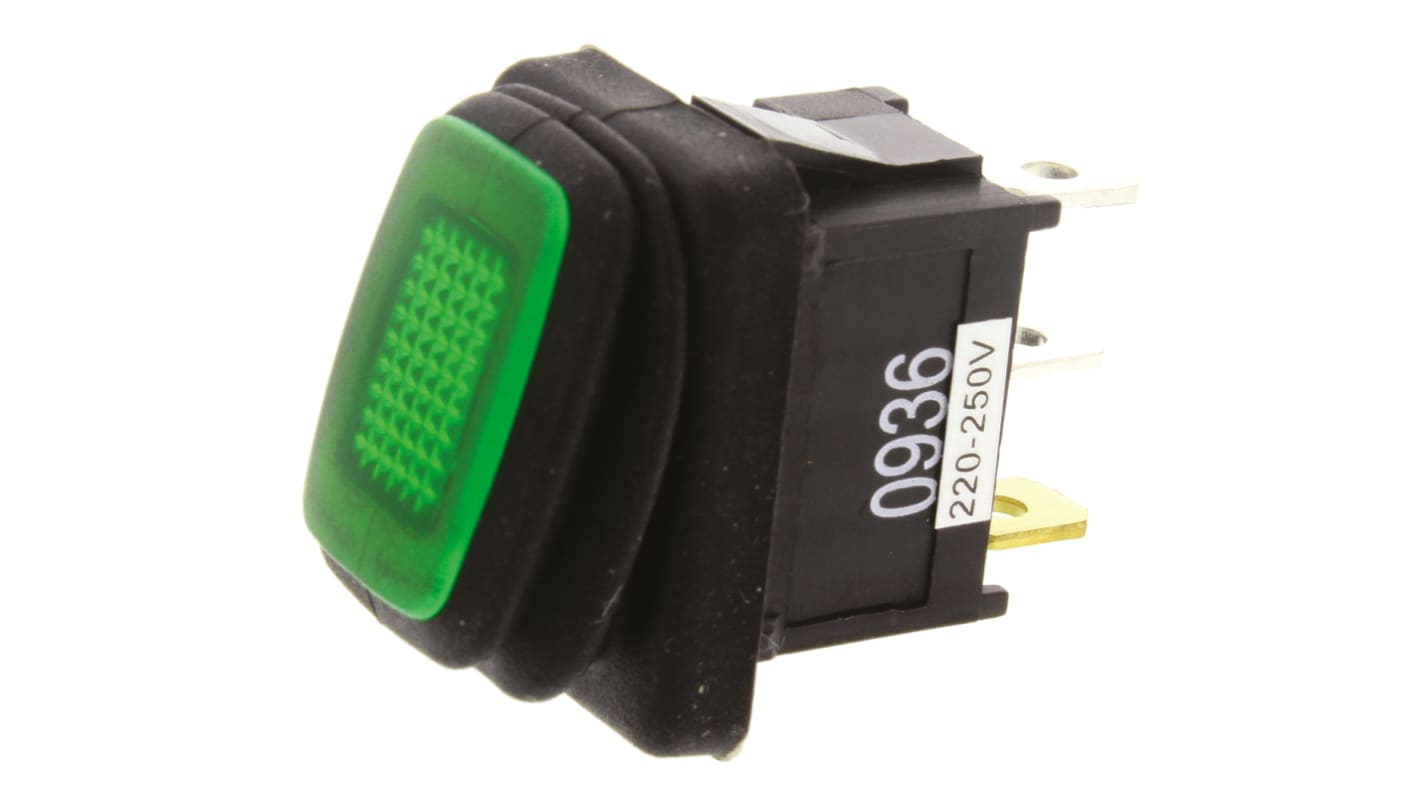

ZF Illuminated SPST, On-Off Rocker Switch Panel Mount

FREE delivery for orders over MYR500.00

KR Series Miniature Waterproof Rocker Switch

Features and Benefits:

The KR Series includes:
