TE Connectivity, PIDG Insulated Ring Terminal, M4 (#8) Stud Size, 0.26mm² to 1.65mm² Wire Size, Red
- RS Stock No.:
- 825-2088
- Mfr. Part No.:
- 32835
- Manufacturer:
- TE Connectivity

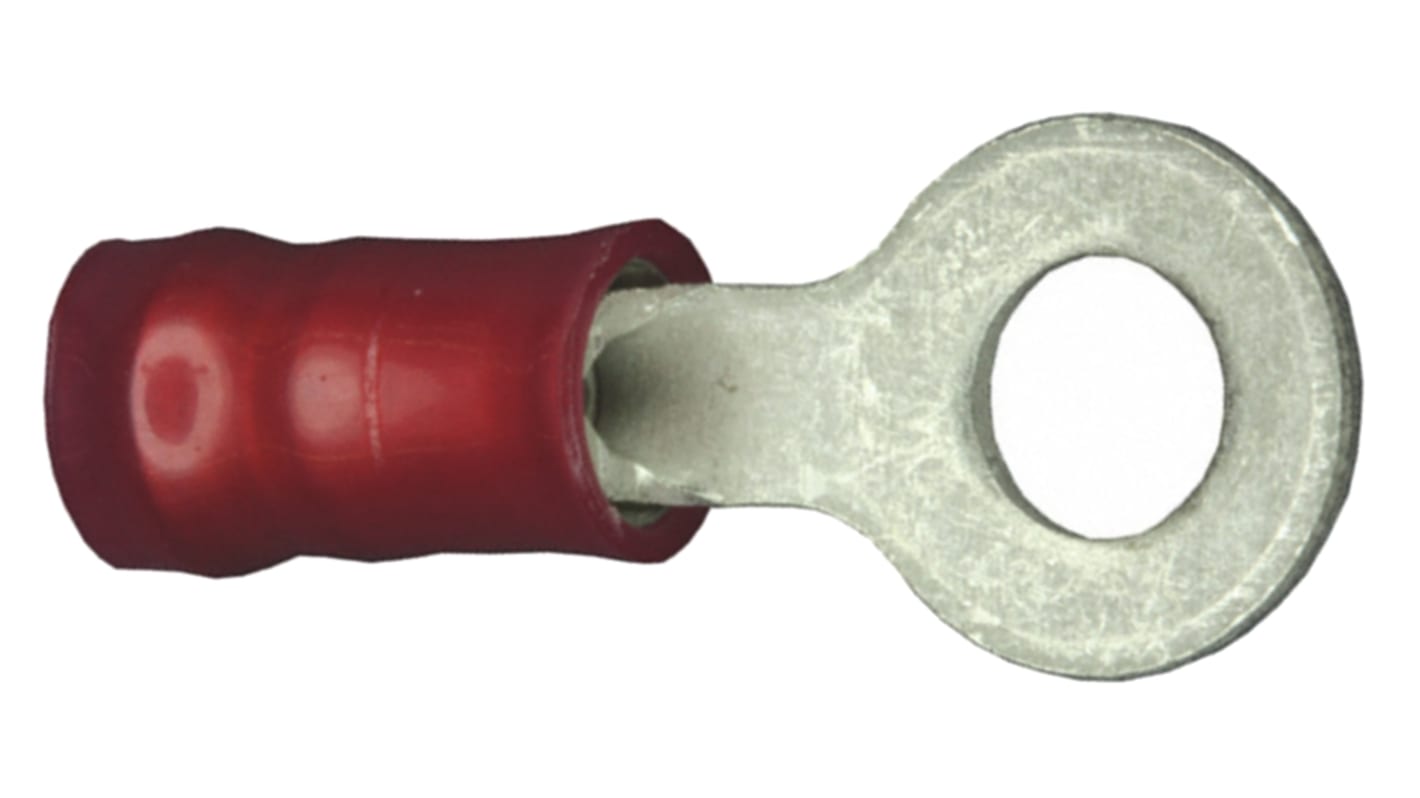

This image is representative of the product range
1 / 1
Bulk discount available
Subtotal (1 pack of 50 units)**
MYR129.85
50 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit | Per Pack** |
|---|---|---|
| 50 - 200 | MYR2.597 | MYR129.85 |
| 250 - 450 | MYR2.467 | MYR123.35 |
| 500 + | MYR2.344 | MYR117.20 |
**price indicative
- RS Stock No.:
- 825-2088
- Mfr. Part No.:
- 32835
- Manufacturer:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | PIDG | |
| Insulation | Insulated | |
| Insulation Material | Nylon | |
| Outer Ring Diameter | 8.74mm | |
| Inner Ring Diameter | 4.34mm | |
| Minimum Wire Size mm² | 0.26mm² | |
| Maximum Wire Size mm² | 1.65mm² | |
| Maximum Wire Size AWG | 16AWG | |
| Minimum Wire Size AWG | 22AWG | |
| Stud Size | M4 (#8) | |
| Colour | Red | |
| Contact Material | Copper | |
| Contact Plating | Tin | |
| Thickness | 0.79mm | |
| Overall Length | 22.25mm | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series PIDG | ||
Insulation Insulated | ||
Insulation Material Nylon | ||
Outer Ring Diameter 8.74mm | ||
Inner Ring Diameter 4.34mm | ||
Minimum Wire Size mm² 0.26mm² | ||
Maximum Wire Size mm² 1.65mm² | ||
Maximum Wire Size AWG 16AWG | ||
Minimum Wire Size AWG 22AWG | ||
Stud Size M4 (#8) | ||
Colour Red | ||
Contact Material Copper | ||
Contact Plating Tin | ||
Thickness 0.79mm | ||
Overall Length 22.25mm | ||
