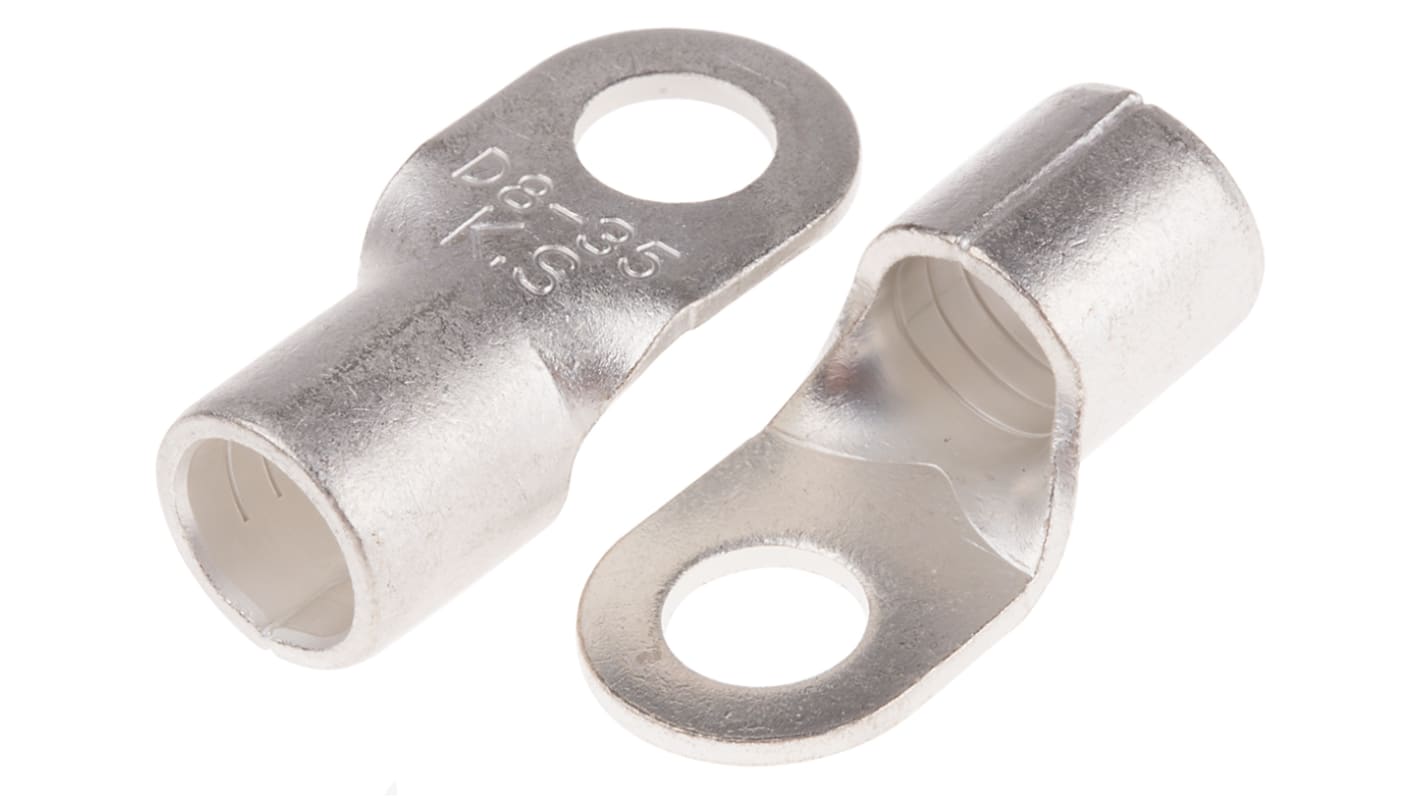

RS PRO Uninsulated Ring Terminal, 8.4mm Stud Size, 35mm² to 35mm² Wire Size
- RS Stock No.:
- 809-2322
- Distrelec Article No.:
- 304-26-084
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 pack of 25 units)**
MYR86.73
650 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit | Per Pack** |
|---|---|---|
| 25 - 100 | MYR3.469 | MYR86.725 |
| 125 - 600 | MYR3.40 | MYR85.00 |
| 625 + | MYR2.798 | MYR69.95 |
**price indicative
- RS Stock No.:
- 809-2322
- Distrelec Article No.:
- 304-26-084
- Manufacturer:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Insulation | Uninsulated | |
| Inner Ring Diameter | 8.4mm | |
| Outer Ring Diameter | 16mm | |
| Minimum Wire Size mm² | 35mm² | |
| Maximum Wire Size mm² | 35mm² | |
| Minimum Wire Size AWG | 2AWG | |
| Maximum Wire Size AWG | 2AWG | |
| Stud Size | 8.4mm | |
| Contact Plating | Tin | |
| Contact Material | Copper | |
| Thickness | 1.6mm | |
| Overall Length | 34mm | |
| Maximum Operating Temperature | +150°C | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Insulation Uninsulated | ||
Inner Ring Diameter 8.4mm | ||
Outer Ring Diameter 16mm | ||
Minimum Wire Size mm² 35mm² | ||
Maximum Wire Size mm² 35mm² | ||
Minimum Wire Size AWG 2AWG | ||
Maximum Wire Size AWG 2AWG | ||
Stud Size 8.4mm | ||
Contact Plating Tin | ||
Contact Material Copper | ||
Thickness 1.6mm | ||
Overall Length 34mm | ||
Maximum Operating Temperature +150°C | ||
Minimum Operating Temperature -40°C | ||
