Select all	Attribute	Value
	Brand	Molex
	Series	Avikrimp
	Series Number	19324
	Insulation	Insulated
	Insulation Material	Polyamide
	Inner Ring Diameter	3.29mm
	Outer Ring Diameter	6.45mm
	Minimum Wire Size mm²	0.5mm²
	Maximum Wire Size mm²	1mm²
	Minimum Wire Size AWG	20AWG
	Maximum Wire Size AWG	17AWG
	Stud Size	M3
	Colour	Red
	Contact Material	Copper Alloy
	Contact Plating	Tin
	Thickness	0.71mm
	Overall Length	17.3mm

	Select all
	Brand Molex
	Series Avikrimp
	Series Number 19324
	Insulation Insulated
	Insulation Material Polyamide
	Inner Ring Diameter 3.29mm
	Outer Ring Diameter 6.45mm
	Minimum Wire Size mm² 0.5mm²
	Maximum Wire Size mm² 1mm²
	Minimum Wire Size AWG 20AWG
	Maximum Wire Size AWG 17AWG
	Stud Size M3
	Colour Red
	Contact Material Copper Alloy
	Contact Plating Tin
	Thickness 0.71mm
	Overall Length 17.3mm

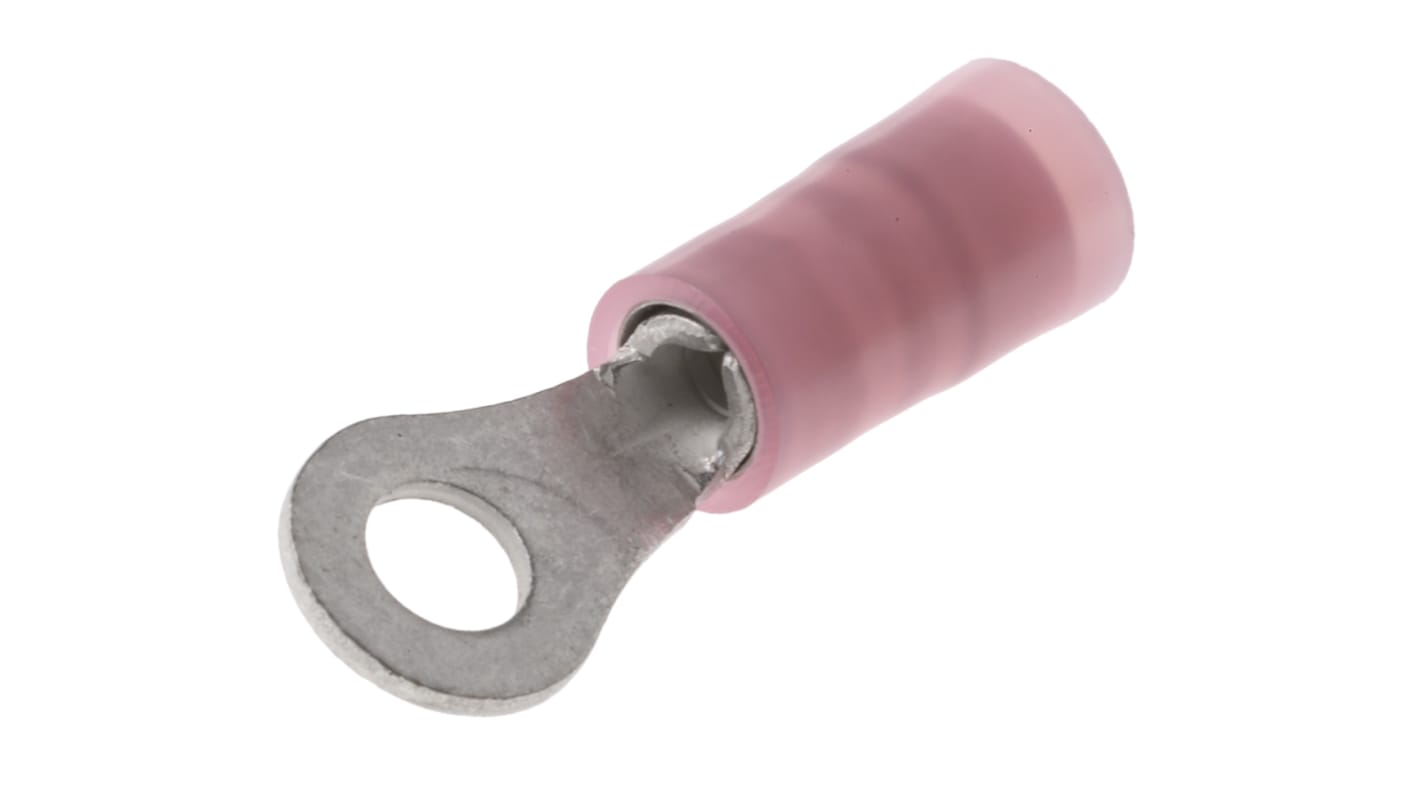

Molex, Avikrimp Insulated Ring Terminal, M3 Stud Size, 0.5mm² to 1mm² Wire Size, Red

FREE delivery for orders over MYR500.00

Molex Avikrimp Insulated Crimp Ring Terminals

Molex Avikrimp Series Ring Terminal, Polyamide Insulation Material, 17.3 mm Overall Length - 19324-0002

Features & Benefits

Applications

Will it fit wire sizes other than 0.5mm² to 1mm²?

Can it be used for outdoor applications?

Is it compatible with different stud sizes?

For these production packs, non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
