TE Connectivity, 160337 Uninsulated Crimp Ring Terminal, M6 Stud Size 18 AWG 14 AWG Wire Size, Grey
- RS Stock No.:
- 718-7609
- Distrelec Article No.:
- 304-61-077
- Mfr. Part No.:
- 160337-2
- Manufacturer:
- TE Connectivity

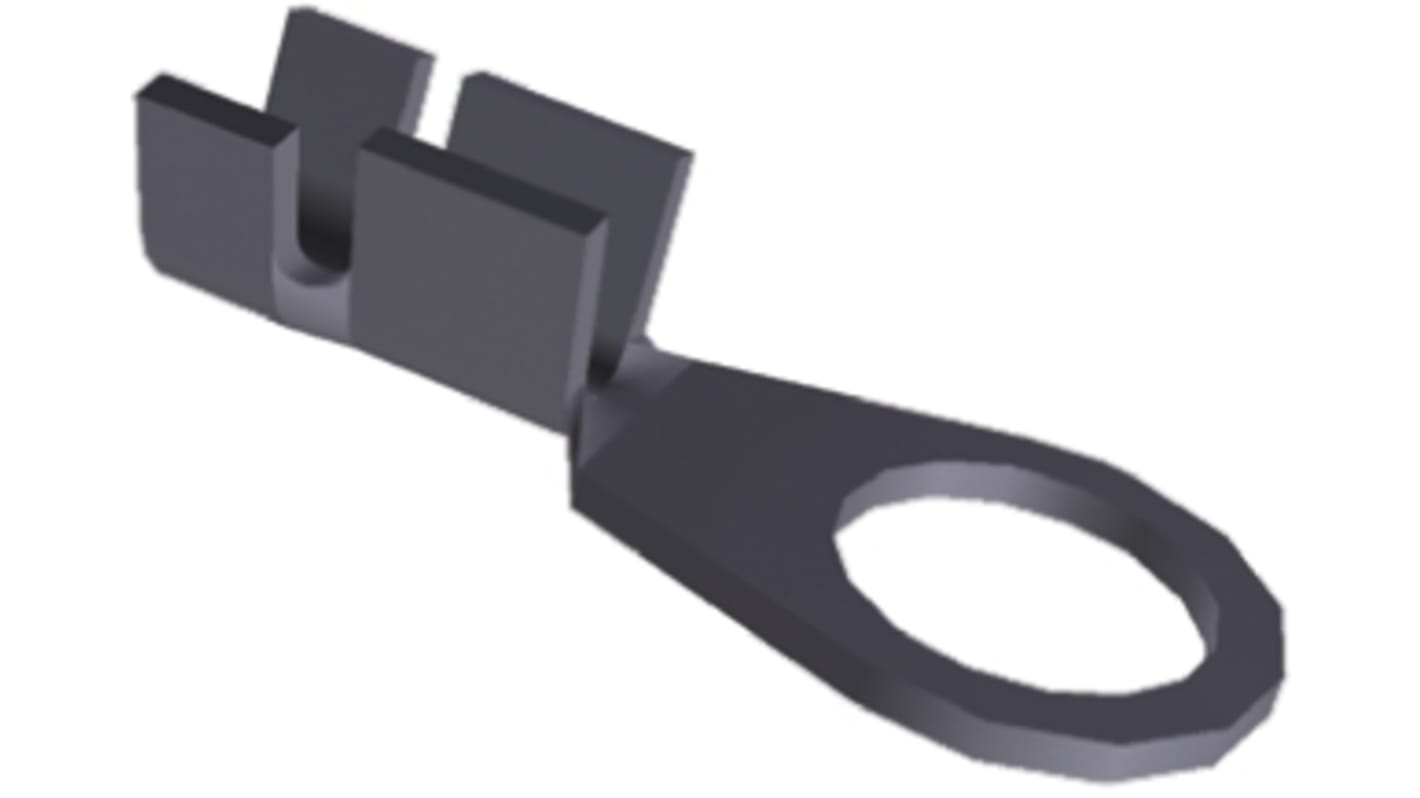

This image is representative of the product range
Subtotal (1 pack of 25 units)*
MYR32.675
FREE delivery for orders over RM 500.00
In Stock
- Plus 7,175 unit(s) shipping from 15 June 2026
- Plus 6,000 unit(s) shipping from 21 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 25 + | MYR1.307 | MYR32.68 |
*price indicative
- RS Stock No.:
- 718-7609
- Distrelec Article No.:
- 304-61-077
- Mfr. Part No.:
- 160337-2
- Manufacturer:
- TE Connectivity
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | 160337 | |
| Product Type | Crimp Ring Terminal | |
| Insulation | Uninsulated | |
| Inner Ring Diameter | 6.4mm | |
| Minimum Wire Size AWG | 18AWG | |
| Maximum Wire Size AWG | 14AWG | |
| Overall Length | 19.9mm | |
| Stud Size | M6 | |
| Colour | Grey | |
| Contact Plating | Tin | |
| Contact Material | Brass | |
| Thickness | 0.51mm | |
| Standards/Approvals | No | |
| Minimum Wire Size mm² | 0.8mm² | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 110°C | |
| Maximum Wire Size mm² | 2.1mm² | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series 160337 | ||
Product Type Crimp Ring Terminal | ||
Insulation Uninsulated | ||
Inner Ring Diameter 6.4mm | ||
Minimum Wire Size AWG 18AWG | ||
Maximum Wire Size AWG 14AWG | ||
Overall Length 19.9mm | ||
Stud Size M6 | ||
Colour Grey | ||
Contact Plating Tin | ||
Contact Material Brass | ||
Thickness 0.51mm | ||
Standards/Approvals No | ||
Minimum Wire Size mm² 0.8mm² | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 110°C | ||
Maximum Wire Size mm² 2.1mm² | ||
TE Connectivity 'F' Style Ring Tongue Crimp Terminals
A range of open barrel 'F' style ring and spade crimp terminals
