TE Connectivity, PIDG, STRATO-THERM Insulated Ring Terminal, M5 Stud Size, 0.8mm² to 1.4mm² Wire Size, Orange
- RS Stock No.:
- 710-0258
- Mfr. Part No.:
- 50836-1
- Manufacturer:
- TE Connectivity

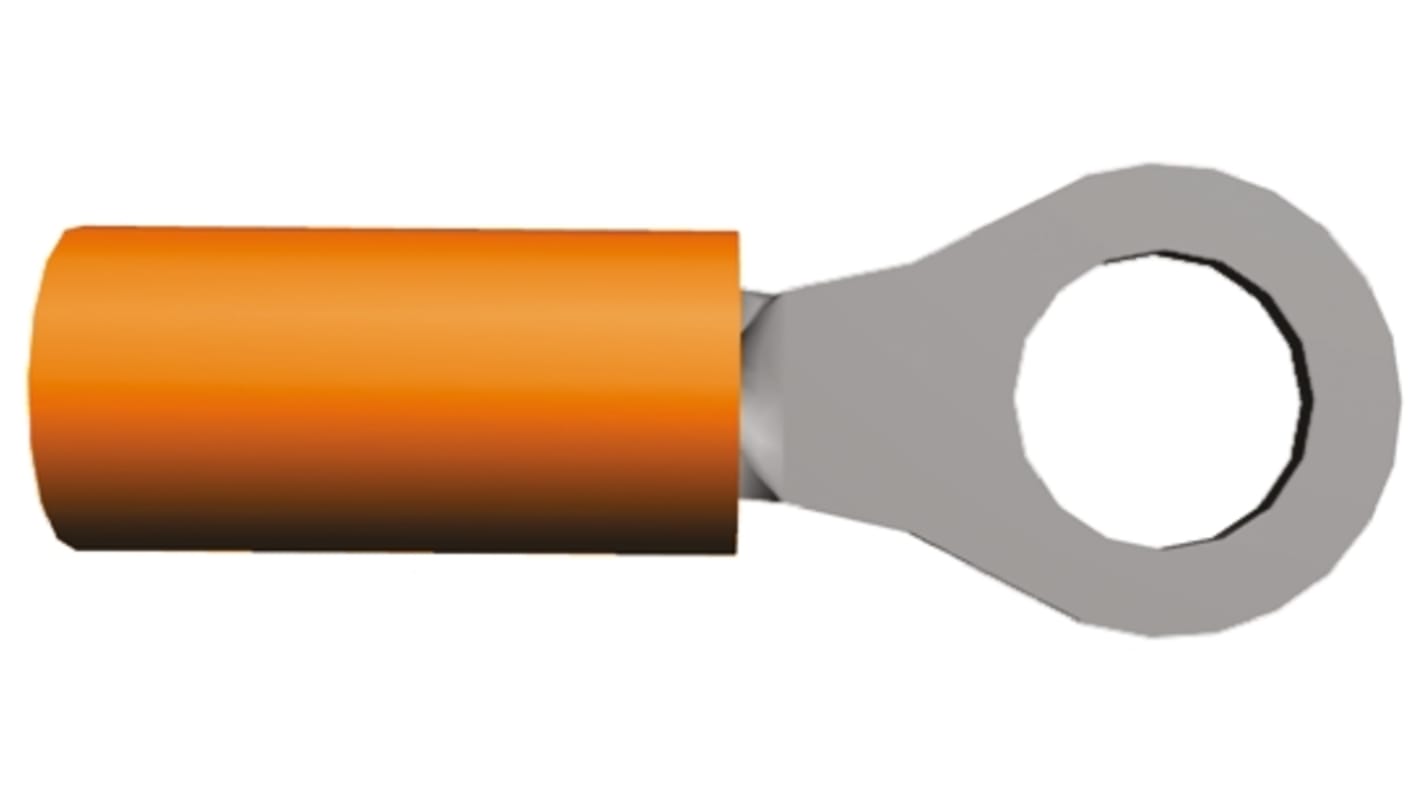

This image is representative of the product range
1 / 2
Bulk discount available
Subtotal (1 unit)**
MYR23.63
Temporarily out of stock - back order for despatch 24/05/2025, delivery within 4 working days from despatch date*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Units | Per Unit |
|---|---|
| 1 - 249 | MYR23.63 |
| 250 - 499 | MYR22.92 |
| 500 + | MYR22.21 |
**price indicative
- RS Stock No.:
- 710-0258
- Mfr. Part No.:
- 50836-1
- Manufacturer:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | PIDG, STRATO-THERM | |
| Insulation | Insulated | |
| Insulation Material | PTFE | |
| Inner Ring Diameter | 5mm | |
| Outer Ring Diameter | 7.92mm | |
| Maximum Wire Size mm² | 1.4mm² | |
| Minimum Wire Size mm² | 0.8mm² | |
| Maximum Wire Size AWG | 16AWG | |
| Minimum Wire Size AWG | 18AWG | |
| Stud Size | M5 | |
| Colour | Orange | |
| Contact Material | Copper | |
| Contact Plating | Nickel | |
| Thickness | 0.79mm | |
| Overall Length | 21.44mm | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series PIDG, STRATO-THERM | ||
Insulation Insulated | ||
Insulation Material PTFE | ||
Inner Ring Diameter 5mm | ||
Outer Ring Diameter 7.92mm | ||
Maximum Wire Size mm² 1.4mm² | ||
Minimum Wire Size mm² 0.8mm² | ||
Maximum Wire Size AWG 16AWG | ||
Minimum Wire Size AWG 18AWG | ||
Stud Size M5 | ||
Colour Orange | ||
Contact Material Copper | ||
Contact Plating Nickel | ||
Thickness 0.79mm | ||
Overall Length 21.44mm | ||
