TE Connectivity, 626034 Insulated Ring Terminal, 6.5 mm Stud Size 17 AWG 13 AWG Wire Size, Grey
- RS Stock No.:
- 680-2054
- Distrelec Article No.:
- 304-54-821
- Mfr. Part No.:
- 626034-2
- Manufacturer:
- TE Connectivity

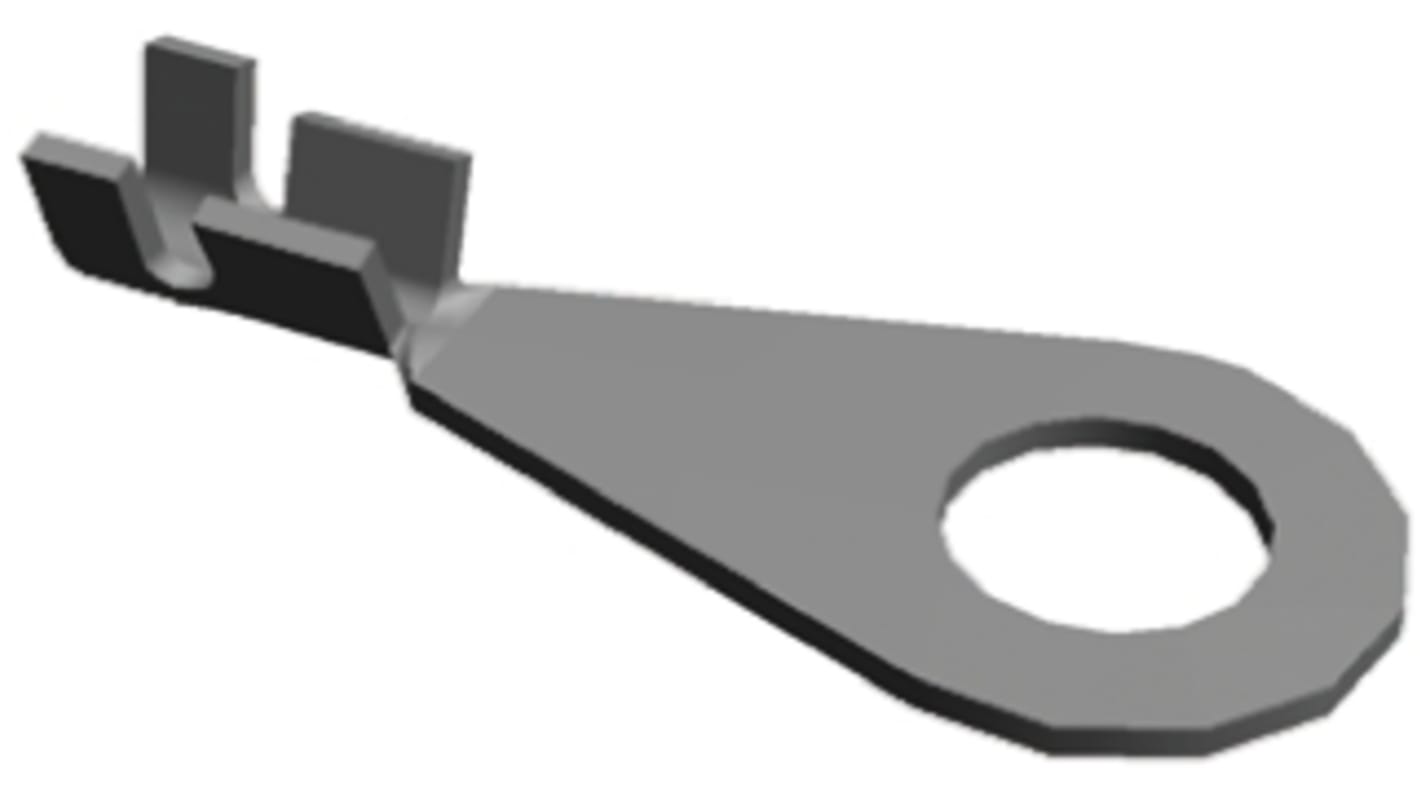

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 100 units)*
MYR58.90
FREE delivery for orders over RM 500.00
Temporarily out of stock
- 4,600 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 100 - 1200 | MYR0.589 | MYR58.90 |
| 1300 - 2400 | MYR0.576 | MYR57.60 |
| 2500 + | MYR0.564 | MYR56.40 |
*price indicative
- RS Stock No.:
- 680-2054
- Distrelec Article No.:
- 304-54-821
- Mfr. Part No.:
- 626034-2
- Manufacturer:
- TE Connectivity
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | 626034 | |
| Product Type | Ring Terminal | |
| Insulation | Insulated | |
| Outer Ring Diameter | 6.5mm | |
| Maximum Wire Size AWG | 13AWG | |
| Minimum Wire Size AWG | 17AWG | |
| Overall Length | 25.8mm | |
| Stud Size | 6.5 mm | |
| Colour | Grey | |
| Contact Plating | Tin | |
| Contact Material | Brass | |
| Thickness | 0.6mm | |
| Standards/Approvals | No | |
| Minimum Wire Size mm² | 1mm² | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series 626034 | ||
Product Type Ring Terminal | ||
Insulation Insulated | ||
Outer Ring Diameter 6.5mm | ||
Maximum Wire Size AWG 13AWG | ||
Minimum Wire Size AWG 17AWG | ||
Overall Length 25.8mm | ||
Stud Size 6.5 mm | ||
Colour Grey | ||
Contact Plating Tin | ||
Contact Material Brass | ||
Thickness 0.6mm | ||
Standards/Approvals No | ||
Minimum Wire Size mm² 1mm² | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
TE Connectivity 'F' Style Ring Tongue Crimp Terminals
A range of open barrel 'F' style ring and spade crimp terminals
