JST, R Uninsulated Ring Terminal, 4 mm Stud Size 8 AWG 8 AWG Wire Size, Grey
- RS Stock No.:
- 604-8272
- Mfr. Part No.:
- 8-4
- Manufacturer:
- JST
Bulk discount available
Subtotal (1 bag of 100 units)*
MYR103.65
FREE delivery for orders over RM 500.00
In Stock
- 21 unit(s) ready to ship from another location
- Plus 20 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per Unit* |
|---|---|---|
| 1 - 4 | MYR103.65 | MYR1.037 |
| 5 - 24 | MYR100.54 | MYR1.005 |
| 25 + | MYR97.53 | MYR0.975 |
*price indicative
- RS Stock No.:
- 604-8272
- Mfr. Part No.:
- 8-4
- Manufacturer:
- JST
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Product Type | Ring Terminal | |
| Series | R | |
| Insulation | Uninsulated | |
| Outer Ring Diameter | 12mm | |
| Inner Ring Diameter | 4.3mm | |
| Minimum Wire Size AWG | 8AWG | |
| Maximum Wire Size AWG | 8AWG | |
| Overall Length | 23.8mm | |
| Stud Size | 4 mm | |
| Colour | Grey | |
| Thickness | 1.2mm | |
| Standards/Approvals | CSA LR20812, UL | |
| Maximum Wire Size mm² | 10.5mm² | |
| Minimum Wire Size mm² | 6.6mm² | |
| Select all | ||
|---|---|---|
Brand JST | ||
Product Type Ring Terminal | ||
Series R | ||
Insulation Uninsulated | ||
Outer Ring Diameter 12mm | ||
Inner Ring Diameter 4.3mm | ||
Minimum Wire Size AWG 8AWG | ||
Maximum Wire Size AWG 8AWG | ||
Overall Length 23.8mm | ||
Stud Size 4 mm | ||
Colour Grey | ||
Thickness 1.2mm | ||
Standards/Approvals CSA LR20812, UL | ||
Maximum Wire Size mm² 10.5mm² | ||
Minimum Wire Size mm² 6.6mm² | ||
- COO (Country of Origin):
- JP

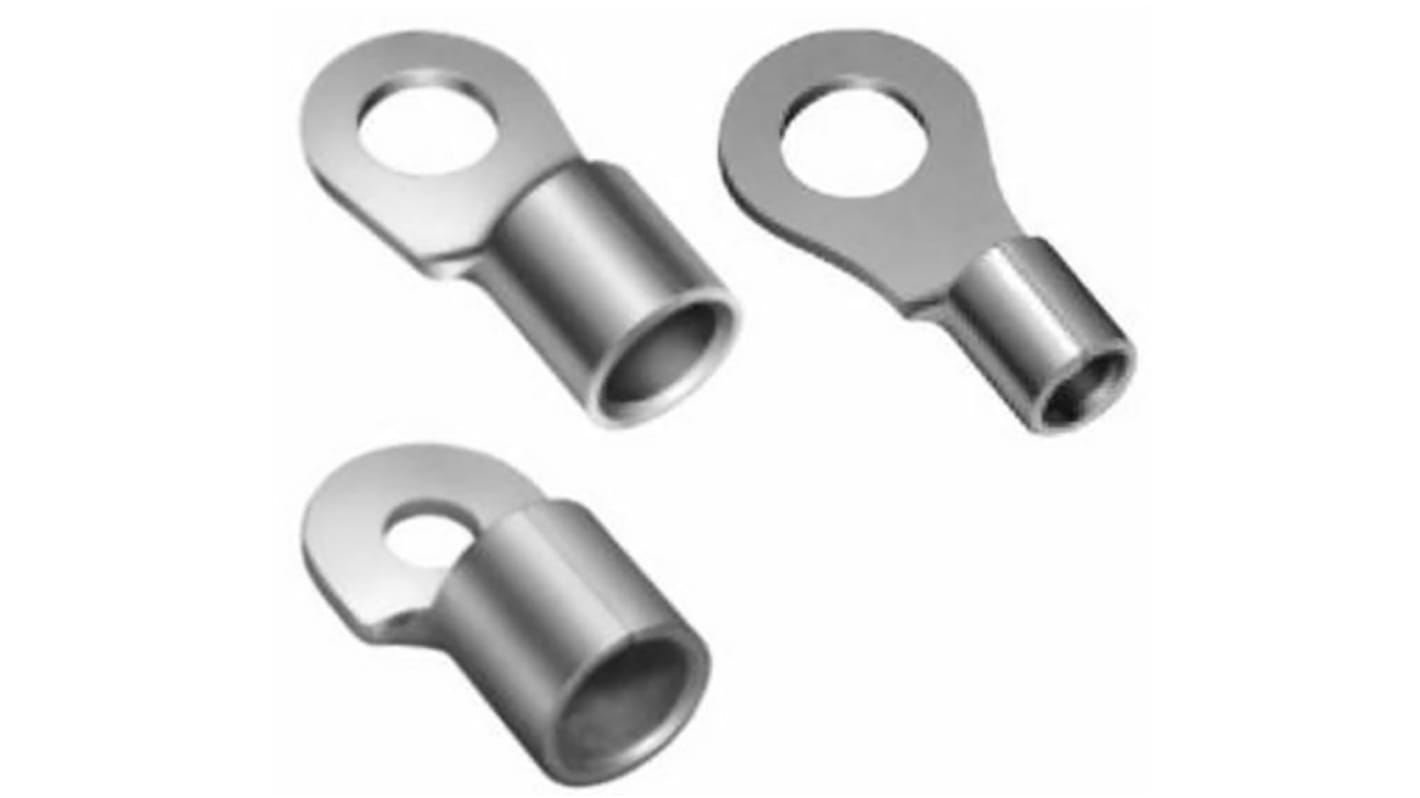

Uninsulated Crimp Ring Terminals, JST
A range of uninsulated crimp ring terminals from JST to suit stud sizes from 3 to 12mm and wire sizes from 0.2 to 10.5mm² (26 to 8 AWG). The terminals have butted seams and are made from tin-plated oxygen-free copper.
JST Terminals
Note
JST part numbers Rxxx conform to JIS C2805
Standards
• UL Listed E42024
• CSA Certified LR20812
• CSA Certified LR20812
