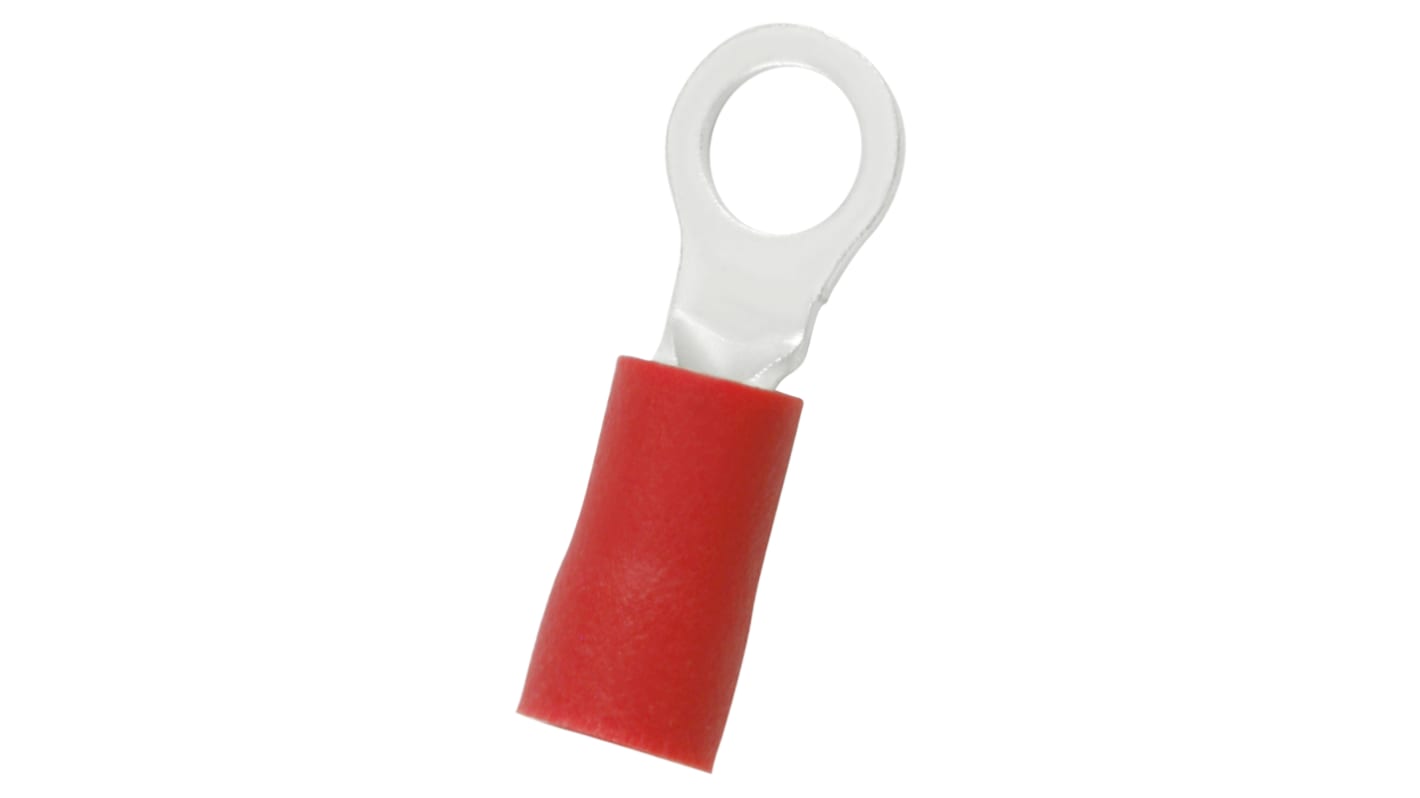

RS PRO Insulated Crimp Ring Terminal, 4.3mm Stud Size, 0.5mm² to 1.5mm² Wire Size, Red
- RS Stock No.:
- 270-7639
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 bag of 500 units)**
MYR107.00
2500 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit | Per Bag** |
|---|---|---|
| 500 - 4500 | MYR0.214 | MYR107.00 |
| 5000 - 9500 | MYR0.198 | MYR99.00 |
| 10000 + | MYR0.179 | MYR89.50 |
**price indicative
- RS Stock No.:
- 270-7639
- Manufacturer:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Series | E245391 | |
| Insulation | Insulated | |
| Insulation Material | Vinyl | |
| Inner Ring Diameter | 4.3mm | |
| Outer Ring Diameter | 6.6mm | |
| Minimum Wire Size mm² | 0.5mm² | |
| Maximum Wire Size mm² | 1.5mm² | |
| Maximum Wire Size AWG | 16AWG | |
| Minimum Wire Size AWG | 22AWG | |
| Stud Size | 4.3mm | |
| Colour | Red | |
| Contact Material | Copper | |
| Contact Plating | Tin | |
| Thickness | 0.75mm | |
| Overall Length | 19.4mm | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Series E245391 | ||
Insulation Insulated | ||
Insulation Material Vinyl | ||
Inner Ring Diameter 4.3mm | ||
Outer Ring Diameter 6.6mm | ||
Minimum Wire Size mm² 0.5mm² | ||
Maximum Wire Size mm² 1.5mm² | ||
Maximum Wire Size AWG 16AWG | ||
Minimum Wire Size AWG 22AWG | ||
Stud Size 4.3mm | ||
Colour Red | ||
Contact Material Copper | ||
Contact Plating Tin | ||
Thickness 0.75mm | ||
Overall Length 19.4mm | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40°C | ||
