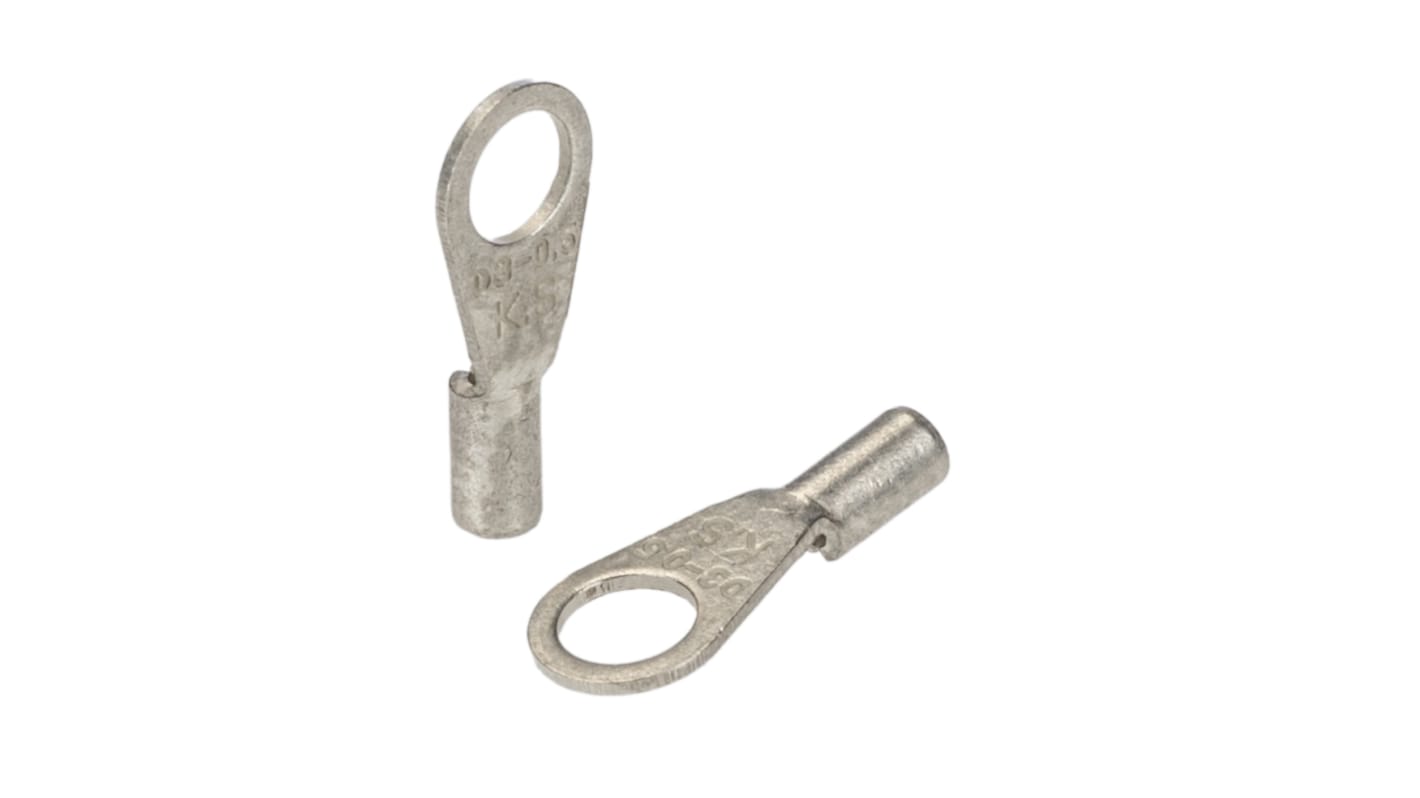

RS PRO Uninsulated Crimp Ring Terminal, 3.2mm Stud Size, 0.2mm² to 0.5mm² Wire Size, Silver
- RS Stock No.:
- 270-7474
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 bag of 500 units)**
MYR84.50
Temporarily out of stock - back order for despatch 26/11/2025, delivery within 4 working days from despatch date*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Units | Per Unit | Per Bag** |
|---|---|---|
| 500 - 4500 | MYR0.169 | MYR84.50 |
| 5000 - 9500 | MYR0.155 | MYR77.50 |
| 10000 + | MYR0.141 | MYR70.50 |
**price indicative
- RS Stock No.:
- 270-7474
- Manufacturer:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Series | E245391 | |
| Insulation | Uninsulated | |
| Outer Ring Diameter | 5mm | |
| Inner Ring Diameter | 3.2mm | |
| Minimum Wire Size mm² | 0.2mm² | |
| Maximum Wire Size mm² | 0.5mm² | |
| Minimum Wire Size AWG | 26AWG | |
| Maximum Wire Size AWG | 22AWG | |
| Stud Size | 3.2mm | |
| Colour | Silver | |
| Contact Plating | Tin | |
| Contact Material | Copper | |
| Thickness | 0.5mm | |
| Overall Length | 12.5mm | |
| Maximum Operating Temperature | +150°C | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Series E245391 | ||
Insulation Uninsulated | ||
Outer Ring Diameter 5mm | ||
Inner Ring Diameter 3.2mm | ||
Minimum Wire Size mm² 0.2mm² | ||
Maximum Wire Size mm² 0.5mm² | ||
Minimum Wire Size AWG 26AWG | ||
Maximum Wire Size AWG 22AWG | ||
Stud Size 3.2mm | ||
Colour Silver | ||
Contact Plating Tin | ||
Contact Material Copper | ||
Thickness 0.5mm | ||
Overall Length 12.5mm | ||
Maximum Operating Temperature +150°C | ||
Minimum Operating Temperature -40°C | ||
