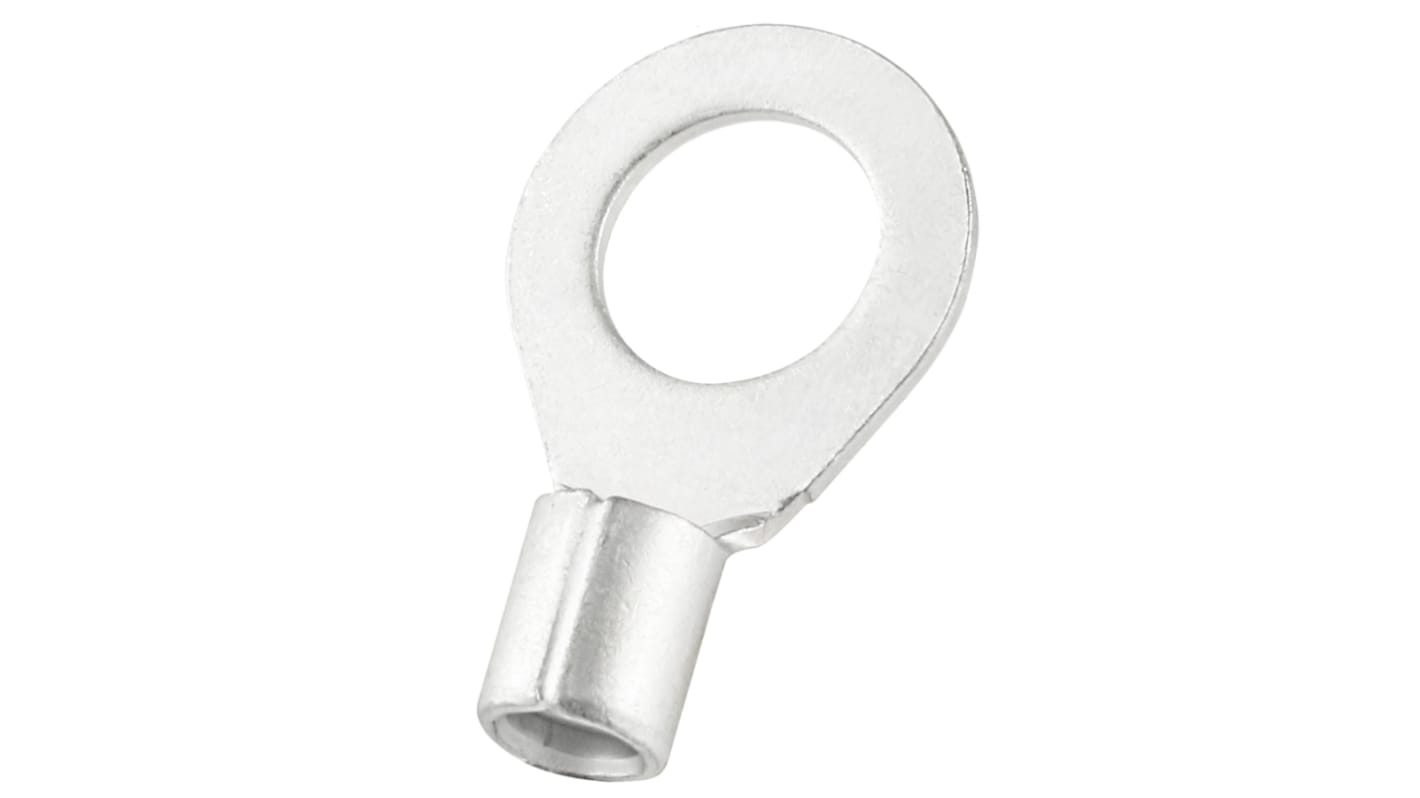

RS PRO Uninsulated Crimp Ring Terminal, 10.5mm Stud Size, 10mm² to 10mm² Wire Size, Silver
- RS Stock No.:
- 270-7472
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 bag of 500 units)**
MYR782.50
6000 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit | Per Bag** |
|---|---|---|
| 500 - 2000 | MYR1.565 | MYR782.50 |
| 2500 - 4500 | MYR1.197 | MYR598.50 |
| 5000 + | MYR1.014 | MYR507.00 |
**price indicative
- RS Stock No.:
- 270-7472
- Manufacturer:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Series | E245391 | |
| Insulation | Uninsulated | |
| Outer Ring Diameter | 18mm | |
| Inner Ring Diameter | 10.5mm | |
| Maximum Wire Size mm² | 10mm² | |
| Minimum Wire Size mm² | 10mm² | |
| Minimum Wire Size AWG | 8AWG | |
| Maximum Wire Size AWG | 8AWG | |
| Stud Size | 10.5mm | |
| Colour | Silver | |
| Contact Plating | Tin | |
| Contact Material | Copper | |
| Thickness | 1.1mm | |
| Overall Length | 30mm | |
| Maximum Operating Temperature | +150°C | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Series E245391 | ||
Insulation Uninsulated | ||
Outer Ring Diameter 18mm | ||
Inner Ring Diameter 10.5mm | ||
Maximum Wire Size mm² 10mm² | ||
Minimum Wire Size mm² 10mm² | ||
Minimum Wire Size AWG 8AWG | ||
Maximum Wire Size AWG 8AWG | ||
Stud Size 10.5mm | ||
Colour Silver | ||
Contact Plating Tin | ||
Contact Material Copper | ||
Thickness 1.1mm | ||
Overall Length 30mm | ||
Maximum Operating Temperature +150°C | ||
Minimum Operating Temperature -40°C | ||
