MECATRACTION, C Uninsulated Tubular Ring Terminal, M12 Stud Size, Grey
- RS Stock No.:
- 200-7086
- Mfr. Part No.:
- C2-240-12CT
- Manufacturer:
- MECATRACTION
Bulk discount available
Subtotal (1 box of 2 units)*
MYR187.50
FREE delivery for orders over RM 500.00
In Stock
- 28 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Box* |
|---|---|---|
| 2 - 8 | MYR93.75 | MYR187.50 |
| 10 + | MYR84.385 | MYR168.77 |
*price indicative
- RS Stock No.:
- 200-7086
- Mfr. Part No.:
- C2-240-12CT
- Manufacturer:
- MECATRACTION
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MECATRACTION | |
| Series | C | |
| Product Type | Tubular Ring Terminal | |
| Insulation | Uninsulated | |
| Outer Ring Diameter | 37mm | |
| Inner Ring Diameter | 12.8mm | |
| Overall Length | 85.5mm | |
| Stud Size | M12 | |
| Colour | Grey | |
| Contact Material | Copper | |
| Contact Plating | Tin | |
| Standards/Approvals | NF C 33-090-1 | |
| Maximum Wire Size mm² | 240mm² | |
| Select all | ||
|---|---|---|
Brand MECATRACTION | ||
Series C | ||
Product Type Tubular Ring Terminal | ||
Insulation Uninsulated | ||
Outer Ring Diameter 37mm | ||
Inner Ring Diameter 12.8mm | ||
Overall Length 85.5mm | ||
Stud Size M12 | ||
Colour Grey | ||
Contact Material Copper | ||
Contact Plating Tin | ||
Standards/Approvals NF C 33-090-1 | ||
Maximum Wire Size mm² 240mm² | ||
C2-240-12CT

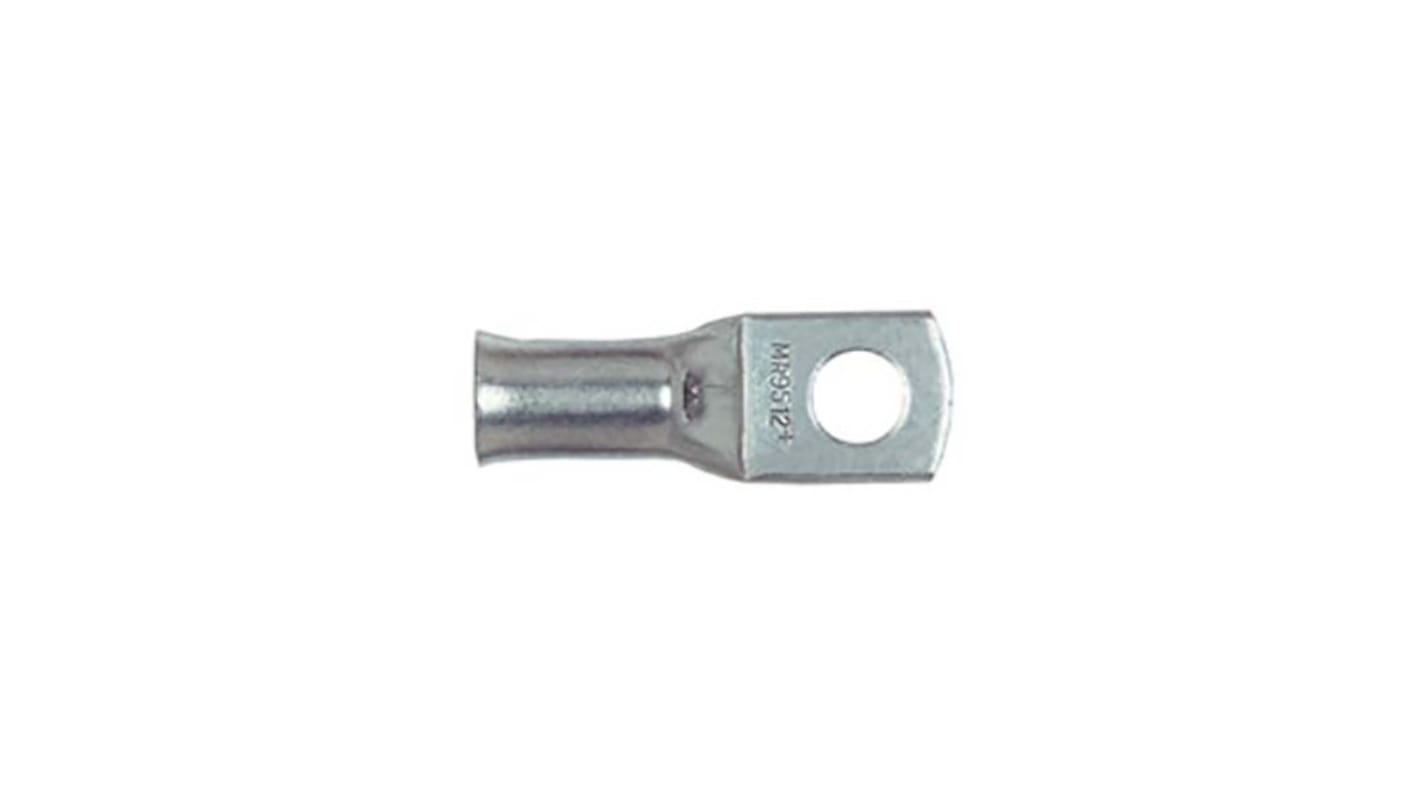

The Mecatraction copper tubular lug for 240mm² conductor size.
Electrolytic tin-plating process
Bell entry from 10 mm²
