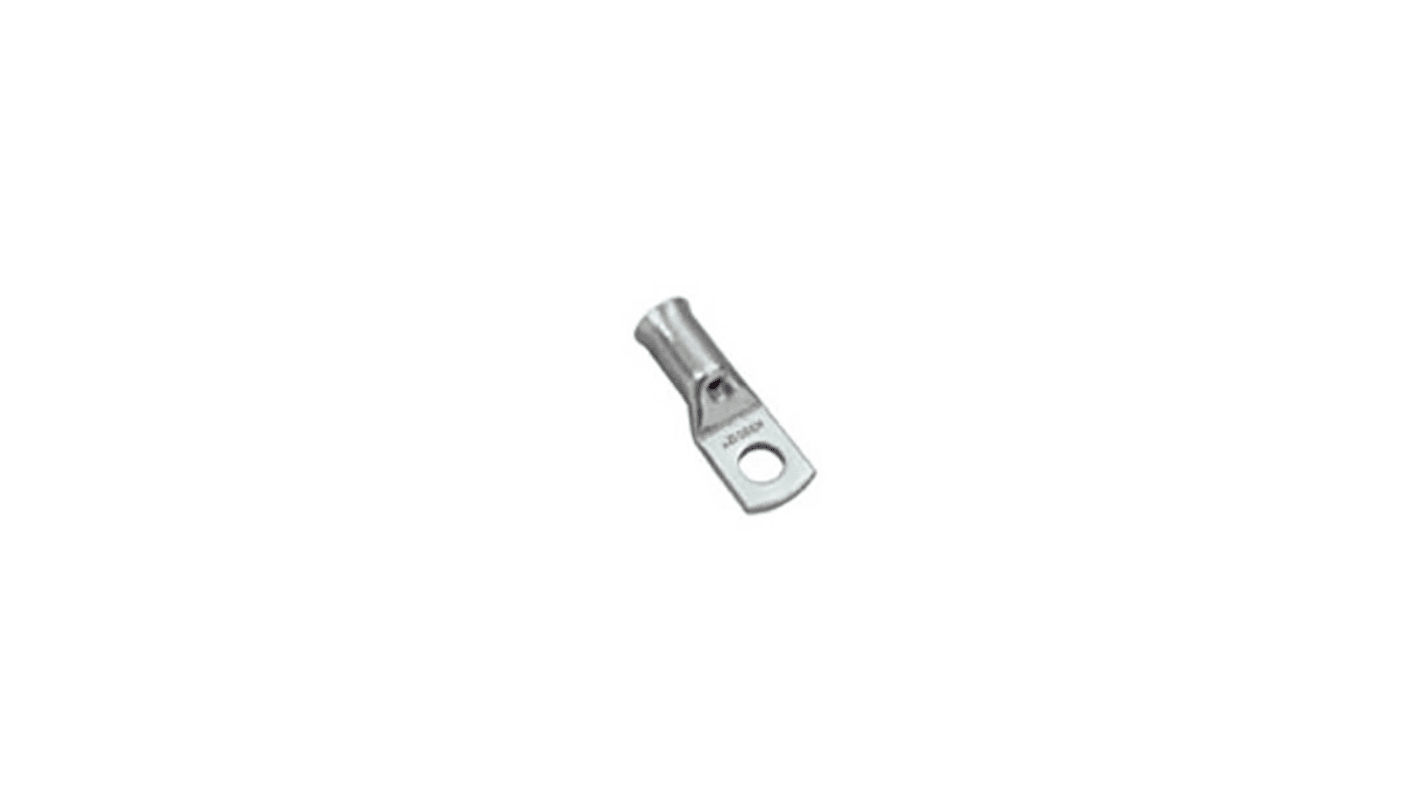

MECATRACTION, C Uninsulated Ring Terminal, 8 mm Stud Size 4 AWG Wire Size, Grey
- RS Stock No.:
- 200-7045
- Mfr. Part No.:
- C15-25-8CT
- Manufacturer:
- MECATRACTION
Bulk discount available
Subtotal (1 box of 15 units)*
MYR99.705
FREE delivery for orders over RM 500.00
Last RS stock
- Final 705 unit(s), ready to ship from another location
Units | Per Unit | Per Box* |
|---|---|---|
| 15 - 60 | MYR6.647 | MYR99.71 |
| 75 + | MYR5.983 | MYR89.75 |
*price indicative
- RS Stock No.:
- 200-7045
- Mfr. Part No.:
- C15-25-8CT
- Manufacturer:
- MECATRACTION
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MECATRACTION | |
| Product Type | Ring Terminal | |
| Series | C | |
| Insulation | Uninsulated | |
| Outer Ring Diameter | 16mm | |
| Inner Ring Diameter | 8.4mm | |
| Maximum Wire Size AWG | 4AWG | |
| Overall Length | 41.6mm | |
| Stud Size | 8 mm | |
| Colour | Grey | |
| Contact Plating | Tin | |
| Contact Material | Copper | |
| Standards/Approvals | RoHS, ANSI/ESD S20.20:2021 Electrostatic Control Standard | |
| Maximum Wire Size mm² | 25mm² | |
| Select all | ||
|---|---|---|
Brand MECATRACTION | ||
Product Type Ring Terminal | ||
Series C | ||
Insulation Uninsulated | ||
Outer Ring Diameter 16mm | ||
Inner Ring Diameter 8.4mm | ||
Maximum Wire Size AWG 4AWG | ||
Overall Length 41.6mm | ||
Stud Size 8 mm | ||
Colour Grey | ||
Contact Plating Tin | ||
Contact Material Copper | ||
Standards/Approvals RoHS, ANSI/ESD S20.20:2021 Electrostatic Control Standard | ||
Maximum Wire Size mm² 25mm² | ||
C15-25-8CT
The Mecatraction copper tubular lug for 25mm² conductor size.
Electrolytic tin-plating process
Bell entry from 10 mm²
