MECATRACTION, N Insulated Ring Terminal, M6 Stud Size to 6mm² Wire Size, Yellow

View all Ring Terminals
Bulk discount available

Subtotal (1 box of 100 units)*

MYR174.50

Add to Basket
Select or type quantity
In Stock
  • 1,100 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
Per Box*
100 - 400MYR1.745MYR174.50
500 +MYR1.57MYR157.00

*price indicative

SEA- RSPROC&C-PDP-1025
RS Stock No.:
200-6992
Mfr. Part No.:
C100NC2-6
Manufacturer:
MECATRACTION
Find similar products by selecting one or more attributes.
Select all

Brand

MECATRACTION

Series

N

Series Number

C100

Insulation

Insulated

Insulation Material

Polyamide

Inner Ring Diameter

6.3mm

Outer Ring Diameter

13.8mm

Maximum Wire Size mm²

6mm²

Stud Size

M6

Colour

Yellow

Contact Plating

Tin

Contact Material

Copper

Overall Length

32mm

RoHS Status: Exempt

C100NC2-6

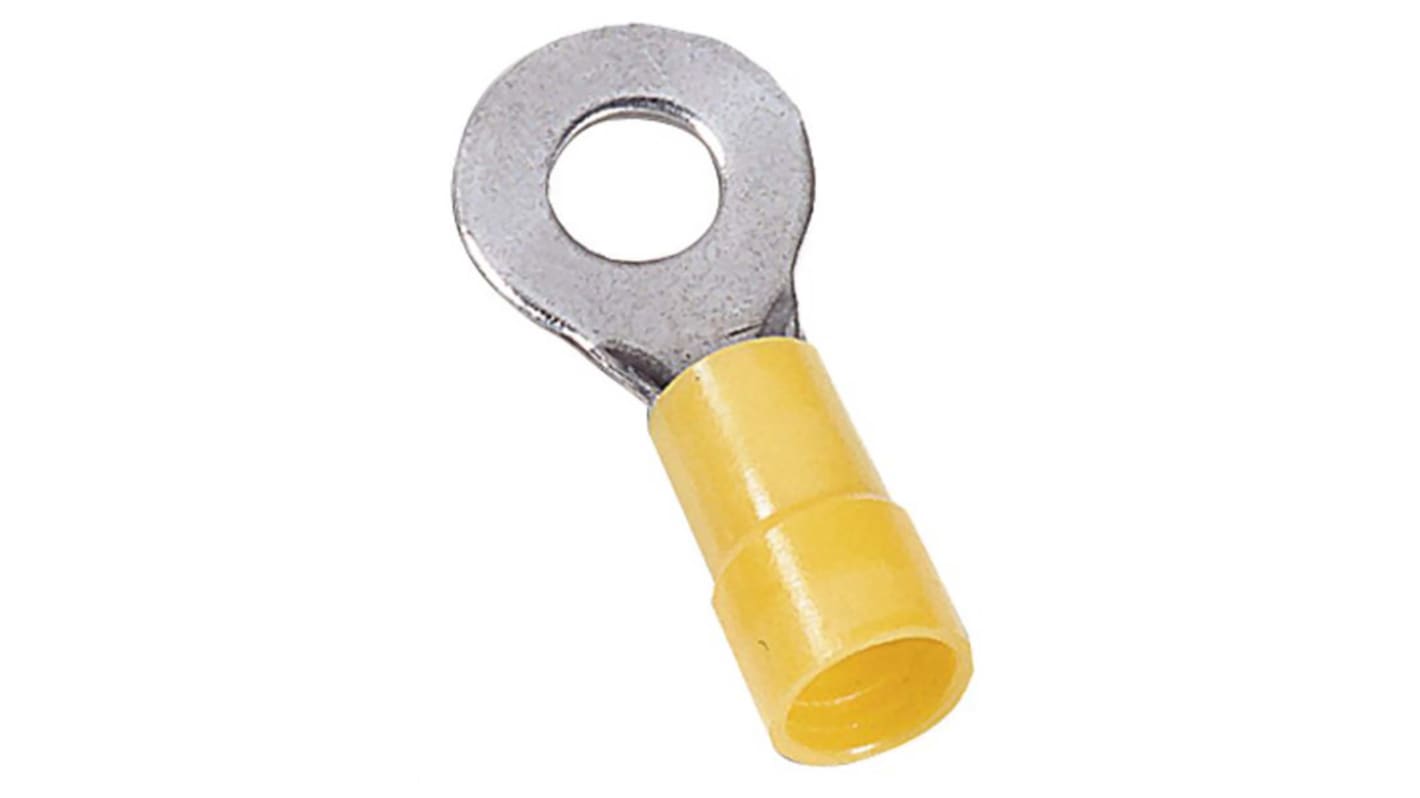

The Mecatraction preinsulated ring terminal.

Tin-plated copper
Barrel with funnel entry
Grooves in the barrel for a better electrical contact and a better tensile strength
Polyamide insulation sleeve.
Maximum operating temperature: +105°C
“Easy entry” conical entry
Flammability rating: UL94V2
