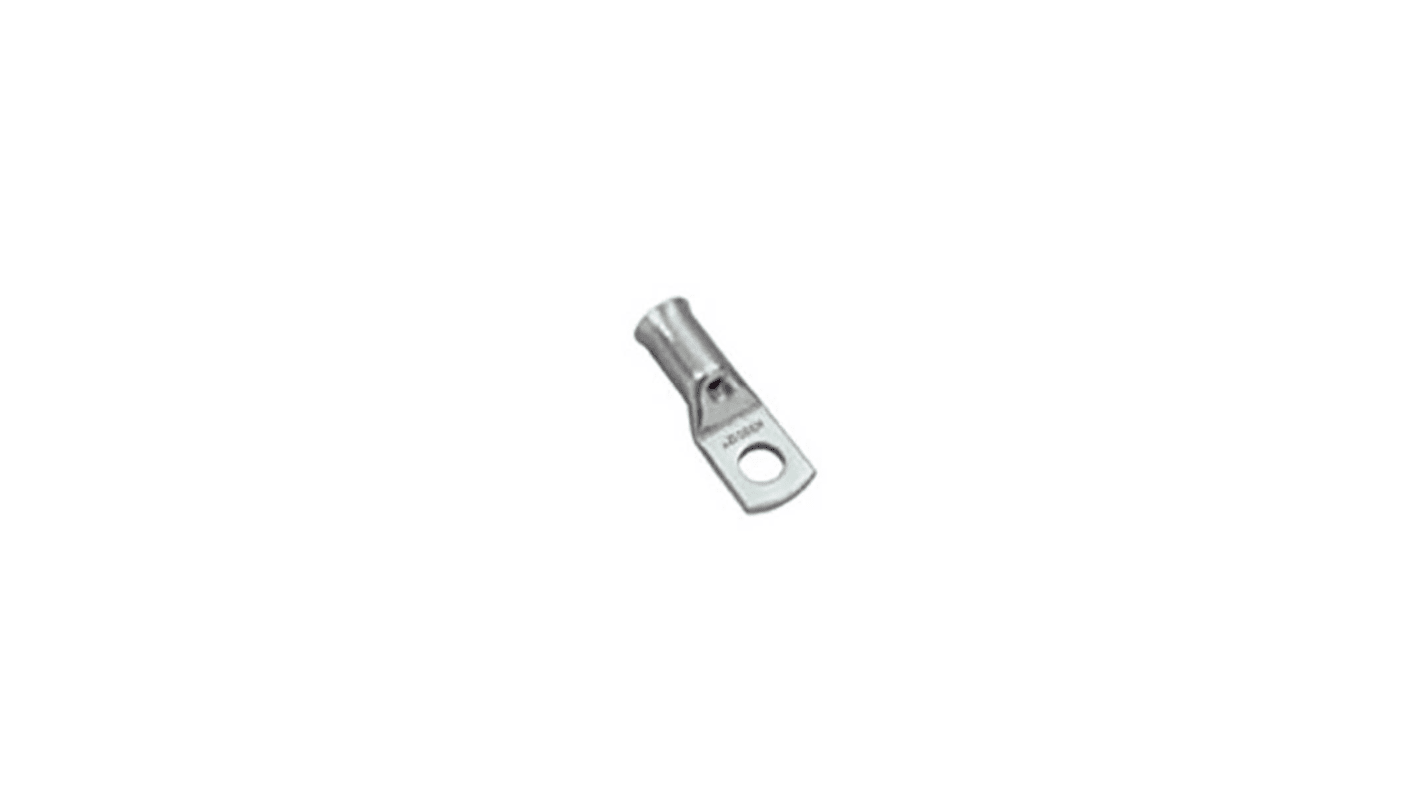

MECATRACTION, C Uninsulated Tubular Ring Terminal, M5 Stud Size to 6mm² Wire Size
- RS Stock No.:
- 200-6964
- Mfr. Part No.:
- C50-6-5C
- Manufacturer:
- MECATRACTION
Bulk discount available
Subtotal (1 box of 50 units)*
MYR175.30
FREE delivery for orders over RM 500.00
In Stock
- 300 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Box* |
|---|---|---|
| 50 - 200 | MYR3.506 | MYR175.30 |
| 250 + | MYR3.156 | MYR157.80 |
*price indicative
- RS Stock No.:
- 200-6964
- Mfr. Part No.:
- C50-6-5C
- Manufacturer:
- MECATRACTION
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MECATRACTION | |
| Series | C | |
| Insulation | Uninsulated | |
| Inner Ring Diameter | 5.2mm | |
| Outer Ring Diameter | 13mm | |
| Maximum Wire Size mm² | 6mm² | |
| Stud Size | M5 | |
| Contact Material | Copper | |
| Contact Plating | Tin | |
| Overall Length | 31.5mm | |
| Select all | ||
|---|---|---|
Brand MECATRACTION | ||
Series C | ||
Insulation Uninsulated | ||
Inner Ring Diameter 5.2mm | ||
Outer Ring Diameter 13mm | ||
Maximum Wire Size mm² 6mm² | ||
Stud Size M5 | ||
Contact Material Copper | ||
Contact Plating Tin | ||
Overall Length 31.5mm | ||
C50-6-5C
The Mecatraction copper tubular lug for 6mm² conductor size.
Electrolytic tin-plating process
Bell entry from 10 mm²
Bell entry from 10 mm²
