MECATRACTION, C Uninsulated Tubular Ring Terminal, M14 Stud Size 0000 AWG Wire Size, Grey

View all Ring Terminals
Bulk discount available
View bulk pricing options

Subtotal (1 box of 5 units)*

MYR135.37

Add to Basket
Select or type quantity
In Stock
  • 50 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per Unit
Per Box*
5 - 20MYR27.074MYR135.37
25 +MYR24.368MYR121.84

*price indicative

RS Stock No.:
200-6894
Mfr. Part No.:
C5-120-14CT
Manufacturer:
MECATRACTION
Find similar products by selecting one or more attributes.
Select all

Brand

MECATRACTION

Product Type

Tubular Ring Terminal

Series

C

Insulation

Uninsulated

Outer Ring Diameter

28mm

Inner Ring Diameter

14.6mm

Maximum Wire Size AWG

0000AWG

Overall Length

75.5mm

Stud Size

M14

Colour

Grey

Contact Plating

Tin

Contact Material

Copper

Standards/Approvals

RoHS, ANSI/ESD S20.20:2021 Electrostatic Control Standard

Maximum Operating Temperature

110°C

Maximum Wire Size mm²

120mm²

C5-120-14CT

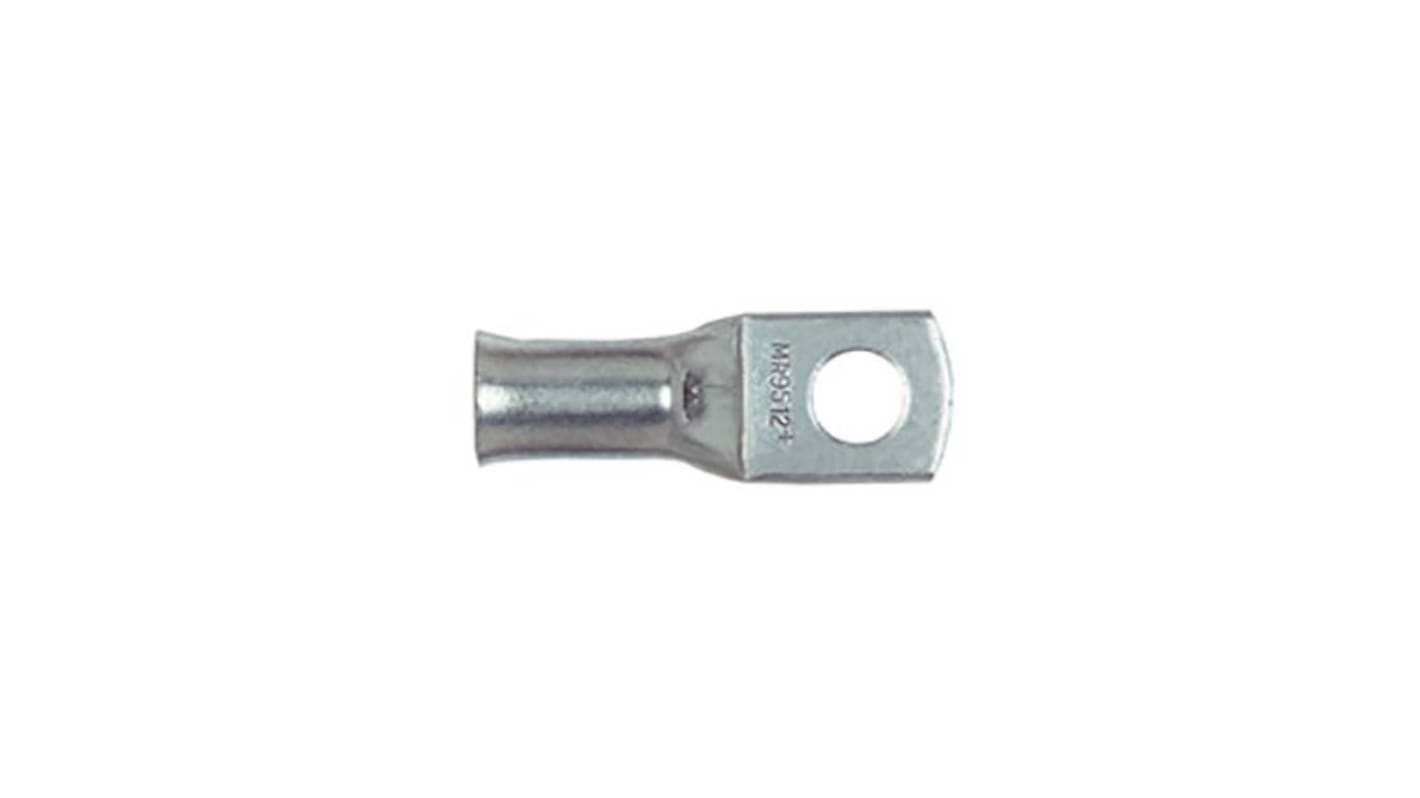

The Mecatraction copper tubular lug for 120mm² conductor size.

Electrolytic tin-plating process

Bell entry from 10 mm²
