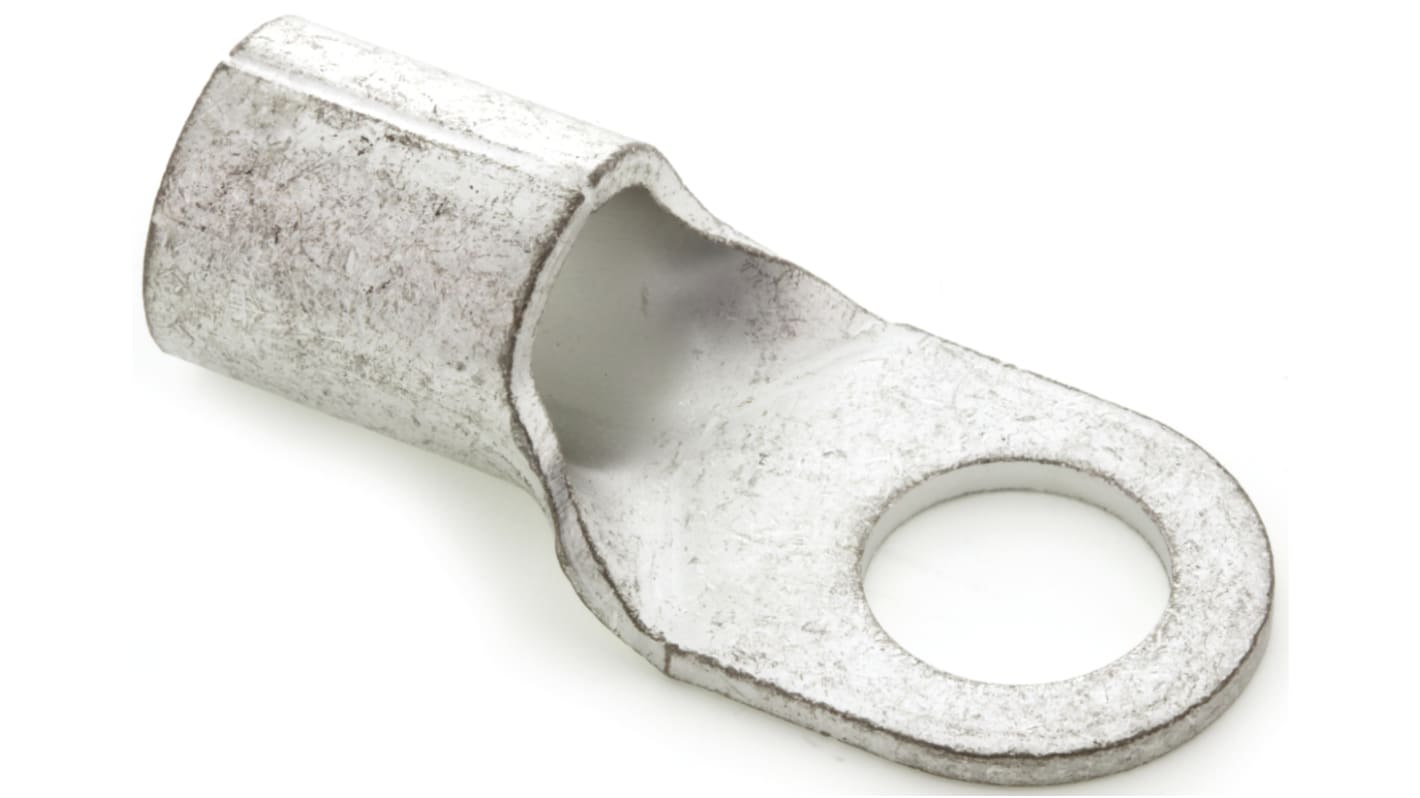

JST, R Uninsulated Ring Terminal, 12mm Stud Size, 42.4mm² to 60.57mm² Wire Size
- RS Stock No.:
- 166-7337
- Mfr. Part No.:
- 60-12
- Manufacturer:
- JST
Bulk discount available
Subtotal (1 box of 50 units)**
MYR459.45
Temporarily out of stock - back order for despatch 28/12/2025, delivery within 4 working days from despatch date*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Units | Per Unit | Per Box** |
|---|---|---|
| 50 - 200 | MYR9.189 | MYR459.45 |
| 250 + | MYR8.271 | MYR413.55 |
**price indicative
- RS Stock No.:
- 166-7337
- Mfr. Part No.:
- 60-12
- Manufacturer:
- JST
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Series | R | |
| Insulation | Uninsulated | |
| Inner Ring Diameter | 13mm | |
| Outer Ring Diameter | 22mm | |
| Maximum Wire Size mm² | 60.57mm² | |
| Minimum Wire Size mm² | 42.4mm² | |
| Maximum Wire Size AWG | 1/0AWG | |
| Minimum Wire Size AWG | 1/0AWG | |
| Stud Size | 12mm | |
| Thickness | 2mm | |
| Overall Length | 49.7mm | |
Select all | ||
|---|---|---|
Brand JST | ||
Series R | ||
Insulation Uninsulated | ||
Inner Ring Diameter 13mm | ||
Outer Ring Diameter 22mm | ||
Maximum Wire Size mm² 60.57mm² | ||
Minimum Wire Size mm² 42.4mm² | ||
Maximum Wire Size AWG 1/0AWG | ||
Minimum Wire Size AWG 1/0AWG | ||
Stud Size 12mm | ||
Thickness 2mm | ||
Overall Length 49.7mm | ||
