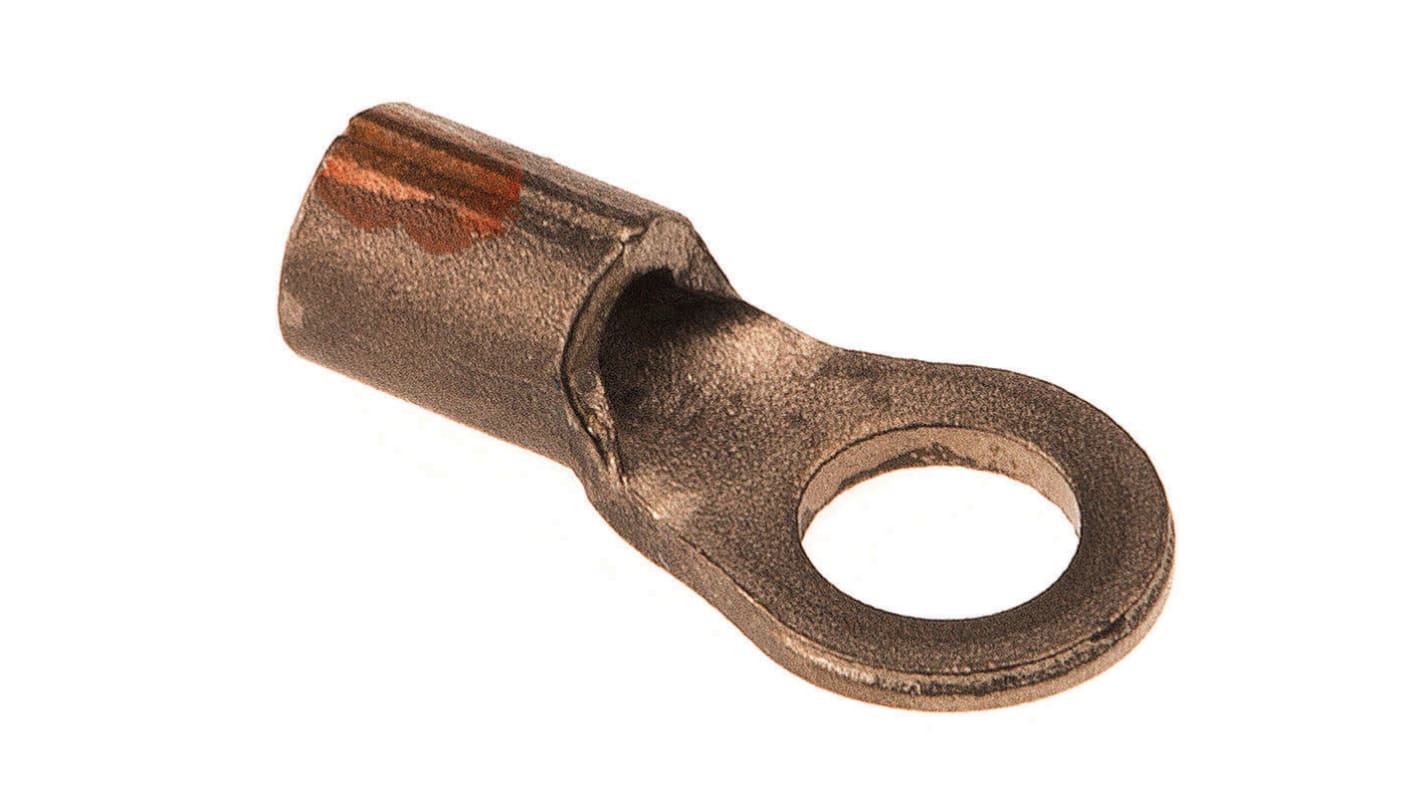

TE Connectivity, STRATO-THERM Uninsulated Ring Terminal, M3 Stud Size, 0.26mm² to 1.65mm² Wire Size
- RS Stock No.:
- 164-1627
- Mfr. Part No.:
- 321885
- Manufacturer:
- TE Connectivity
Bulk discount available
Subtotal (1 box of 1000 units)**
MYR6,306.30
Temporarily out of stock - back order for despatch 16/12/2025, delivery within 4 working days from despatch date*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Box(es) | Per Box | Per Unit** |
|---|---|---|
| 1 - 1 | MYR6,306.30 | MYR6.306 |
| 2 - 3 | MYR6,167.55 | MYR6.168 |
| 4 + | MYR6,054.00 | MYR6.054 |
**price indicative
- RS Stock No.:
- 164-1627
- Mfr. Part No.:
- 321885
- Manufacturer:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | STRATO-THERM | |
| Insulation | Uninsulated | |
| Inner Ring Diameter | 3.35mm | |
| Outer Ring Diameter | 5.54mm | |
| Maximum Wire Size mm² | 1.65mm² | |
| Minimum Wire Size mm² | 0.26mm² | |
| Minimum Wire Size AWG | 22AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Stud Size | M3 | |
| Contact Material | Nickel | |
| Thickness | 0.75mm | |
| Overall Length | 11.4mm | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series STRATO-THERM | ||
Insulation Uninsulated | ||
Inner Ring Diameter 3.35mm | ||
Outer Ring Diameter 5.54mm | ||
Maximum Wire Size mm² 1.65mm² | ||
Minimum Wire Size mm² 0.26mm² | ||
Minimum Wire Size AWG 22AWG | ||
Maximum Wire Size AWG 16AWG | ||
Stud Size M3 | ||
Contact Material Nickel | ||
Thickness 0.75mm | ||
Overall Length 11.4mm | ||
