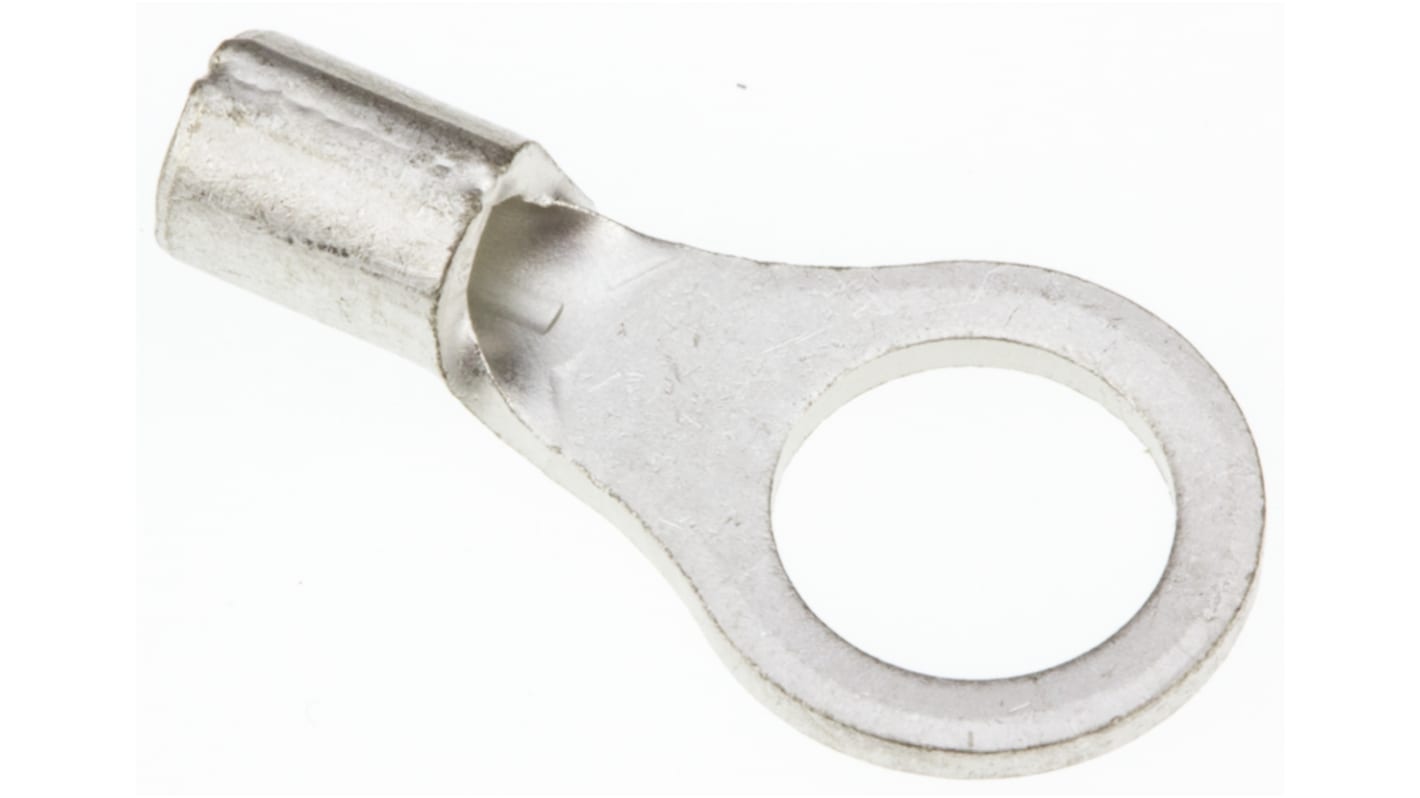

JST, R Uninsulated Ring Terminal, 5mm Stud Size, 0.25mm² to 1.65mm² Wire Size
- RS Stock No.:
- 161-7852
- Mfr. Part No.:
- 1.25-5
- Manufacturer:
- JST
Bulk discount available
Subtotal (1 box of 1000 units)**
MYR176.39
Temporarily out of stock - back order for despatch 06/01/2026, delivery within 4 working days from despatch date*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Box(es) | Per Box | Per Unit** |
|---|---|---|
| 1 - 4 | MYR176.39 | MYR0.176 |
| 5 + | MYR158.74 | MYR0.159 |
**price indicative
- RS Stock No.:
- 161-7852
- Mfr. Part No.:
- 1.25-5
- Manufacturer:
- JST
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Series | R | |
| Insulation | Uninsulated | |
| Inner Ring Diameter | 5.3mm | |
| Outer Ring Diameter | 8mm | |
| Minimum Wire Size mm² | 0.25mm² | |
| Maximum Wire Size mm² | 1.65mm² | |
| Minimum Wire Size AWG | 22AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Stud Size | 5mm | |
| Thickness | 0.8mm | |
| Overall Length | 15.8mm | |
Select all | ||
|---|---|---|
Brand JST | ||
Series R | ||
Insulation Uninsulated | ||
Inner Ring Diameter 5.3mm | ||
Outer Ring Diameter 8mm | ||
Minimum Wire Size mm² 0.25mm² | ||
Maximum Wire Size mm² 1.65mm² | ||
Minimum Wire Size AWG 22AWG | ||
Maximum Wire Size AWG 16AWG | ||
Stud Size 5mm | ||
Thickness 0.8mm | ||
Overall Length 15.8mm | ||
