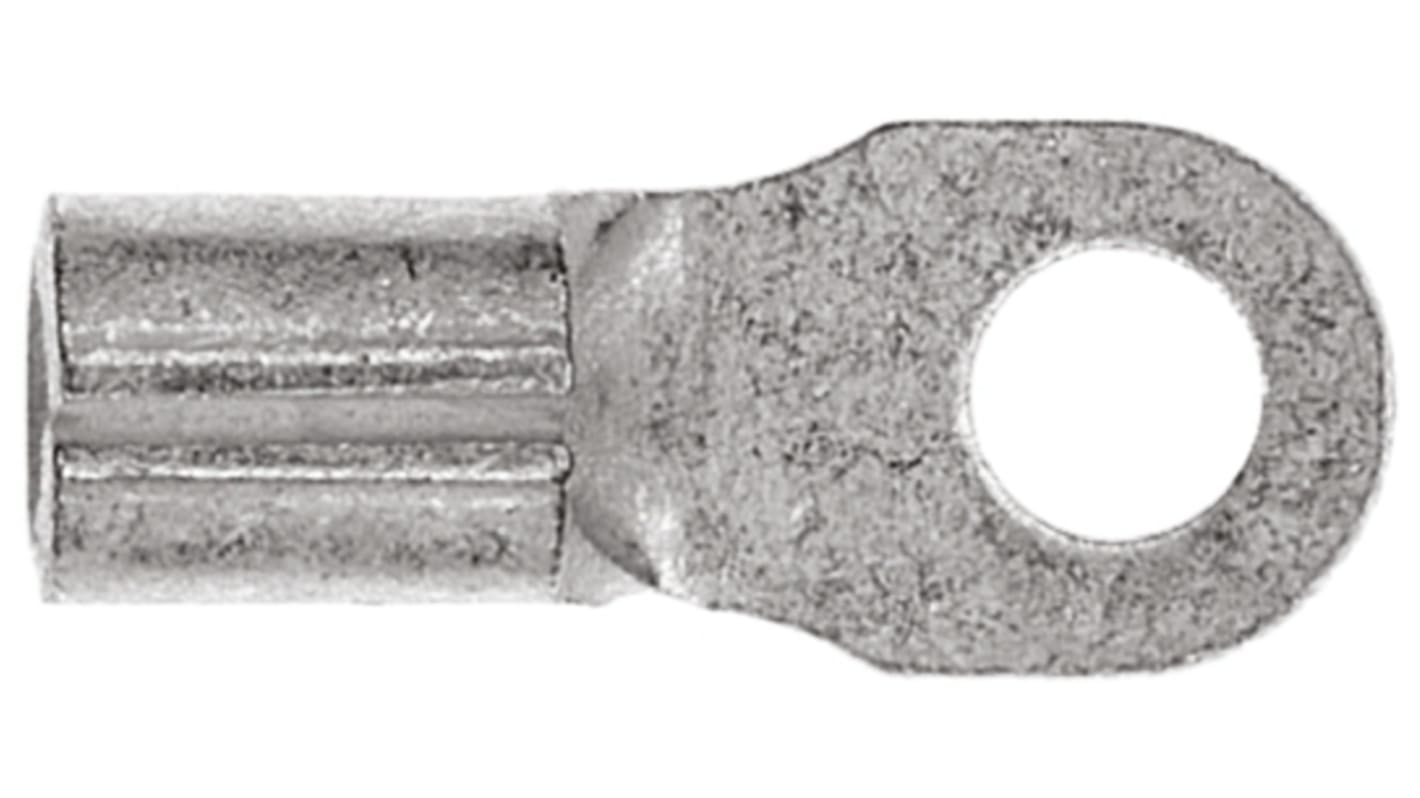

TE Connectivity, Budget Uninsulated Ring Terminal, M2 (#2) Stud Size, 0.26mm² to 1.65mm² Wire Size
- RS Stock No.:
- 161-5212
- Mfr. Part No.:
- 320677
- Manufacturer:
- TE Connectivity
Bulk discount available
Subtotal (1 box of 1000 units)**
MYR856.52
Temporarily out of stock - back order for despatch 10/09/2025, delivery within 4 working days from despatch date*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Box(es) | Per Box | Per Unit** |
|---|---|---|
| 1 - 4 | MYR856.52 | MYR0.857 |
| 5 + | MYR830.80 | MYR0.831 |
**price indicative
- RS Stock No.:
- 161-5212
- Mfr. Part No.:
- 320677
- Manufacturer:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | Budget | |
| Insulation | Uninsulated | |
| Inner Ring Diameter | 2.36mm | |
| Outer Ring Diameter | 4.62mm | |
| Minimum Wire Size mm² | 0.26mm² | |
| Maximum Wire Size mm² | 1.65mm² | |
| Minimum Wire Size AWG | 22AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Stud Size | M2 (#2) | |
| Contact Material | Copper | |
| Contact Plating | Tin | |
| Thickness | 0.79mm | |
| Overall Length | 11.33mm | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series Budget | ||
Insulation Uninsulated | ||
Inner Ring Diameter 2.36mm | ||
Outer Ring Diameter 4.62mm | ||
Minimum Wire Size mm² 0.26mm² | ||
Maximum Wire Size mm² 1.65mm² | ||
Minimum Wire Size AWG 22AWG | ||
Maximum Wire Size AWG 16AWG | ||
Stud Size M2 (#2) | ||
Contact Material Copper | ||
Contact Plating Tin | ||
Thickness 0.79mm | ||
Overall Length 11.33mm | ||
