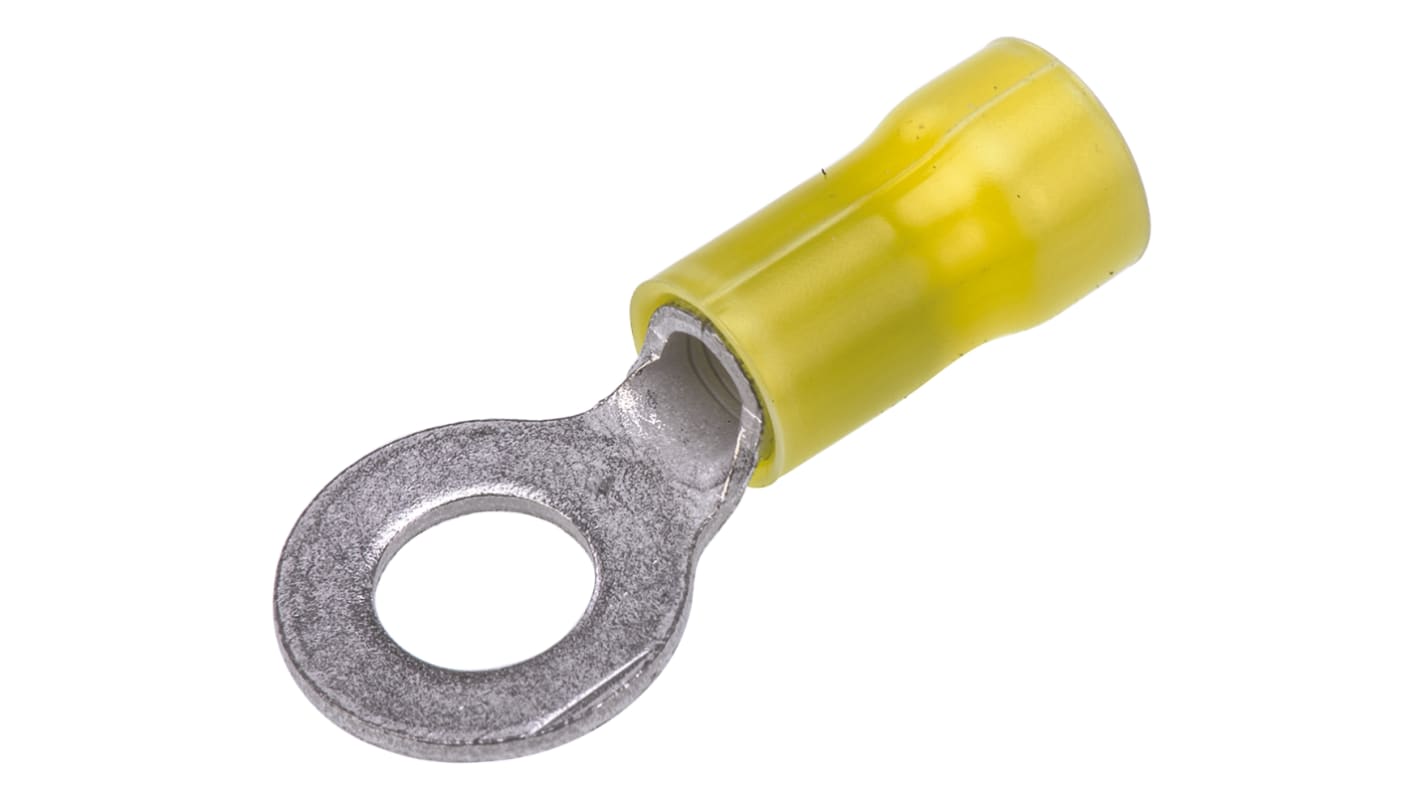

TE Connectivity, PLASTI-GRIP Insulated Ring Terminal, M6 Stud Size, 3mm² to 6mm² Wire Size, Yellow
- RS Stock No.:
- 161-4876
- Mfr. Part No.:
- 165035
- Manufacturer:
- TE Connectivity
Bulk discount available
Subtotal (1 box of 500 units)**
MYR893.00
2000 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit | Per Box** |
|---|---|---|
| 500 - 500 | MYR1.786 | MYR893.00 |
| 1000 - 1500 | MYR1.747 | MYR873.50 |
| 2000 + | MYR1.715 | MYR857.50 |
**price indicative
- RS Stock No.:
- 161-4876
- Mfr. Part No.:
- 165035
- Manufacturer:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | PLASTI-GRIP | |
| Insulation | Insulated | |
| Insulation Material | Vinyl | |
| Outer Ring Diameter | 12.7mm | |
| Inner Ring Diameter | 6.7mm | |
| Maximum Wire Size mm² | 6mm² | |
| Minimum Wire Size mm² | 3mm² | |
| Minimum Wire Size AWG | 12AWG | |
| Maximum Wire Size AWG | 10AWG | |
| Stud Size | M6 | |
| Colour | Yellow | |
| Contact Plating | Tin | |
| Contact Material | Copper | |
| Overall Length | 30.07mm | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series PLASTI-GRIP | ||
Insulation Insulated | ||
Insulation Material Vinyl | ||
Outer Ring Diameter 12.7mm | ||
Inner Ring Diameter 6.7mm | ||
Maximum Wire Size mm² 6mm² | ||
Minimum Wire Size mm² 3mm² | ||
Minimum Wire Size AWG 12AWG | ||
Maximum Wire Size AWG 10AWG | ||
Stud Size M6 | ||
Colour Yellow | ||
Contact Plating Tin | ||
Contact Material Copper | ||
Overall Length 30.07mm | ||
