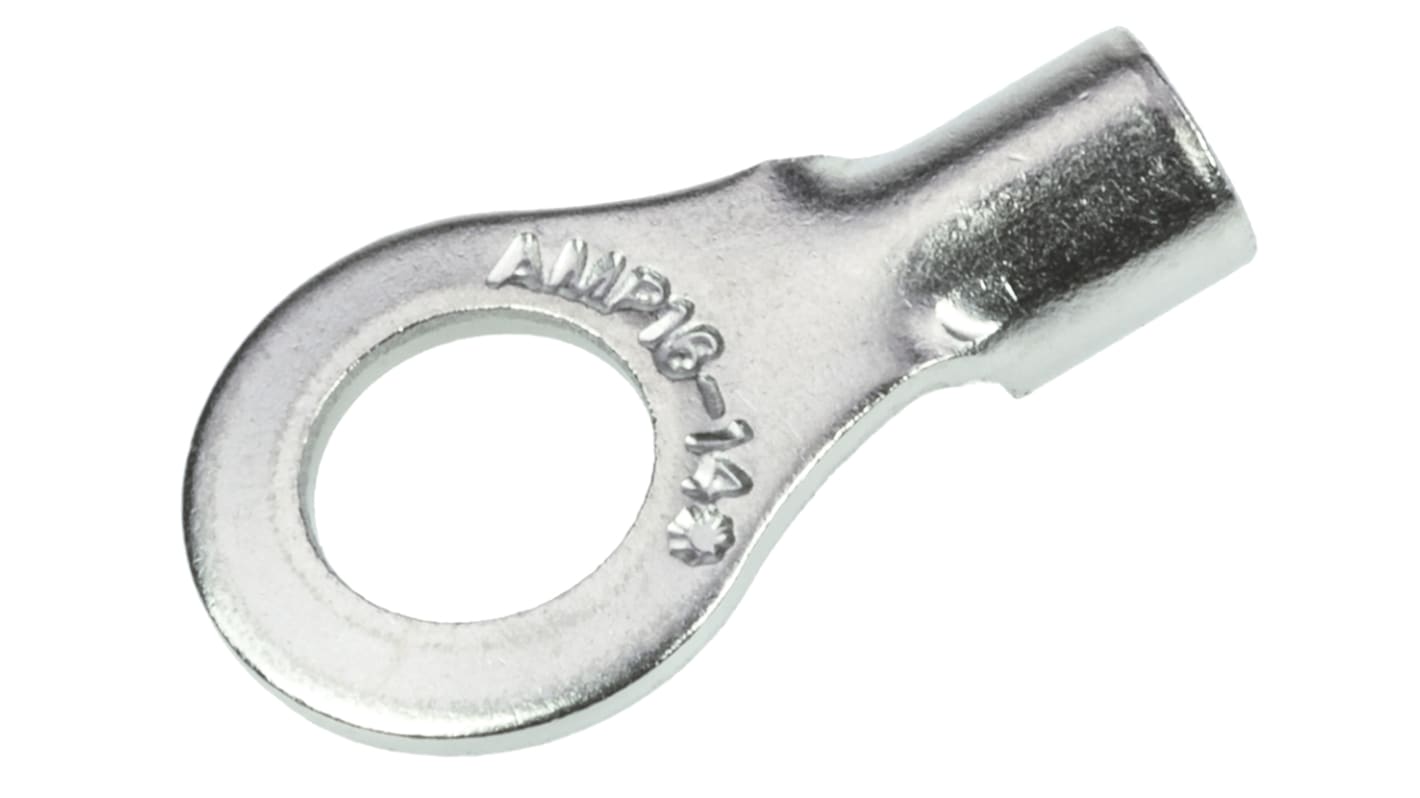

TE Connectivity, STRATO-THERM Uninsulated Ring Terminal, M5 Stud Size, 1mm² to 2.6mm² Wire Size
- RS Stock No.:
- 161-1190
- Mfr. Part No.:
- 322695
- Manufacturer:
- TE Connectivity
120 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
2580 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 10)
Was MYR1.72
You pay
MYR1.634
| Units | Per Unit | Per Pack* |
| 10 - 240 | MYR1.634 | MYR16.34 |
| 250 - 490 | MYR1.591 | MYR15.91 |
| 500 + | MYR1.552 | MYR15.52 |
| *price indicative | ||
- RS Stock No.:
- 161-1190
- Mfr. Part No.:
- 322695
- Manufacturer:
- TE Connectivity
Technical data sheets
Legislation and Compliance
Product Details
TE Connectivity SOLISTRAND STRATO-THERM Heat Resistant Ring Tongue Crimp Terminals
SOLISTRAND STRATO-THERM heat resistant ring tongue crimp terminals for use where operating temperatures prevent standard insulated crimps being used. These STRATO-THERM heat resistant ring tongue crimp terminals are made from nickel plated electrolytic copper and are designed to terminate solid and/or stranded conductors. When the terminal is crimped the wire inside is forced into the serrations or dimples of the barrel to maximise the electrical contact area after crimping. The maximum operating temperature for these STRATO-THERM heat resistant ring tongue crimp terminals is 343°C (650°F)
Note
For suitable hand crimp tool see stock number 162-3159
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
TE Connectivity STRATO-THERM Terminals and Splices
Specifications
Attribute | Value |
|---|---|
| Series | STRATO-THERM |
| Insulation | Uninsulated |
| Outer Ring Diameter | 8.71mm |
| Inner Ring Diameter | 5mm |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size AWG | 14AWG |
| Minimum Wire Size AWG | 16AWG |
| Stud Size | M5 |
| Contact Material | Copper |
| Contact Plating | Nickel |
| Overall Length | 16.15mm |
