Eccel Technology Ltd Chilli-USB-B1 (000373) RFID Reader 13.56MHz, 4.5 → 5.5V

View all RF Modules
Bulk discount available

Subtotal (1 unit)*

MYR302.98

Add to Basket
Select or type quantity
In Stock
  • 28 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 - 4MYR302.98
5 +MYR272.69

*price indicative

RS Stock No.:
162-4453
Mfr. Part No.:
Chilli-USB-B1 (000373)
Manufacturer:
Eccel Technology Ltd
Find similar products by selecting one or more attributes.
Select all

Brand

Eccel Technology Ltd

Component Type

Reader

Supported Frequency Bands

13.56MHz

Supported Bus Interfaces

AES-128, UART, USB

Supply Voltage

4.5 → 5.5V

Length

75mm

Maximum Operating Temperature

+85 °C

Minimum Operating Temperature

-25 °C

Width

50mm

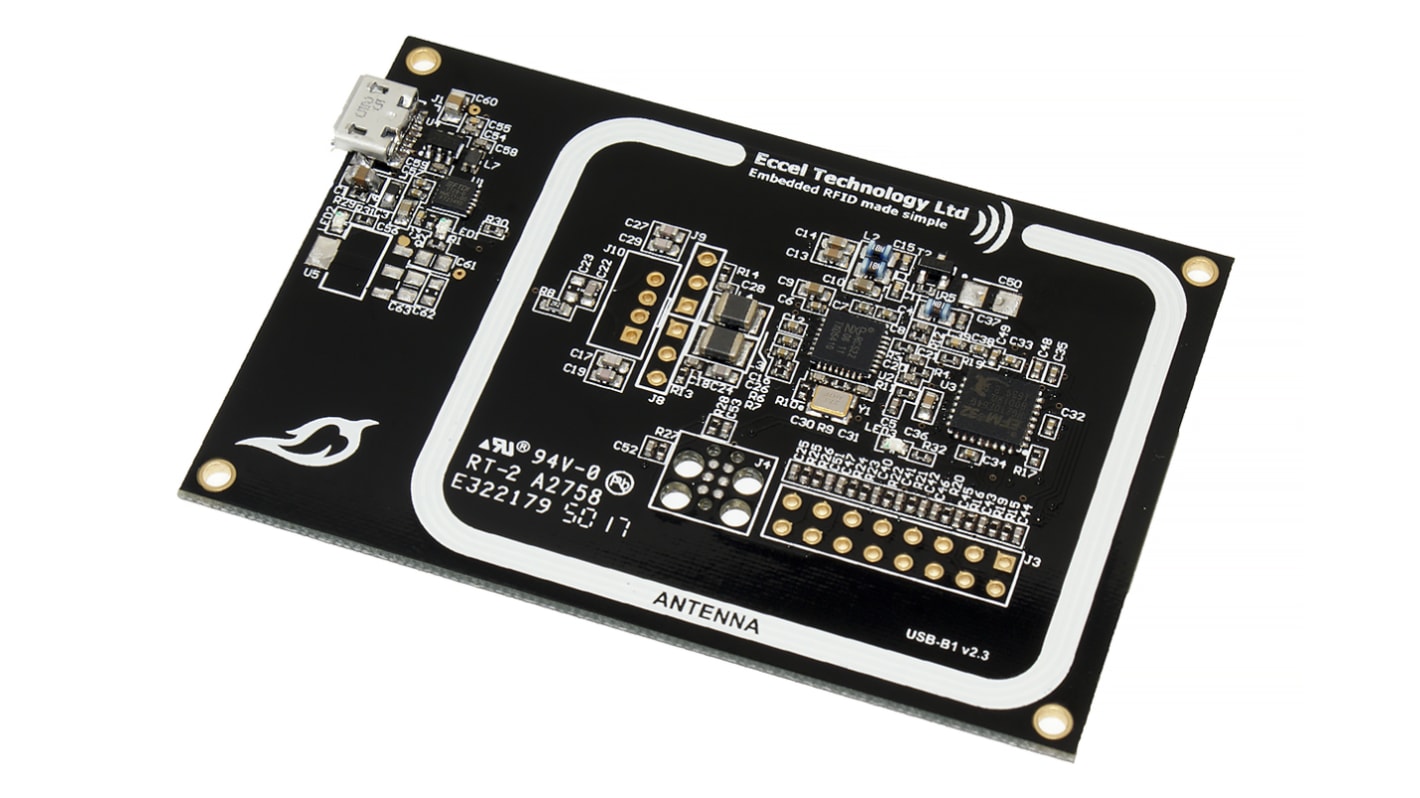

The USB-B1 v2 is a low cost full RFID/NFC read/write device with USB interface that can operate in "host" connected mode or "stand alone" mode. Supports Mifare Classic 1k & 4k, NTAG2xx and Ultralight. Additionally, you can read serial numbers from Mifare Plus and Mifare DESfire. The USB-B1 is based on our RFID-B1 module but is equipped with an additional integral antenna, an LED for tag in the field indication/ interrupt, mounting holes and flexible plated connection holes. The USB-B1 is an ideal choice if the user wishes to add RFID capability to their design quickly and easily.
