Radiall R411820124 RF AttenuatorStraight 20 dBMaleFemale
- RS Stock No.:
- 285-9567
- Mfr. Part No.:
- R411820124
- Manufacturer:
- Radiall

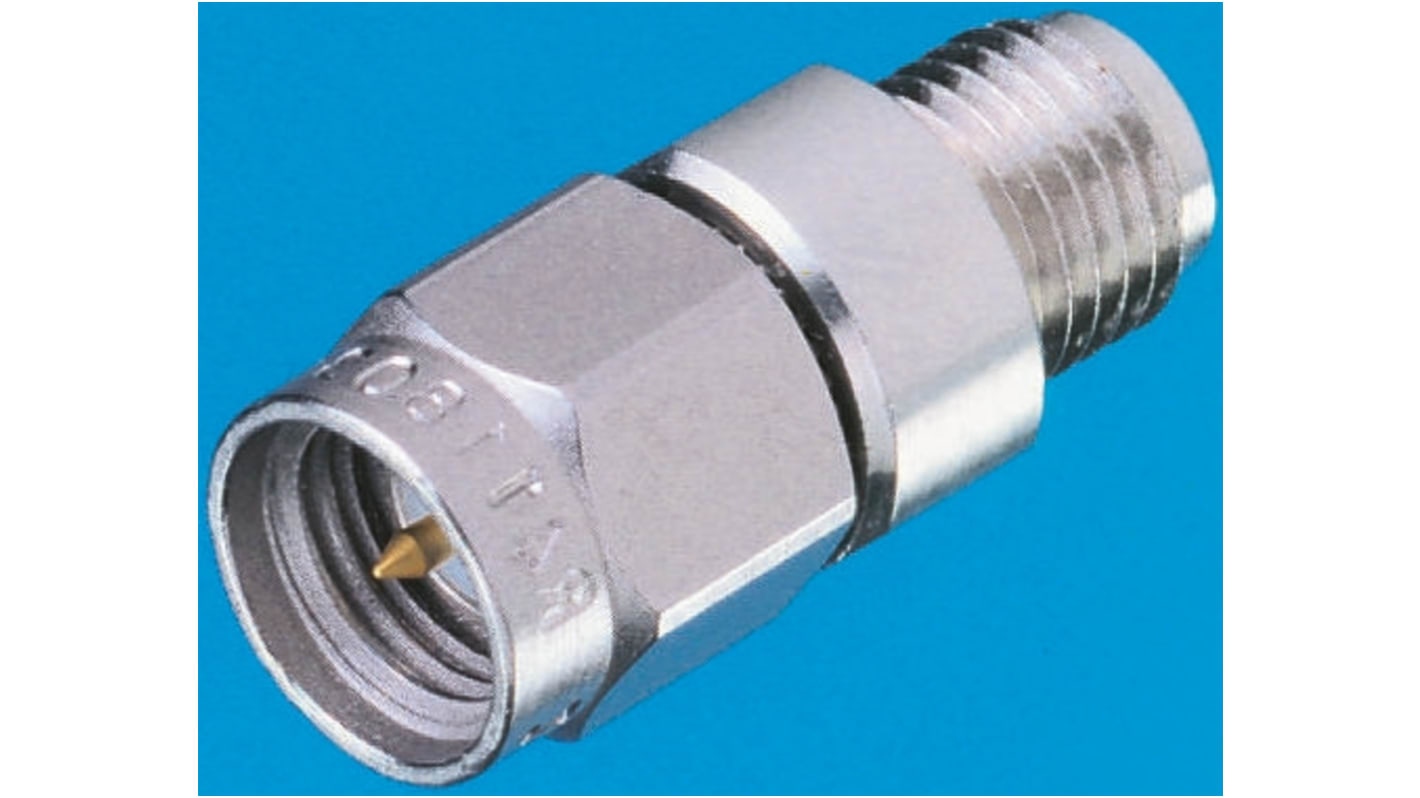

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
MYR374.91
FREE delivery for orders over RM 500.00
In Stock
- 81 unit(s) ready to ship from another location
- Plus 455 unit(s) shipping from 27 March 2026
- Plus 200 unit(s) shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | MYR374.91 |
| 10 - 24 | MYR367.04 |
| 25 - 49 | MYR355.75 |
| 50 - 99 | MYR347.16 |
| 100 + | MYR339.65 |
*price indicative
- RS Stock No.:
- 285-9567
- Mfr. Part No.:
- R411820124
- Manufacturer:
- Radiall
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Radiall | |
| Interface Type | SMA Plug to Socket | |
| Product Type | RF Attenuator | |
| Impedance | 50Ω | |
| Maximum Frequency | 6GHz | |
| Body Plating | Nickel | |
| Contact Plating | Nickel | |
| Contact Material | Brass | |
| Low Power | No | |
| Connector Type | SMA | |
| Orientation | Straight | |
| Minimum Frequency | 2GHz | |
| Maximum Attenuation | 20dB | |
| Minimum Operating Temperature | -40°C | |
| Connector Gender A | Male | |
| Maximum Operating Temperature | 85°C | |
| Series | ATTENUATOR | |
| Connector Gender B | Female | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Radiall | ||
Interface Type SMA Plug to Socket | ||
Product Type RF Attenuator | ||
Impedance 50Ω | ||
Maximum Frequency 6GHz | ||
Body Plating Nickel | ||
Contact Plating Nickel | ||
Contact Material Brass | ||
Low Power No | ||
Connector Type SMA | ||
Orientation Straight | ||
Minimum Frequency 2GHz | ||
Maximum Attenuation 20dB | ||
Minimum Operating Temperature -40°C | ||
Connector Gender A Male | ||
Maximum Operating Temperature 85°C | ||
Series ATTENUATOR | ||
Connector Gender B Female | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- FR
Attenuators (dc to 3GHz)
Radiall 50 Ohm SMA RF Coaxial Attenuators
50 ohm SMA plug to socket RF coaxial attenuators with a PTFE dielectric and gold plated centre contact.
50 ohm SMA attenuators with part number R4118xx124 have a DC 3 GHz operating frequency range, 1 W average power @ 25°C and a nickel plated brass body.
50 ohm SMA attenuators with part number R4118xx121 have an DC 18 GHz operating frequency range, 2 W average power @ 25°C and a passivated stainless steel body.
50 ohm SMA attenuators with part number R4118xx122 have a DC 26.5 GHz operating frequency range, 2 W average power @ 25°C and a passivated stainless steel body.
Radiall SMA Commercial
SMA crimp termination types for use with a variety of flexible and semi-rigid cables
Cable plugs in captive contact form for mechanical reliability in adverse conditions, or non-captive form for optimum electrical performance
Bulkhead and panel types have captive contacts
Centre contacts require soldering unless otherwise stated
Connectors are available in gold plated and white bronze plated brass
End terminations and attenuators are in nickel plated brass
Approvals
-
