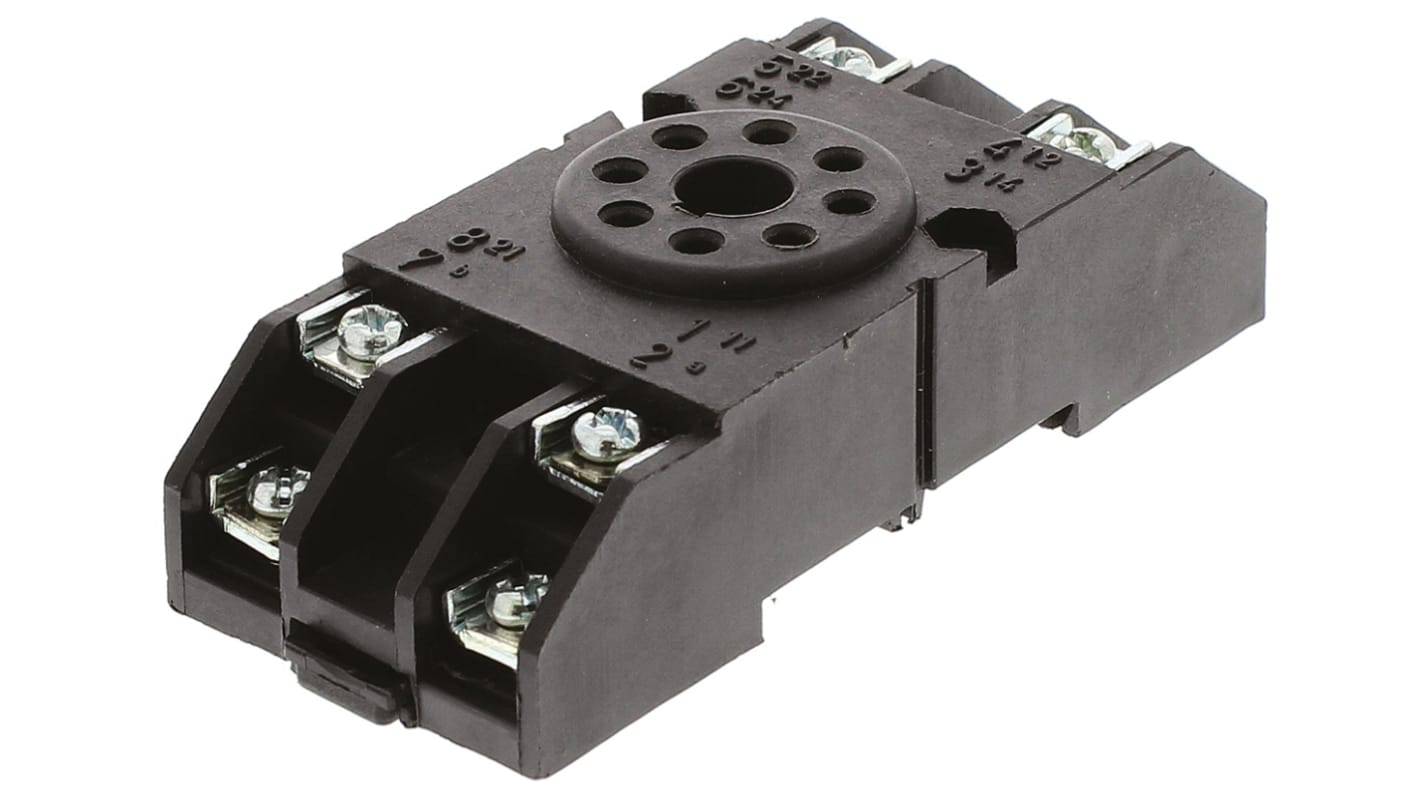

Tempatron S8P 8 Way 250 V ac DIN Rail Relay Socket, for use with Octal Relay
- RS Stock No.:
- 402-147
- Mfr. Part No.:
- S8P
- Manufacturer:
- Tempatron
Bulk discount available
Subtotal (1 unit)*
MYR35.30
FREE delivery for orders over RM 500.00
Temporarily out of stock
- 218 unit(s) shipping from 12 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 24 | MYR35.30 |
| 25 - 99 | MYR34.09 |
| 100 + | MYR33.59 |
*price indicative
- RS Stock No.:
- 402-147
- Mfr. Part No.:
- S8P
- Manufacturer:
- Tempatron
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Tempatron | |
| Voltage | 250 V ac | |
| Product Type | Relay Socket | |
| For Use With | Octal Relay | |
| Current | 10A | |
| Series | S8P | |
| Terminal Type | Screw | |
| Standards/Approvals | RoHS | |
| Number of Contacts | 8 | |
| Mount Type | DIN Rail | |
| Select all | ||
|---|---|---|
Brand Tempatron | ||
Voltage 250 V ac | ||
Product Type Relay Socket | ||
For Use With Octal Relay | ||
Current 10A | ||
Series S8P | ||
Terminal Type Screw | ||
Standards/Approvals RoHS | ||
Number of Contacts 8 | ||
Mount Type DIN Rail | ||
- COO (Country of Origin):
- IN
10A Industrial Relay
Protected by a clear polycarbonate cover
DIN Rail or Surface Mounting
Contact Material: Ag + Au Flashed
Contact Rating is 10A
Maximum switching voltage 250 Vac, 30 Vdc
Mechanical Life of 107 Operations (min)
Electrical Life of 105 Operations (min)
Maximum temperature at rated coil voltage 65°C
Dimensions: H 53mm, W 36mm, D 36mm
Approvals
UL recognised component CSA approval
