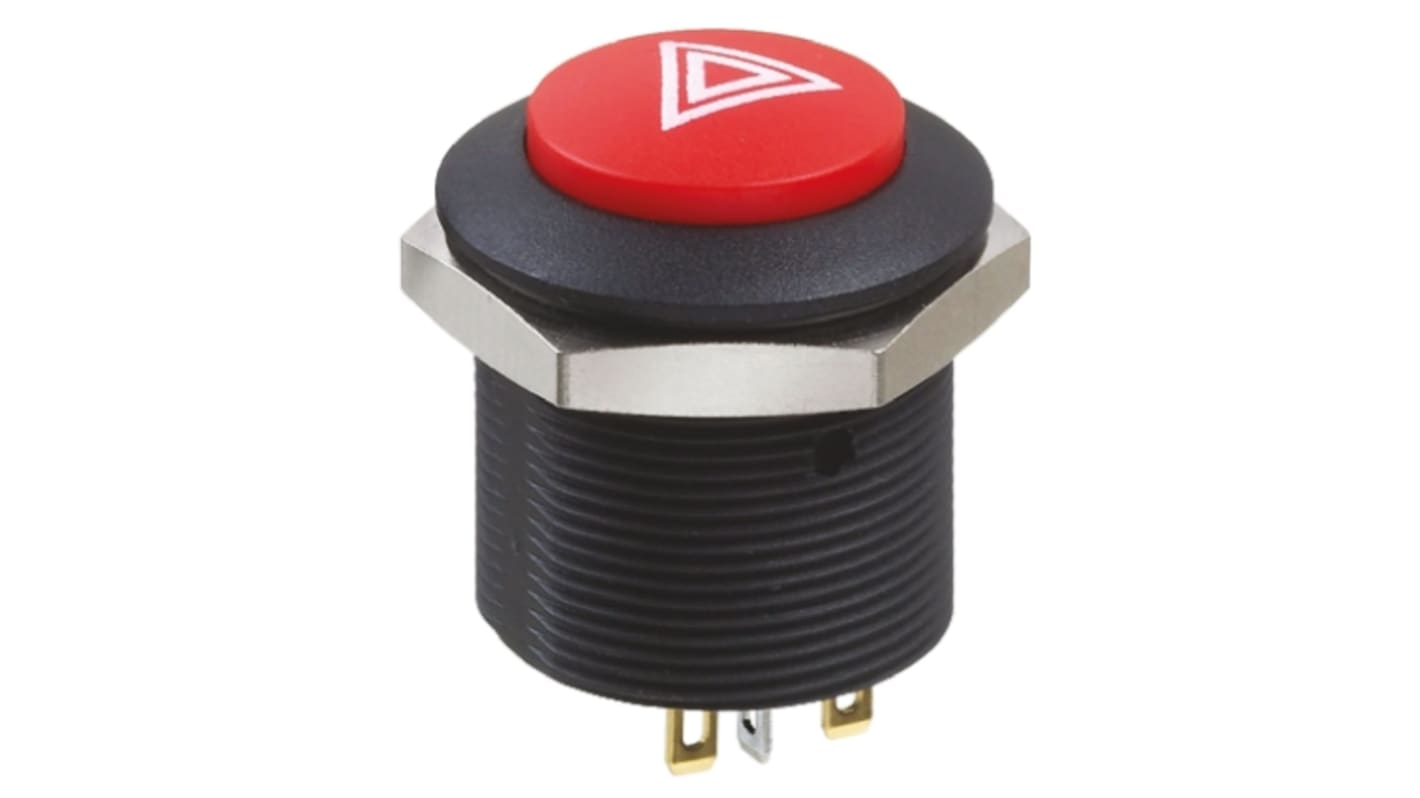

APEM FP Series Illuminated Push Button Switch, Latching, Panel, 24 mm Cutout, DPDT, Red LED, 12 V dc
- RS Stock No.:
- 765-1302
- Mfr. Part No.:
- FPAR1D1462C1113
- Manufacturer:
- APEM
Subtotal (1 unit)*
MYR208.49
FREE delivery for orders over RM 500.00
In Stock
- 7 unit(s) ready to ship from another location
- Plus 11 unit(s) shipping from 28 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR208.49 |
*price indicative
- RS Stock No.:
- 765-1302
- Mfr. Part No.:
- FPAR1D1462C1113
- Manufacturer:
- APEM
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | APEM | |
| Actuator Colour | Red | |
| Switch Operation | Latching | |
| Product Type | Push Button Switch | |
| Illuminated | Yes | |
| Panel Cutout Size | 24 mm | |
| Series | FP | |
| Mount Type | Panel | |
| Contact Configuration | DPDT | |
| LED Colour | Red | |
| Terminal Type | Solder | |
| Actuator Style | Button | |
| Contact DC Voltage | 12V dc | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 75°C | |
| Switch Configuration | NO, Off-On | |
| Switch Contact Current | 200mA | |
| Standards/Approvals | RoHS | |
| Length | 300mm | |
| Legend | Hazard (symbol) | |
| Select all | ||
|---|---|---|
Brand APEM | ||
Actuator Colour Red | ||
Switch Operation Latching | ||
Product Type Push Button Switch | ||
Illuminated Yes | ||
Panel Cutout Size 24 mm | ||
Series FP | ||
Mount Type Panel | ||
Contact Configuration DPDT | ||
LED Colour Red | ||
Terminal Type Solder | ||
Actuator Style Button | ||
Contact DC Voltage 12V dc | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 75°C | ||
Switch Configuration NO, Off-On | ||
Switch Contact Current 200mA | ||
Standards/Approvals RoHS | ||
Length 300mm | ||
Legend Hazard (symbol) | ||
Apem Illuminated Pushbutton Switches – FP Series
Apem FP series illuminated pushbutton switches are a highly visible solution for use within applications such as tractors, buses, trucks, cranes and general automotive. The FP pushbutton switch series is large but lightweight, easy to locate in poorly lit or dark environments and at the same time saves space due to the removal of need for a separate indicator light.
Suited for integrated designs
Large but lightweight
Momentary or latching
