Bulgin MPI001 Series Illuminated Push Button Switch, Momentary, Panel, 22 mm Cutout, SPST, Blue LED, IP66, 24 V
- RS Stock No.:
- 278-4470
- Mfr. Part No.:
- MPI001/TERM/BL
- Manufacturer:
- Bulgin

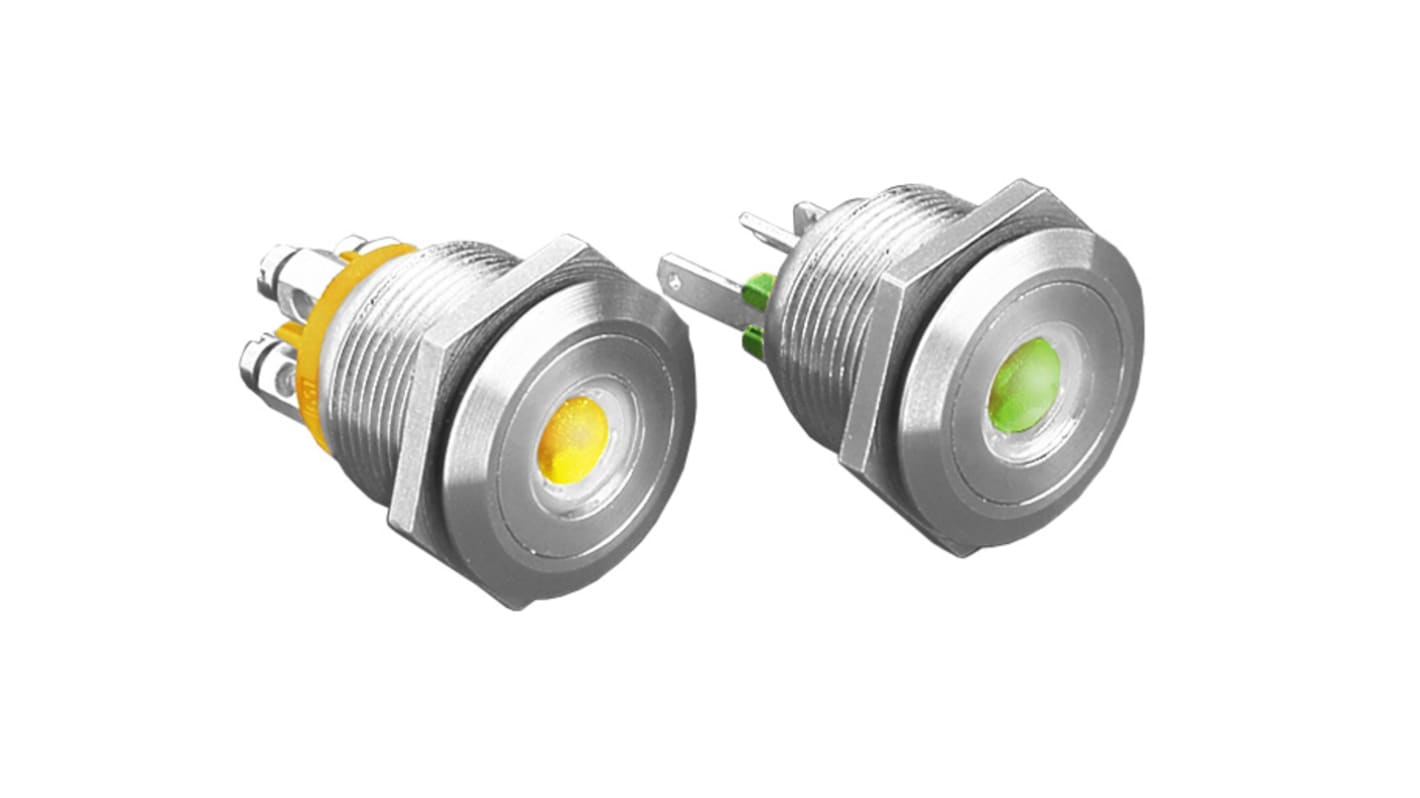

This image is representative of the product range
Bulk discount available
Subtotal (1 box of 50 units)*
MYR8,220.45
FREE delivery for orders over RM 500.00
Temporarily out of stock
- Shipping from 10 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Box* |
|---|---|---|
| 50 - 50 | MYR164.409 | MYR8,220.45 |
| 100 - 100 | MYR157.832 | MYR7,891.60 |
| 150 - 150 | MYR151.762 | MYR7,588.10 |
| 200 - 200 | MYR146.141 | MYR7,307.05 |
| 250 + | MYR140.922 | MYR7,046.10 |
*price indicative
- RS Stock No.:
- 278-4470
- Mfr. Part No.:
- MPI001/TERM/BL
- Manufacturer:
- Bulgin
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bulgin | |
| Product Type | Push Button Switch | |
| Switch Operation | Momentary | |
| Actuator Colour | Blue | |
| Illuminated | Yes | |
| Panel Cutout Size | 22 mm | |
| Series | MPI001 | |
| Mount Type | Panel | |
| Contact Configuration | SPST | |
| Terminal Type | Screw | |
| LED Colour | Blue | |
| IP Rating | IP66 | |
| Actuator Style | Button | |
| Contact DC Voltage | 24V | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 85°C | |
| Switch Contact Current | 0.05 A | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Bulgin | ||
Product Type Push Button Switch | ||
Switch Operation Momentary | ||
Actuator Colour Blue | ||
Illuminated Yes | ||
Panel Cutout Size 22 mm | ||
Series MPI001 | ||
Mount Type Panel | ||
Contact Configuration SPST | ||
Terminal Type Screw | ||
LED Colour Blue | ||
IP Rating IP66 | ||
Actuator Style Button | ||
Contact DC Voltage 24V | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 85°C | ||
Switch Contact Current 0.05 A | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- TN
The Bulgin Push Button is a stainless steel Illuminated Vandal Resistant push button. This push button is designed with a high resistance to wear and tear, corrosion and harsh use in potentially hostile environments such as access control applications.
TVS protection
RoHS compliant
Dot illumination
Bright daylight LEDs
Integral supply resistors
Independent LED terminals
