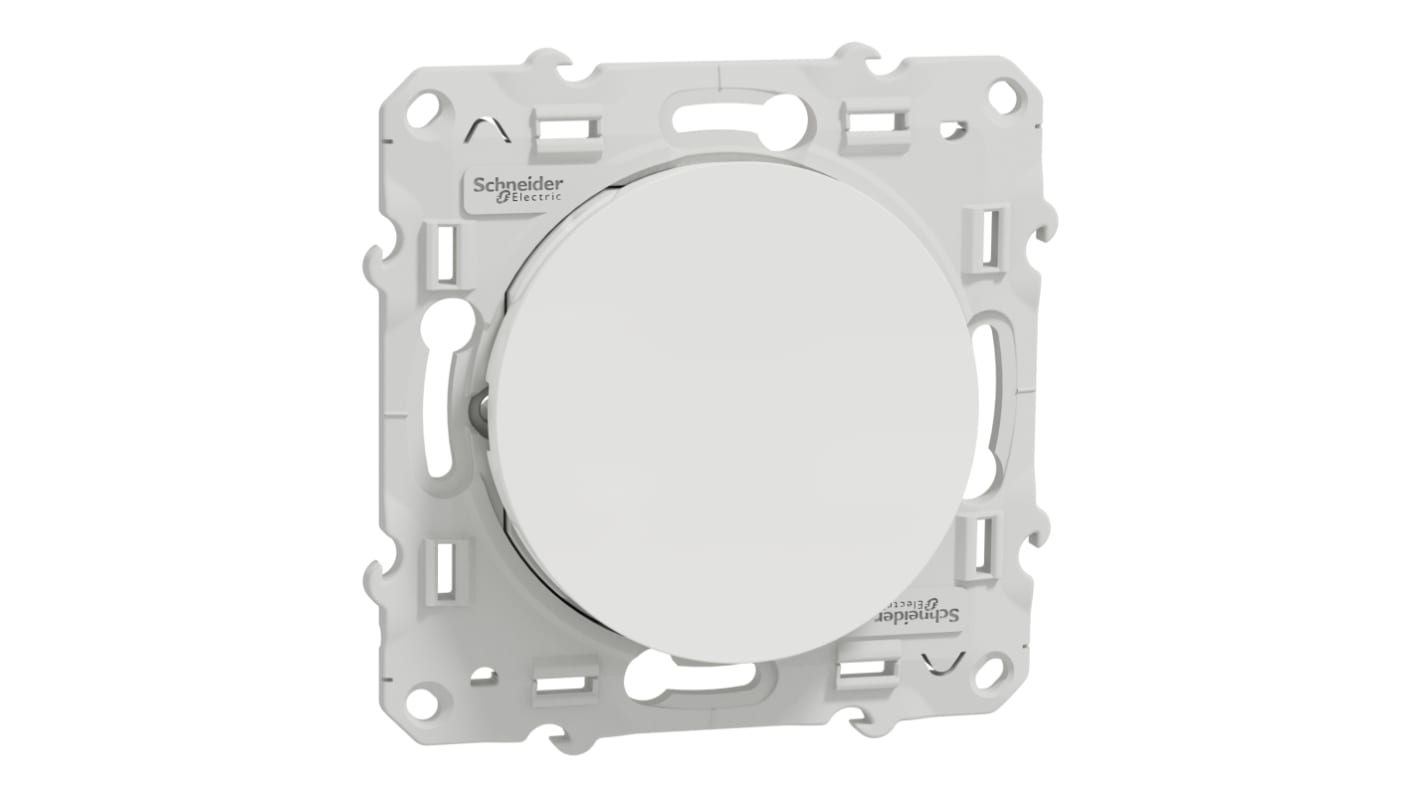

Schneider Electric Odace Series Push Button Switch, Push-Push, Panel, 22 mm Cutout, White LED, IP21D 250 V

RS Stock No.:: 276-8998
Mfr. Part No.:: S520206
Manufacturer:: Schneider Electric

Schneider Electric Odace Series Push Button Switch, Push-Push, Panel, 22 mm Cutout, White LED, IP21D 250 V

Subtotal (1 unit)*

MYR70.30

FREE delivery for orders over RM 500.00

In Stock

Plus 96 unit(s) shipping from 26 January 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR70.30

*price indicative

RS Stock No.:: 276-8998
Mfr. Part No.:: S520206
Manufacturer:: Schneider Electric

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Product Type	Push Button Switch
	Actuator Colour	White
	Switch Operation	Push-Push
	Illuminated	No
	Series	Odace
	Panel Cutout Size	22 mm
	Mount Type	Panel
	LED Colour	White
	Terminal Type	Screwless
	IP Rating	IP21D
	Contact AC Voltage	250V
	Minimum Operating Temperature	-5°C
	Actuator Style	Button
	Maximum Operating Temperature	50°C
	Standards/Approvals	EN 60669-1 2006/95/EWG
	Width	71 mm
	Switch Contact Current	10 A
	Height	71mm
	Length	33.6mm

	Select all
	Brand Schneider Electric
	Product Type Push Button Switch
	Actuator Colour White
	Switch Operation Push-Push
	Illuminated No
	Series Odace
	Panel Cutout Size 22 mm
	Mount Type Panel
	LED Colour White
	Terminal Type Screwless
	IP Rating IP21D
	Contact AC Voltage 250V
	Minimum Operating Temperature -5°C
	Actuator Style Button
	Maximum Operating Temperature 50°C
	Standards/Approvals EN 60669-1 2006/95/EWG
	Width 71 mm
	Switch Contact Current 10 A
	Height 71mm
	Length 33.6mm

Datasheet - S520206

RoHS Status: Exempt

COO (Country of Origin):: ES

Schneider Electric Push Button, PBT Push Button, 10A Contact Current Rating - S520206

This push button is designed for efficient light control and is suitable for panel mounting applications. Its round profile and white colour allow it to blend seamlessly into various environments. With a voltage rating of 250V and a screwless terminal design, installation is straightforward and enhances safety.

Features & Benefits

• Push-push mechanism ensures consistent operation

• High current rating of 10A for diverse applications

• IP21D rating provides protection against solid items

• Durable PBT material enhances longevity and resistance

• Glossy white finish suits modern aesthetics

• Easy installation with screwless terminals

Applications

• Controls lighting circuits in residential settings

• Ideal for automation systems in industrial environments

• Utilised in commercial buildings for convenient access

• Suitable for control panels that require dependable switches

Can it operate at temperatures below -5°C?

No, the minimum operating temperature is -5°C.

Will it work with flexible cables?

Yes, it is compatible with flexible cable connections.

Is it suitable for use in damp locations?

No, it has an IP21D rating for limited protection.

Can the switch be mounted on surfaces other than panels?

It is specifically designed for panel mounting applications.

Is it available in colours other than white?

The product comes only in a glossy white finish.
