Eaton Blue Momentary Spring Return Push Button Actuator, 22.5 mm Cutout, IP69K, IP67, IP66
- RS Stock No.:
- 276-6583
- Mfr. Part No.:
- 216932 M22S-DL-B
- Manufacturer:
- Eaton

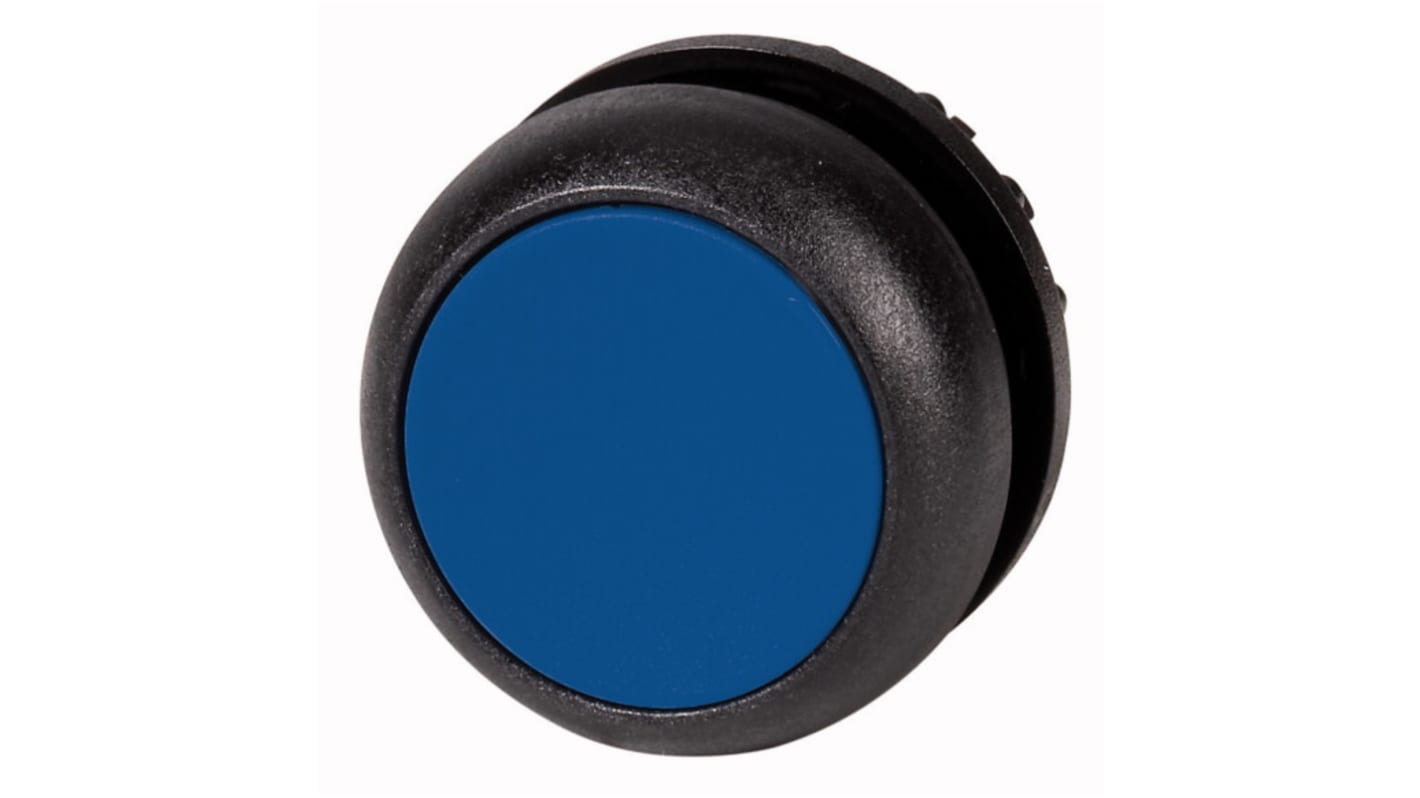

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
MYR79.07
FREE delivery for orders over RM 150.00
In Stock
- 1 unit(s) ready to ship from another location
- Plus 10 unit(s) shipping from 22 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | MYR79.07 |
| 5 - 9 | MYR76.70 |
| 10 + | MYR69.03 |
*price indicative
- RS Stock No.:
- 276-6583
- Mfr. Part No.:
- 216932 M22S-DL-B
- Manufacturer:
- Eaton
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Push Button Actuator | |
| Series | Eaton Moeller | |
| Cutout Diameter | 22.5mm | |
| Push Button Colour | Blue | |
| Push Button Shape | Round | |
| Push Button Actuation | Momentary Spring Return | |
| Push Button Style | Flat | |
| Push Button Material | Plastic | |
| IP Rating | IP69K, IP67, IP66 | |
| Push Button Marking | Blank | |
| Push Button Diameter | 29.7mm | |
| Standards/Approvals | DNV, CSA-C22.2 No. 14-05, CSA, LR, RoHS, IEC/EN 60947, CE, IEC/EN 60947-5, VDE 0660, UL File No.:E29184, UL Category Control No.:NKCR, UL 508, UL, CSA Class No.:3211-03, CSA File No.:012528, CSA-C22.2 No. 94-91, GL | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Push Button Actuator | ||
Series Eaton Moeller | ||
Cutout Diameter 22.5mm | ||
Push Button Colour Blue | ||
Push Button Shape Round | ||
Push Button Actuation Momentary Spring Return | ||
Push Button Style Flat | ||
Push Button Material Plastic | ||
IP Rating IP69K, IP67, IP66 | ||
Push Button Marking Blank | ||
Push Button Diameter 29.7mm | ||
Standards/Approvals DNV, CSA-C22.2 No. 14-05, CSA, LR, RoHS, IEC/EN 60947, CE, IEC/EN 60947-5, VDE 0660, UL File No.:E29184, UL Category Control No.:NKCR, UL 508, UL, CSA Class No.:3211-03, CSA File No.:012528, CSA-C22.2 No. 94-91, GL | ||
Hazardous Area Certification No | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
Eaton Push Button Actuator, 29.7mm Diameter, Blue - 216932 M22S-DL-B
This push button actuator provides an illuminated, momentary control input for industrial switchgear and control panels, designed for flush mounting and frequent operation in harsh environments. It delivers tactile actuation with spring-return action and is compatible with smartwire-dt connections, making it suitable for machine interfaces and system command panels where clear signalling and robust ingress protection are required.
Features and Benefits:
• IP69K IP67 IP66 protection for washdown and harsh environments
• 3600 operations/h rating for frequent switching cycles
• 5N actuating force for consistent tactile feedback
• Mechanical life span 5,000,000 operations for long service life
• Ambient range -25°C to 70°C for wide temperature use
• Front bezel plastic with black finish for panel integration
• 3600 operations/h rating for frequent switching cycles
• 5N actuating force for consistent tactile feedback
• Mechanical life span 5,000,000 operations for long service life
• Ambient range -25°C to 70°C for wide temperature use
• Front bezel plastic with black finish for panel integration
Applications
• Suitable for control panels requiring waterproof pushbuttons
• Used for machine operator stations with illuminated controls
• Ideal for marine and offshore control enclosures requiring approvals
• Can be used with smartwire-dt networks for simplified wiring
• Used for industrial equipment needing high cycle durability
• Used for machine operator stations with illuminated controls
• Ideal for marine and offshore control enclosures requiring approvals
• Can be used with smartwire-dt networks for simplified wiring
• Used for industrial equipment needing high cycle durability
What cut-out size is needed for panel installation?
A 22.5 mm opening is required for correct mounting.
Which approvals cover electrical and marine suitability?
Approvals include IEC/EN 60947 series, UL 508 with File E29184, DNV, LR and GL.
How is illumination support provided for signalling?
The front element is designed for illumination and is compatible with illumination modules.
What sealing applies to the front of the control panel?
The front face meets IP67 and IP69K ratings for front-side protection.
What mechanical shock resistance does it offer?
It withstands sinusoidal shock testing to IEC/EN 60068-2-27 at 30g and 11 ms.
