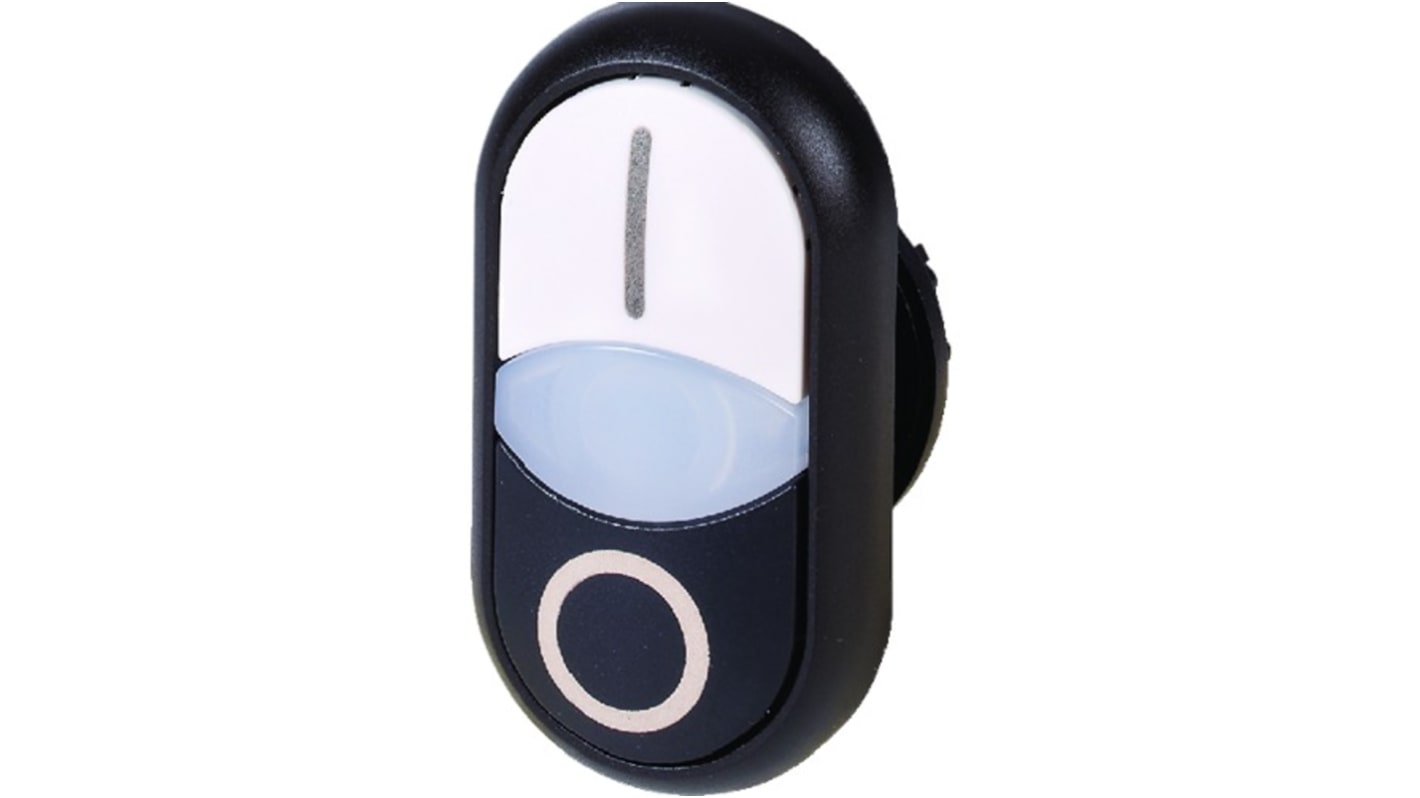

Eaton M22 Series White, Black Momentary Spring Return Push Button Switch, 22.5 mm Cutout, IP66, IEC, EN

RS Stock No.:: 272-2362
Mfr. Part No.:: 284816 M22-DDLF-WS-X1/X0
Manufacturer:: Eaton

Eaton M22 Series White, Black Momentary Spring Return Push Button Switch, 22.5 mm Cutout, IP66, IEC, EN

Currently unavailable

Sorry, we don't know when this will be back in stock.

RS Stock No.:: 272-2362
Mfr. Part No.:: 284816 M22-DDLF-WS-X1/X0
Manufacturer:: Eaton

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Product Type	Push Button Switch
	Series	M22
	Cutout Diameter	22.5mm
	Push Button Colour	White, Black
	Push Button Shape	Oval
	Push Button Actuation	Momentary Spring Return
	Push Button Style	Flat
	Push Button Material	Plastic
	IP Rating	IP66
	Push Button Marking	Inscribed
	Push Button Diameter	22.5mm
	Standards/Approvals	VDE 0660, UL 508, LR DNV GL, IEC/EN 60947-5, IEC/EN 60947, CSA-C22.2 No. 94-91, CSA-C22.2 No. 14-05, CE
	Hazardous Area Certification	IEC, EN

	Select all
	Brand Eaton
	Product Type Push Button Switch
	Series M22
	Cutout Diameter 22.5mm
	Push Button Colour White, Black
	Push Button Shape Oval
	Push Button Actuation Momentary Spring Return
	Push Button Style Flat
	Push Button Material Plastic
	IP Rating IP66
	Push Button Marking Inscribed
	Push Button Diameter 22.5mm
	Standards/Approvals VDE 0660, UL 508, LR DNV GL, IEC/EN 60947-5, IEC/EN 60947, CSA-C22.2 No. 94-91, CSA-C22.2 No. 14-05, CE
	Hazardous Area Certification IEC, EN

RoHS Status: Exempt

COO (Country of Origin):: DE

Eaton Push Button Switch, 22.5mm Cutout Diameter, IP66 - 284816 M22-DDLF-WS-X1/X0

This push button switch is a double-actuator control device designed for panel-mounted industrial interfaces, providing momentary spring-return actuation for operator input in demanding environments. It is intended for use where an oval, flat-front actuator and a labelled front element are required, and it is compatible with illumination options and smartwire connections for system integration.

Features and Benefits:

• IP66-rated front side provides protection in wet environments
• Momentary spring-return action enables quick tactile reset
• 3600 operations/h supports frequent actuation cycles
• Mechanical lifespan 200,000 operations for long service periods
• Actuating force 5N offers consistent operator feedback
• Ambient operating range −25°C to 70°C for varied climates

Applications

• Suitable for control panels in corrosive atmospheres requiring labels
• Ideal for machinery interfaces needing frequent operator input
• Can be used in outdoor enclosures requiring IP66 protection
• Suitable for illuminated signalling in process control systems

What cut-out size is required for panel installation?

The device requires a 22.5mm opening to mount the front element.

Which front colours are available for operator distinction?

The actuators are supplied in white and black to aid Visual coding.

What materials are used for the bezel and lens?

The bezel is plastic with a titanium-colour finish and the lens is white plastic.

How does the product cope with thermal and UV stresses?

It meets thermal stability and insulating material resistance requirements, UV resistance should be confirmed on enquiry.

Which approvals cover its use in regulated installations?

It holds IEC and EN hazardous area certification and approvals including VDE, UL, CSA, CE, LR, DNV GL.
