Eaton M30 Series White Momentary Spring Return Push Button Actuator, 30.5 mm Cutout, IP66, IP67, IP69

RS Stock No.:: 272-1361
Mfr. Part No.:: 188034 M30I-FDL-W-X0
Manufacturer:: Eaton

Eaton M30 Series White Momentary Spring Return Push Button Actuator, 30.5 mm Cutout, IP66, IP67, IP69

Subtotal (1 unit)*

MYR164.52

FREE delivery for orders over RM 150.00

In Stock

Plus 4 unit(s) shipping from 28 September 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR164.52

*price indicative

RS Stock No.:: 272-1361
Mfr. Part No.:: 188034 M30I-FDL-W-X0
Manufacturer:: Eaton

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Product Type	Push Button Actuator
	Series	M30
	Cutout Diameter	30.5mm
	Push Button Colour	White
	Push Button Shape	Flat
	Push Button Actuation	Momentary Spring Return
	Push Button Style	Flat
	Push Button Material	Metal
	IP Rating	IP66, IP67, IP69
	Push Button Marking	Inscribed
	Push Button Diameter	36mm
	Standards/Approvals	CE, CSA, CSA 012528, CSA-C22.2 No. 14-05 and 94-M91, CSA Class No.:3211-03, DNV, GL IEC/EN 60947-5, IEC/EN 60947, UL, UL 508, UL E29184, UL NKCR, VDE 0660
	Hazardous Area Certification	No

	Select all
	Brand Eaton
	Product Type Push Button Actuator
	Series M30
	Cutout Diameter 30.5mm
	Push Button Colour White
	Push Button Shape Flat
	Push Button Actuation Momentary Spring Return
	Push Button Style Flat
	Push Button Material Metal
	IP Rating IP66, IP67, IP69
	Push Button Marking Inscribed
	Push Button Diameter 36mm
	Standards/Approvals CE, CSA, CSA 012528, CSA-C22.2 No. 14-05 and 94-M91, CSA Class No.:3211-03, DNV, GL IEC/EN 60947-5, IEC/EN 60947, UL, UL 508, UL E29184, UL NKCR, VDE 0660
	Hazardous Area Certification No

COO (Country of Origin):: DE

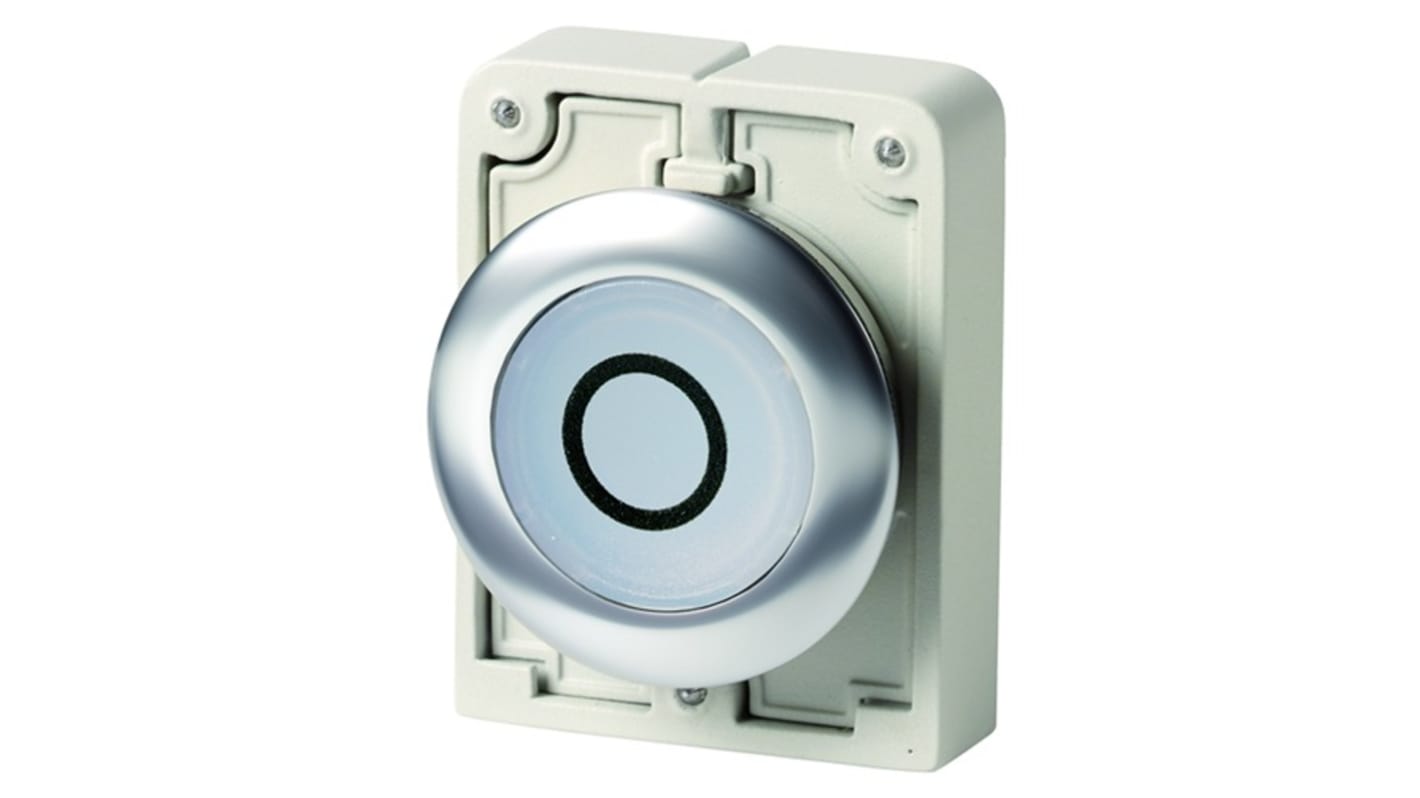

Eaton Push Button Actuator, 36mm Diameter, White - 188034 M30I-FDL-W-X0

This push-button actuator is an illuminated, flat-front control intended for panel mounting in industrial environments where momentary operator input is required. It provides a spring-return actuation in a Compact M30 format and is designed for use with illuminated control assemblies, offering robust environmental protection suitable for demanding on-site conditions.

Features and Benefits:

• IP66/IP67/IP69 rating protects against dust and high-pressure washdown
• Metal flat push-button gives Durable tactile surface
• 3600 operations/h supports frequent actuation cycles
• 5N actuating force enables consistent operator response
• Mechanical lifespan of 5,000,000 operations reduces replacements

Applications

• Used with control panels requiring hygienic washdown resistance
• Suitable for food processing plant operator stations
• Ideal for machinery interfaces needing illuminated controls
• Can be used for outdoor cabinets exposed to harsh weather
• Used for panels requiring CE and UL compliance documentation

What cut-out is required for panel installation?

A 30.5 mm opening is required for correct mounting.

Which materials are present on the front to resist corrosion?

The front bezel is stainless steel and the button is metal.

What temperatures can the device operate within?

It functions between -25°C and 70°C ambient conditions.

How is the control marked for operator identification?

The button is inscribed with a clear legend for identification.

What shock performance does it support for industrial settings?

It withstands sinusoidal shocks to IEC/EN 60068-2-27 at 15 g.
