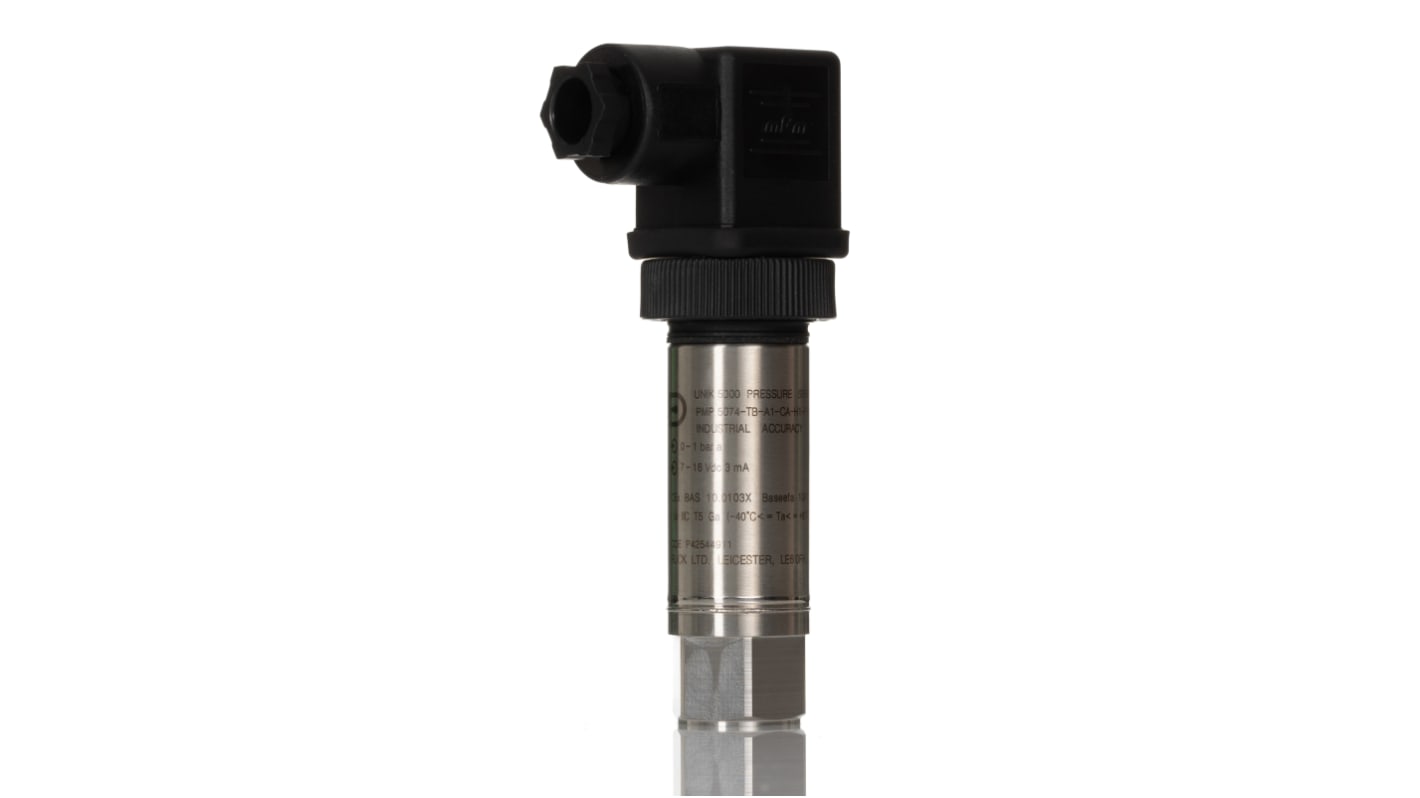

Druck unik 5000 Series Pressure Sensor 70 mbar 1 bar
- RS Stock No.:
- 746-3524
- Mfr. Part No.:
- A5074-TB-A1-CA-H1-PA 1 bar A
- Manufacturer:
- Druck
Subtotal (1 unit)*
MYR2,114.97
FREE delivery for orders over RM 150.00
In Stock
- 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR2,114.97 |
*price indicative
- RS Stock No.:
- 746-3524
- Mfr. Part No.:
- A5074-TB-A1-CA-H1-PA 1 bar A
- Manufacturer:
- Druck
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Druck | |
| Maximum Pressure Measurement | 1bar | |
| Product Type | Pressure Sensor | |
| Minimum Pressure Measurement | 70mbar | |
| Accuracy | ±0.2 % | |
| Analogue Output | 0 → 5 V | |
| Series | unik 5000 | |
| Maximum Supply Voltage | 16V | |
| Standards/Approvals | ATEX, BS EN 61000-6-1: 2007, BS EN 61000-6-2: 2005, BS EN 61000-6-3: 2007+A1:2011, BS EN 61000-6-4: 2007+A1:2011, BS EN 61326-1: 2013, BS EN 61326-2-3: 2013, EMC, RoHS | |
| Housing Material | Stainless Steel | |
| Media Measured | Fluid | |
| Mount Type | Female Thread | |
| Response Time | 10ms | |
| Output Type | Analogue | |
| IP Rating | IP65 | |
| Maximum Operating Temperature | 125°C | |
| Select all | ||
|---|---|---|
Brand Druck | ||
Maximum Pressure Measurement 1bar | ||
Product Type Pressure Sensor | ||
Minimum Pressure Measurement 70mbar | ||
Accuracy ±0.2 % | ||
Analogue Output 0 → 5 V | ||
Series unik 5000 | ||
Maximum Supply Voltage 16V | ||
Standards/Approvals ATEX, BS EN 61000-6-1: 2007, BS EN 61000-6-2: 2005, BS EN 61000-6-3: 2007+A1:2011, BS EN 61000-6-4: 2007+A1:2011, BS EN 61326-1: 2013, BS EN 61326-2-3: 2013, EMC, RoHS | ||
Housing Material Stainless Steel | ||
Media Measured Fluid | ||
Mount Type Female Thread | ||
Response Time 10ms | ||
Output Type Analogue | ||
IP Rating IP65 | ||
Maximum Operating Temperature 125°C | ||
Druck Unik 5000 Series Pressure Sensor, 1 bar Maximum Pressure, 0 to 5V Analogue Output - A5074-TB-A1-CA-H1-PA 1 bar A
This pressure sensor measures fluid pressure across a low-pressure range and provides an analogue voltage signal for process monitoring and control. Housed in stainless steel, it is designed for industrial environments requiring a robust enclosure and performance across elevated temperatures. The device is suitable for installations where a female-thread mounting and ingress protection are required.
Features and Benefits:
• 0 to 5 V analogue output for straightforward voltage-based interfacing
• ±0.2% accuracy pressure transmitter for precise measurement control
• 70 mbar to 1 bar measurement span enabling low-pressure monitoring
• IP65 rated enclosure protecting against dust and water jets
• 125 °C maximum operating temperature for high-temperature applications
• ±0.2% accuracy pressure transmitter for precise measurement control
• 70 mbar to 1 bar measurement span enabling low-pressure monitoring
• IP65 rated enclosure protecting against dust and water jets
• 125 °C maximum operating temperature for high-temperature applications
Applications
• Suitable for fluid pressure monitoring in process systems
• Ideal for control loops requiring voltage feedback
• Used with equipment needing female thread installation
• Can be used for low-pressure leak detection tasks
• Suitable for hazardous-area installations when required
• Ideal for control loops requiring voltage feedback
• Used with equipment needing female thread installation
• Can be used for low-pressure leak detection tasks
• Suitable for hazardous-area installations when required
What supply voltage is needed for operation?
It accepts up to 16 V maximum supply voltage and operates from voltages below this limit for normal output behaviour.
Which materials are used for the external enclosure?
The outer housing is stainless steel, offering mechanical durability and corrosion resistance.
What approvals ensure electromagnetic and hazardous-area compatibility?
It meets EMC standards and carries ATEX certification along with specified BS EN test standards.
What media can be measured with this device?
It is specified for use with fluids within its measurement range and environmental limits.
