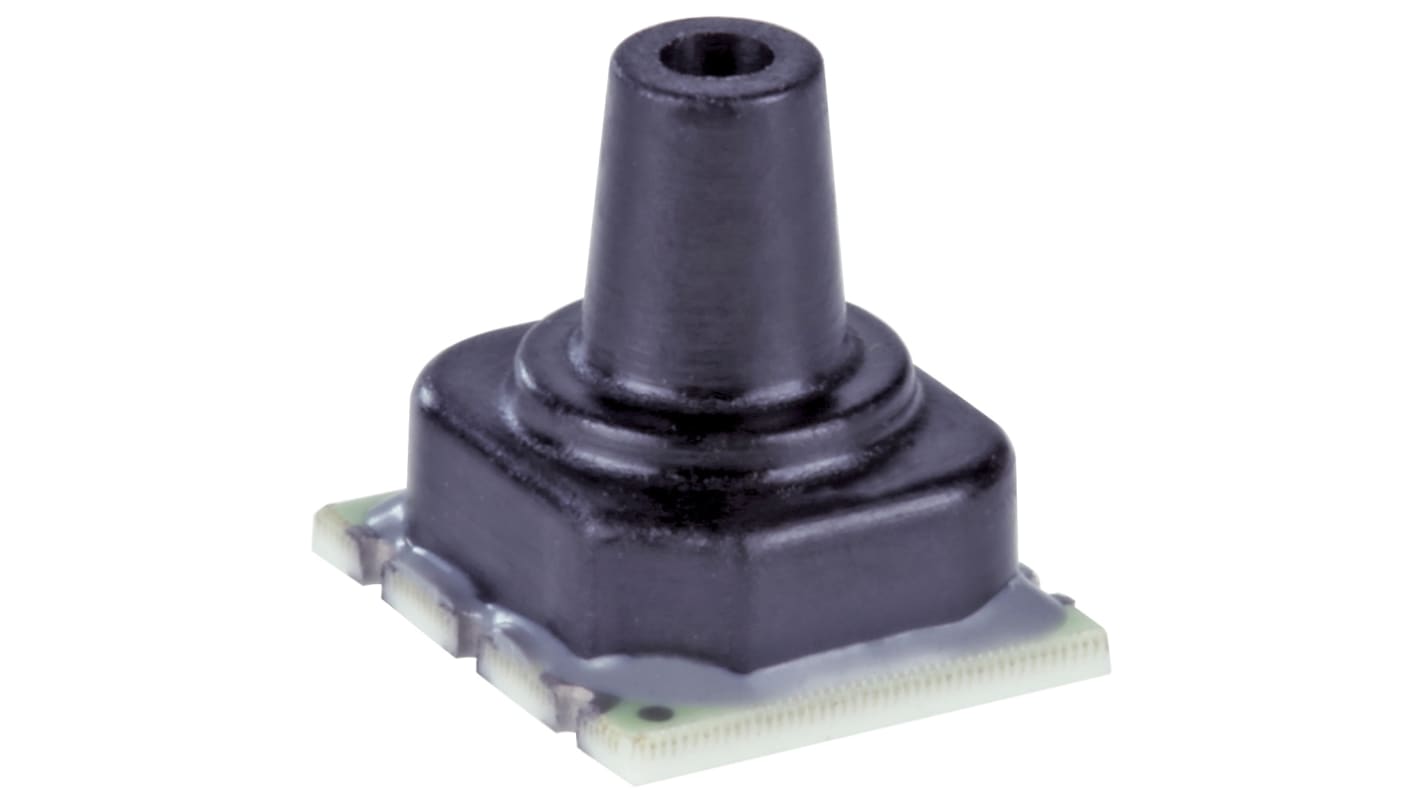

Honeywell ABPLLNT010BGAA5 Piezoresistive Pressure SensorSurface 6 LLSMT
- RS Stock No.:
- 922-0953
- Mfr. Part No.:
- ABPLLNT010BGAA5
- Manufacturer:
- Honeywell
Bulk discount available
Subtotal (1 unit)*
MYR122.18
FREE delivery for orders over RM 500.00
In Stock
- 150 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 24 | MYR122.18 |
| 25 - 49 | MYR119.60 |
| 50 - 99 | MYR116.01 |
| 100 + | MYR113.16 |
*price indicative
- RS Stock No.:
- 922-0953
- Mfr. Part No.:
- ABPLLNT010BGAA5
- Manufacturer:
- Honeywell
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Product Type | Piezoresistive Pressure Sensor | |
| Sensor Type | Differential Pressure Sensor | |
| Maximum Overload Pressure | 17bar | |
| Mount Type | Surface | |
| Package Type | LLSMT | |
| Pin Count | 6 | |
| Minimum Supply Voltage | -0.3V | |
| Maximum Operating Pressure | 10 bar | |
| Port Type | Single Axial Barbless | |
| Maximum Supply Voltage | 5.25V | |
| Accuracy | ±0.25 % | |
| Maximum Operating Temperature | 85°C | |
| Length | 7.3mm | |
| Standards/Approvals | No | |
| Height | 7.23mm | |
| Series | ABP | |
| Minimum Operating Pressure | 0bar | |
| Automotive Standard | No | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Honeywell | ||
Product Type Piezoresistive Pressure Sensor | ||
Sensor Type Differential Pressure Sensor | ||
Maximum Overload Pressure 17bar | ||
Mount Type Surface | ||
Package Type LLSMT | ||
Pin Count 6 | ||
Minimum Supply Voltage -0.3V | ||
Maximum Operating Pressure 10 bar | ||
Port Type Single Axial Barbless | ||
Maximum Supply Voltage 5.25V | ||
Accuracy ±0.25 % | ||
Maximum Operating Temperature 85°C | ||
Length 7.3mm | ||
Standards/Approvals No | ||
Height 7.23mm | ||
Series ABP | ||
Minimum Operating Pressure 0bar | ||
Automotive Standard No | ||
Minimum Operating Temperature -40°C | ||
ABP Series Piezoresistive Pressure Sensors, Honeywell
The range of ABP piezoresistive silicon pressure sensors from Honeywell, are available in several variations of digital/analogue, SMT/DIP/LLSMT packages and pressure measurement ranges. Specifically for the measurement of gauge and differential pressure, the ABP sensors are suitable for medical applications such as CPAP, blood pressure & patient monitoring and ventilators. You can also use the sensors within industrial applications such as air brakes, HVAC, pneumatic control & regulation and gas & valve monitoring.
Features & Benefits of the ABP Pressure Sensors
•Pressure unit measurements varying between 60 mbar and 10 bar, 6 kPa and 1 MPa and 1 psi and 150 psi
•3.3 V dc or 5 V dc single power supply
•±0.25%FSS stability
•±1.5%FSS Total Error Band (TEB)
•±FSS BFSL Accuracy
•Meets IPC/JEDEC J-STD-020.1 Moisture Sensitivity level 1 requirements
•Sleep, temperature output and liquid media mode
•REACH and RoHS compliant
