Honeywell Technologies HSCMRRV001PDAA5 Differential Pressure SensorSurface 6 SMT
- RS Stock No.:
- 203-6354
- Mfr. Part No.:
- HSCMRRV001PDAA5
- Manufacturer:
- Honeywell

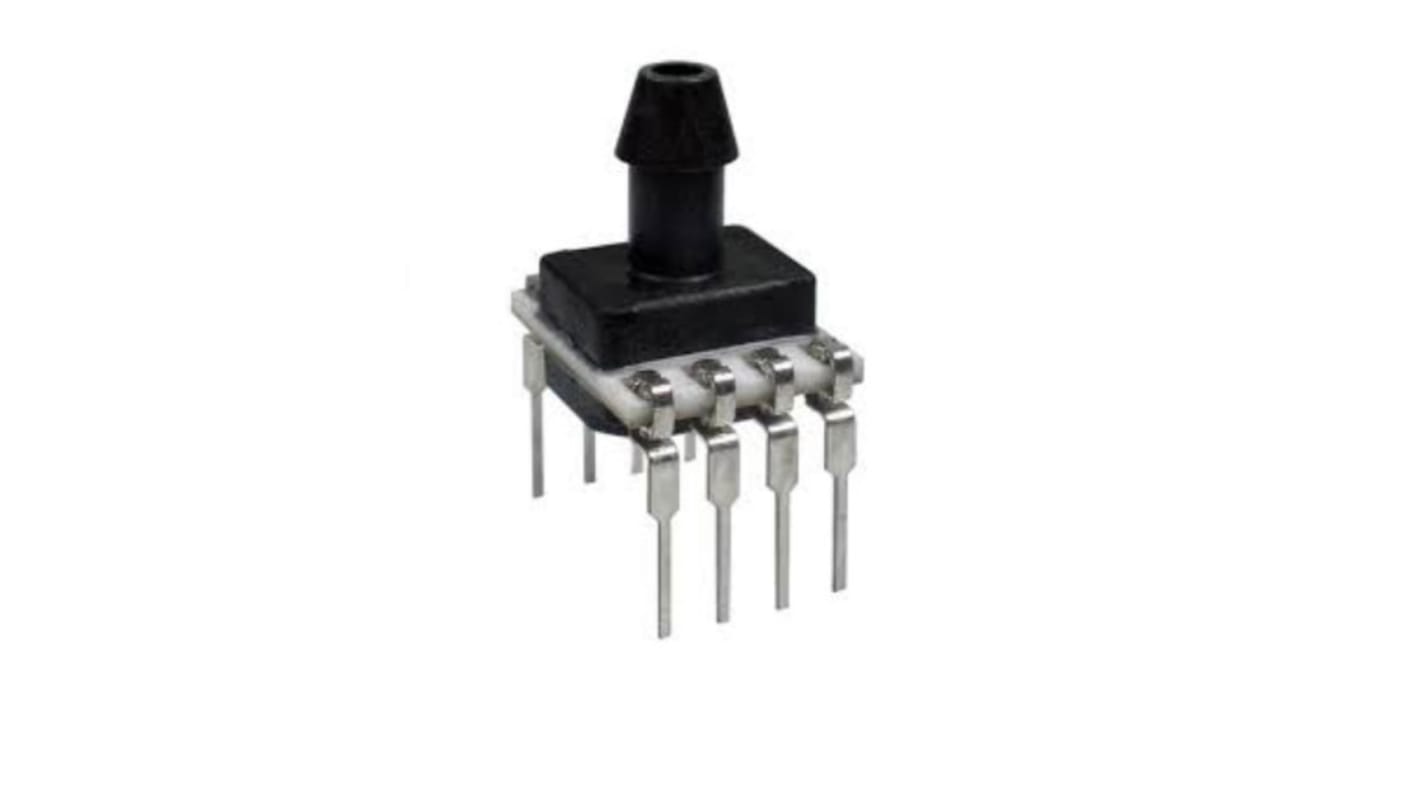

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 50 units)*
MYR18,023.40
FREE delivery for orders over RM 150.00
Temporarily out of stock
- Shipping from 21 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 50 - 50 | MYR360.468 | MYR18,023.40 |
| 100 - 150 | MYR352.538 | MYR17,626.90 |
| 200 + | MYR346.05 | MYR17,302.50 |
*price indicative
- RS Stock No.:
- 203-6354
- Mfr. Part No.:
- HSCMRRV001PDAA5
- Manufacturer:
- Honeywell
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Product Type | Differential Pressure Sensor | |
| Maximum Overload Pressure | 68.9kPa | |
| Sensor Type | Differential Pressure Sensor | |
| Mount Type | Surface | |
| Package Type | SMT | |
| Pin Count | 6 | |
| Minimum Supply Voltage | 3.3V | |
| Maximum Operating Pressure | 6.8 kPa | |
| Maximum Supply Voltage | 5V | |
| Accuracy | ±0.25 % | |
| Port Type | Dual Radial Barbed | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Maximum Output Voltage | 6V | |
| Height | 13.75mm | |
| Length | 10mm | |
| Width | 13.3mm | |
| Series | HSC | |
| Minimum Operating Pressure | 1psi | |
| Minimum Operating Temperature | -20°C | |
| Automotive Standard | No | |
| Minimum Output Voltage | -0.30V | |
| Select all | ||
|---|---|---|
Brand Honeywell | ||
Product Type Differential Pressure Sensor | ||
Maximum Overload Pressure 68.9kPa | ||
Sensor Type Differential Pressure Sensor | ||
Mount Type Surface | ||
Package Type SMT | ||
Pin Count 6 | ||
Minimum Supply Voltage 3.3V | ||
Maximum Operating Pressure 6.8 kPa | ||
Maximum Supply Voltage 5V | ||
Accuracy ±0.25 % | ||
Port Type Dual Radial Barbed | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Maximum Output Voltage 6V | ||
Height 13.75mm | ||
Length 10mm | ||
Width 13.3mm | ||
Series HSC | ||
Minimum Operating Pressure 1psi | ||
Minimum Operating Temperature -20°C | ||
Automotive Standard No | ||
Minimum Output Voltage -0.30V | ||
- COO (Country of Origin):
- CN
Honeywell HSC Series Differential Pressure Sensor, ±0.25% Accuracy, 3.3 to 5V Supply - HSCMRRV001PDAA5
This differential pressure sensor measures small pressure differences and provides a proportional electrical output for control and monitoring tasks. Designed for surface mounting with SMT packaging and dual radial barbed ports, it operates within typical environmental temperatures and supports low-voltage electronics. The device suits systems requiring Compact sensing with measurable analogue output across a defined supply range.
Features and Benefits:
• Differential output range from -0.30V to 6V provides wide signal span
• Accuracy ±0.25% delivers precise measurement performance
• Operates from 3.3V to 5V supply supports low-voltage systems
• Withstands overloads up to 68.9kPa for robust transient protection
• Functions between -20°C and 85°C for varied ambient conditions
• Accuracy ±0.25% delivers precise measurement performance
• Operates from 3.3V to 5V supply supports low-voltage systems
• Withstands overloads up to 68.9kPa for robust transient protection
• Functions between -20°C and 85°C for varied ambient conditions
Applications
• Suitable for HVAC airflow monitoring with barbed tube connections
• Ideal for low-pressure leak detection in pneumatic systems
• Used with control electronics in building automation panels
• Can be used for filter monitoring in ventilation units
• Suitable for laboratory apparatus requiring Compact sensors
• Ideal for low-pressure leak detection in pneumatic systems
• Used with control electronics in building automation panels
• Can be used for filter monitoring in ventilation units
• Suitable for laboratory apparatus requiring Compact sensors
What pressure range can the sensor detect?
It measures as low as 1 psi and operates up to 6.8kPa.
How many electrical connections does it require?
The device uses a 6-pin Interface for power and signal lines.
What mounting method is required for printed circuit integration?
It is intended for surface mounting using an SMT package style.
How are fluid connections MADE to the sensor?
Dual radial barbed ports accept small-bore tubing for differential inputs.
