STMicroelectronics High Side, OMNIFET: Fully Auto protected Power MOSFET Power Switch IC 3-Pin, SOT-223
- RS Stock No.:
- 920-6544
- Mfr. Part No.:
- VNN1NV04PTR-E
- Manufacturer:
- STMicroelectronics

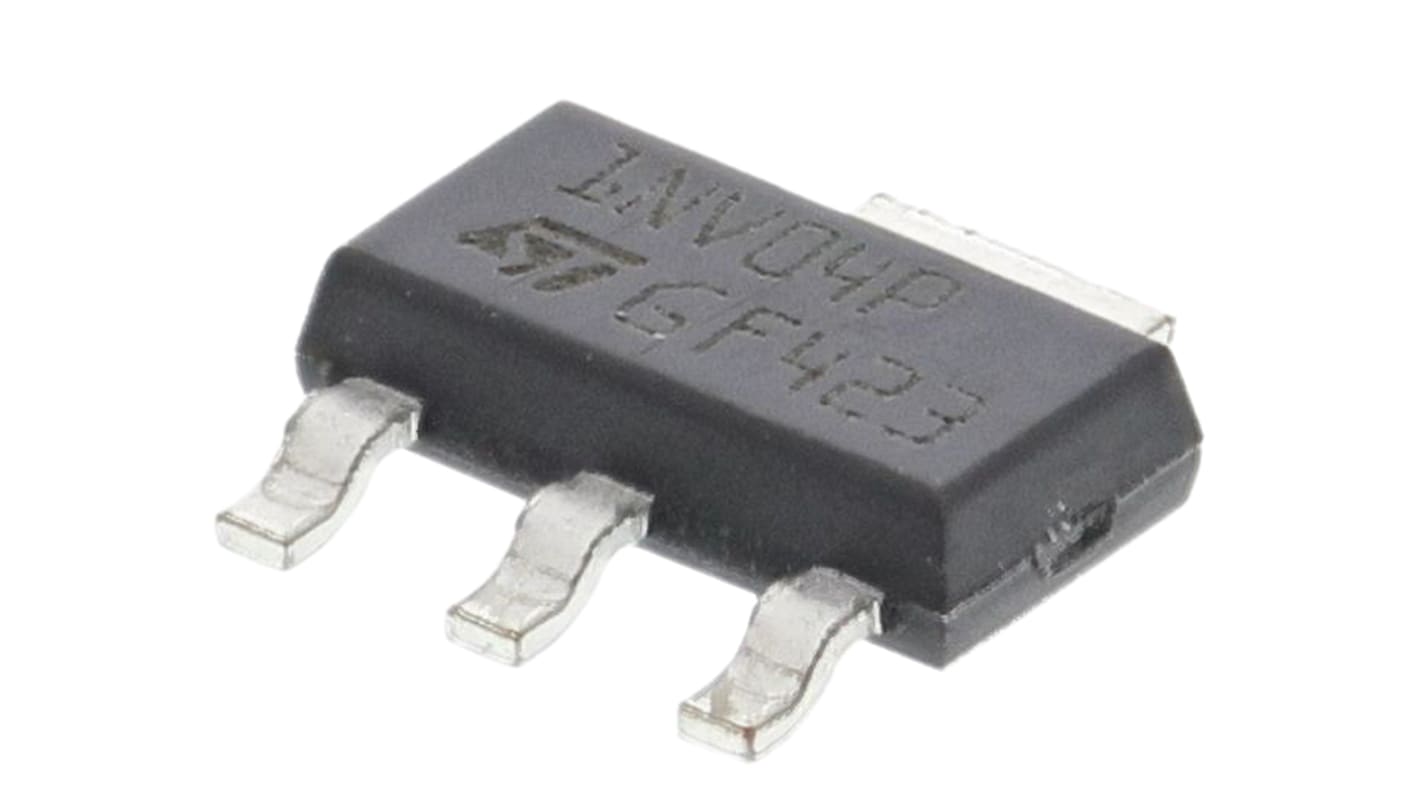

This image is representative of the product range
Subtotal (1 reel of 1000 units)*
MYR3,683.00
FREE delivery for orders over RM 150.00
In Stock
- Plus 6,000 unit(s) shipping from 10 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Reel* |
|---|---|---|
| 1000 + | MYR3.683 | MYR3,683.00 |
*price indicative
- RS Stock No.:
- 920-6544
- Mfr. Part No.:
- VNN1NV04PTR-E
- Manufacturer:
- STMicroelectronics
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | Power Switch IC | |
| Power Switch Type | OMNIFET: Fully Auto protected Power MOSFET | |
| Power Switch Topology | High Side | |
| Mount Type | Surface | |
| Package Type | SOT-223 | |
| Pin Count | 3 | |
| Maximum Supply Voltage | 40V | |
| Operating Current | 1.7A | |
| Maximum Operating Temperature | 125°C | |
| Minimum Operating Temperature | -40°C | |
| Height | 1.8mm | |
| Standards/Approvals | No | |
| Length | 6.7mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type Power Switch IC | ||
Power Switch Type OMNIFET: Fully Auto protected Power MOSFET | ||
Power Switch Topology High Side | ||
Mount Type Surface | ||
Package Type SOT-223 | ||
Pin Count 3 | ||
Maximum Supply Voltage 40V | ||
Operating Current 1.7A | ||
Maximum Operating Temperature 125°C | ||
Minimum Operating Temperature -40°C | ||
Height 1.8mm | ||
Standards/Approvals No | ||
Length 6.7mm | ||
Automotive Standard No | ||
OMNIFET Fully Auto-Protected Power MOSFET, STMicroelectronics
The OMNIFET series of fully auto-protected low-side drivers, are measured on the criteria of ruggedness and improved reliability. These solid state power switches are designed for inductive or resistive loads, especially in the automotive environment.
Linear current limitation
Thermal shut down
Short circuit protection
ESD protection
Integrated clamp
