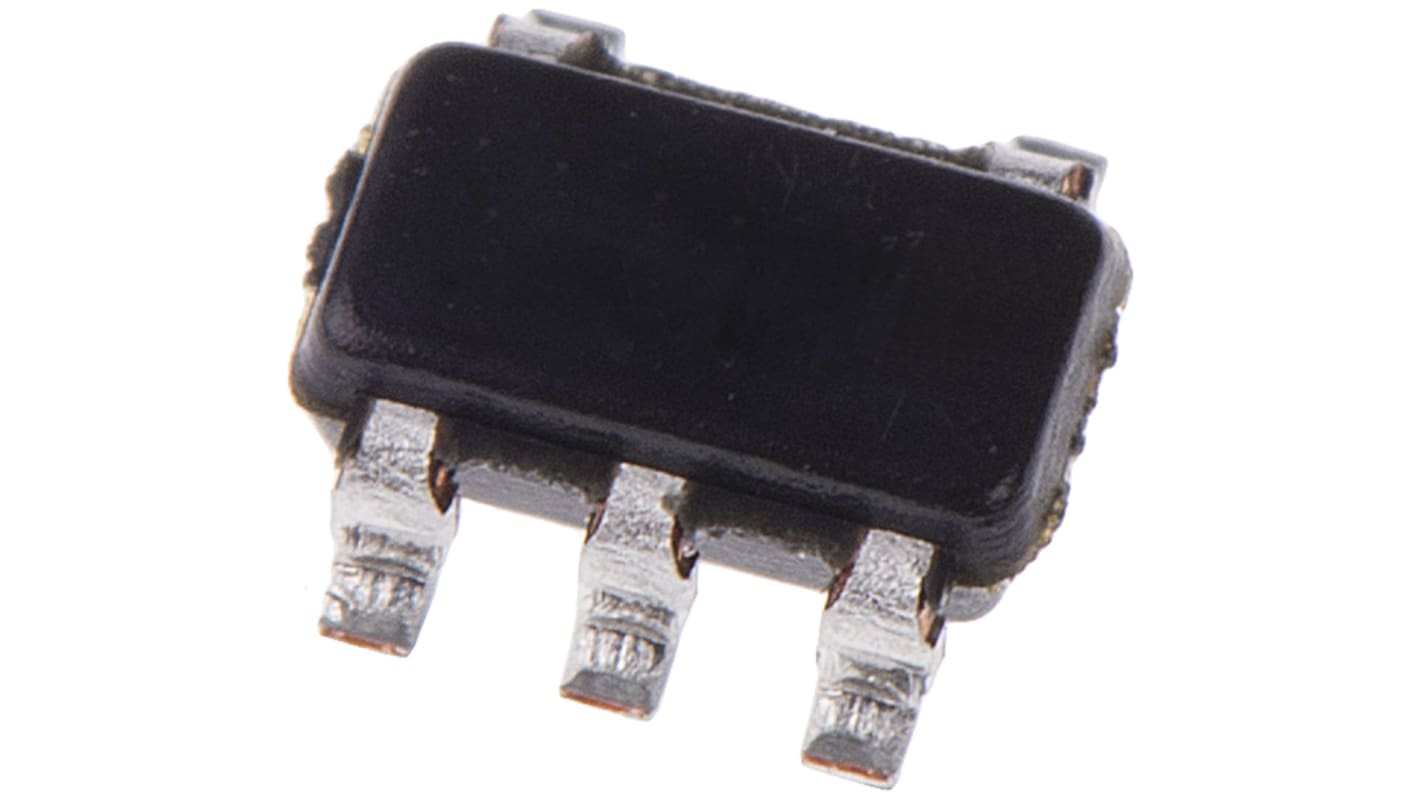

STMicroelectronics STMPS2141STRHigh Side, MOSFET Power Switch IC 5-Pin, SOT-23
- RS Stock No.:
- 880-5406
- Mfr. Part No.:
- STMPS2141STR
- Manufacturer:
- STMicroelectronics
Temporarily out of stock - back order for despatch 16/04/2025, delivery within 4 working days from despatch date
Added
Price Each (In a Pack of 10)
MYR5.415
| Units | Per Unit | Per Pack* |
| 10 - 740 | MYR5.415 | MYR54.15 |
| 750 - 1490 | MYR5.301 | MYR53.01 |
| 1500 + | MYR5.141 | MYR51.41 |
| *price indicative | ||
- RS Stock No.:
- 880-5406
- Mfr. Part No.:
- STMPS2141STR
- Manufacturer:
- STMicroelectronics
Legislation and Compliance
Product Details
STMPS21xx, Enhanced Single Channel Power Switches, STMicroelectronics
The STMPS21xx power distribution switches are intended for applications with expected heavy capacitive loads and short circuits.
90 mΩ high-side MOSFET switch
500 mA continuous current for STMPS2141, STMPS2151
1000 mA continuous current for STMPS2161
Thermal and short circuit protection with overcurrent logic output
Operating range from 2.7 V to 5.5 V
CMOS and TTL compatible enable input
Under Voltage Lockout (UVLO)
12 μA maximum standby supply current
500 mA continuous current for STMPS2141, STMPS2151
1000 mA continuous current for STMPS2161
Thermal and short circuit protection with overcurrent logic output
Operating range from 2.7 V to 5.5 V
CMOS and TTL compatible enable input
Under Voltage Lockout (UVLO)
12 μA maximum standby supply current
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Intelligent Power Switches, STMicroelectronics
Specifications
Attribute | Value |
|---|---|
| Power Switch Type | MOSFET |
| Power Switch Topology | High Side |
| Switch On Resistance | 160mΩ |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum Operating Current | 0.5A |
| Number of Outputs | 1 |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Pin Count | 5 |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 3 x 1.75 x 1.3mm |
