ROHM BM2LE040FJ-CE2 Low Side, Low Side Power Switch IC 8-Pin, SOP-J8
- RS Stock No.:
- 265-5391
- Mfr. Part No.:
- BM2LE040FJ-CE2
- Manufacturer:
- ROHM

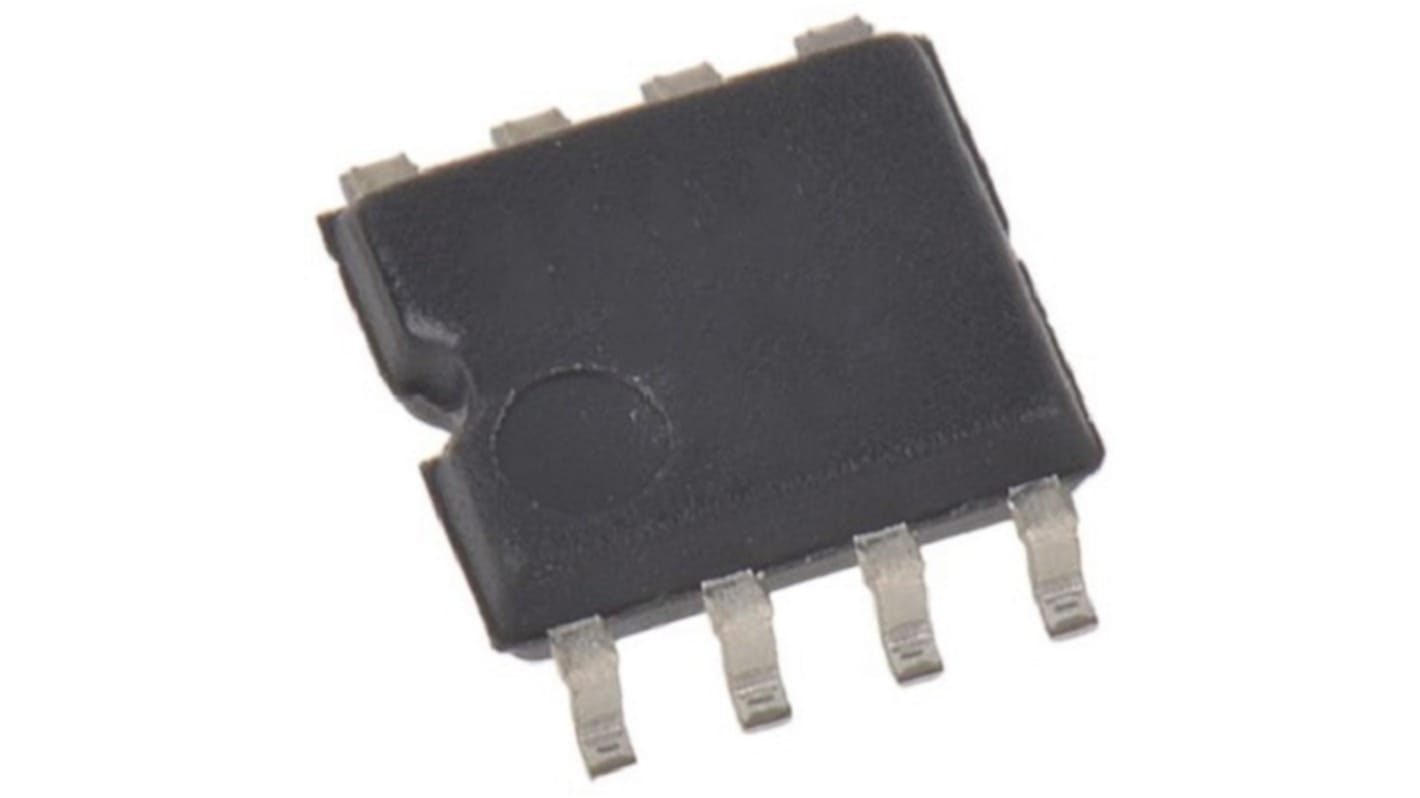

This image is representative of the product range
Get a bulk buy discount
Add 50 more to save 10%
View bulk pricing optionsSubtotal (1 pack of 5 units)*
MYR46.93
FREE delivery for orders over RM 150.00
In Stock
- Plus 2,400 unit(s) shipping from 09 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* | Saving |
|---|---|---|---|
| 5 - 45 | MYR9.386 | MYR46.93 | - |
| 50 - 95 | MYR8.438 | MYR42.19 | 10% |
| 100 - 245 | MYR6.772 | MYR33.86 | 27% |
| 250 - 995 | MYR6.636 | MYR33.18 | 29% |
| 1000 + | MYR4.808 | MYR24.04 | 48% |
*price indicative
- RS Stock No.:
- 265-5391
- Mfr. Part No.:
- BM2LE040FJ-CE2
- Manufacturer:
- ROHM
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Power Switch Topology | Low Side | |
| Power Switch Type | Low Side | |
| Product Type | Power Switch IC | |
| Switch On Resistance RdsOn | 0.04Ω | |
| Number of Outputs | 2 | |
| Package Type | SOP-J8 | |
| Pin Count | 8 | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -55°C | |
| Operating Current | 17.5A | |
| Maximum Operating Temperature | 150°C | |
| Length | 6mm | |
| Height | 1.65mm | |
| Standards/Approvals | RoHS | |
| Width | 4.9mm | |
| Series | BM2LE040FJ-C | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Power Switch Topology Low Side | ||
Power Switch Type Low Side | ||
Product Type Power Switch IC | ||
Switch On Resistance RdsOn 0.04Ω | ||
Number of Outputs 2 | ||
Package Type SOP-J8 | ||
Pin Count 8 | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -55°C | ||
Operating Current 17.5A | ||
Maximum Operating Temperature 150°C | ||
Length 6mm | ||
Height 1.65mm | ||
Standards/Approvals RoHS | ||
Width 4.9mm | ||
Series BM2LE040FJ-C | ||
Automotive Standard AEC-Q100 | ||
The ROHM 1ch low side switch IC for 12V automotive applications. It has built-in over current protection (OCP), dual TSD and active clamp function. It is equipped with output diagnostic function for TSD.
Built in dual TSD
Built in over current protection function (OCP)
Built in active clamp function
Direct control enabled from CMOS logic IC
